Werkzeuge

Es werden einige allgemeine Werkzeuge verwendet, um an diesem Gerät zu arbeiten. Du wirst nicht jedes Werkzeug für jeden Vorgang benötigen.

Troubleshooting

If you are having difficulties with the Lenovo Yoga 710-15ISK, try referring to the troubleshooting page.

Background and Identification

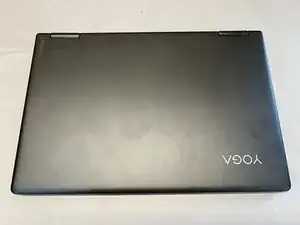

The Lenovo Yoga 710-15ISK is the 15.6 inch model of the Lenovo Yoga 710 laptop released in 2016. The Lenovo Yoga line are convertible laptops, with 360 degree hinges connecting the base and the touchscreen allowing the user to switch between laptop and tablet modes as necessary. It has a black chassis with “Lenovo” written on the back of the screen and “Yoga” in raised lettering. The model name and number can be found on the underside of the laptop, on the same sticker as the trademark and copyright information.

With a dual core 2.3 GHz CPU, the 710 is not as fast as it was when it released in 2016, especially compared to modern laptops. At just over 4 pounds, it is substantially heavier than most regular tablets, and should be handled with care. It also leaves its keyboard exposed when in tablet mode, so be sure that any surface you leave it on is clean and smooth to avoid dirtying or damaging it while in use.

Technical Specifications

General:

  • Operating System: Windows 10 Home 64-bit
  • Webcam: Integrated
  • Color: Black

Display:

  • Size: 15.6 inches
  • Resolution: 1920x1080p
  • Touchscreen: Yes
  • Type: ISP

Processor:

  • CPU: Intel Core i5 6200u
  • Speed: 2.3 GHz/ 2.8 GHz turbo
  • Graphics: Intel HD graphics 520 (integrated)

Storage:

  • Size: 256 GB
  • Type: m.2 SSD

Memory:

  • Size: 8 GB
  • Speed: 2133 MHz
  • Max Supported Size: 16 GB
  • Technology: DDR4 SDRAM
  • Form Factor: SO-DIMM 260-pin
  • Slots: 1

Dimensions:

  • Width: 14.1 in
  • Depth: 9.6 in
  • Height: 0.7 in
  • Weight: 4.19 lb

Battery:

  • Capacity: 52 wH

Connections:

  • Ports: 2 x usb 3.0, 1 x Micro-HDMI, 1 x headphone/microphone combo
  • Memory Card Reader: 4-in-1 SD card reader

Source: https://specspro.net/laptops/3326-lenovo...


Additional Information

Product page at lenovo.com.

Support page with user manuals.

Official forums for the Lenovo Yoga series of laptops.
