Reparaturanleitungen

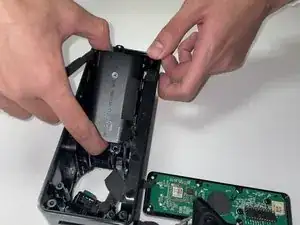

Battery

Battery

 en

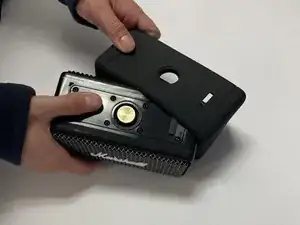

Button

Button

 en

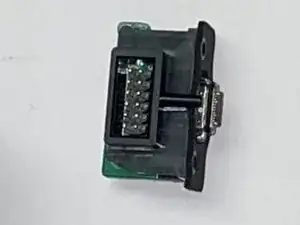

Charging Port Bay

Charging Port Bay

 en

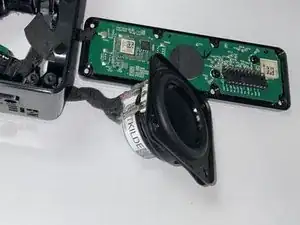

Main Speaker

Main Speaker

 en

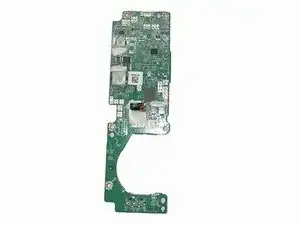

Motherboard

Motherboard

 en

Werkzeuge

Es werden einige allgemeine Werkzeuge verwendet, um an diesem Gerät zu arbeiten. Du wirst nicht jedes Werkzeug für jeden Vorgang benötigen.

Troubleshooting

Check out the troubleshooting page if you're having issues with your Marshall Emberton to identify and fix typical issues.

Background

The Marshall Emberton is one of the speakers that is manufactured by the Marshall Zound Industry which has been around for 60 years and counting. The Emberton is the first from the Emberton series that has been produced by Marshall. The Emberton is a grab-and-go type of speaker with its quick charging time of about 30 minutes which can give up to 5+ hours of battery life. The Marshall Emberton is a moderately priced everyday Bluetooth speaker with a novelty design.

Identification

The Marshall Emberton is a portable Bluetooth speaker. The speaker is not to be confused with Marshall Emberton II. The Marshall Emberton weighs .7kg with dimensions of 2.68 x6.30x2.99in. This device comes in a variety of colors such as black, black and brass, cream, and forest. On the top of the speaker, there is a multidirectional knob used to navigate between volume and tracks. The speaker is a 360-degree speaker, so it has speakers on both sides of the device. This speaker is easily identifiable due to its small stature and its iconic Marshall design.

Technical Specification

  • Physical Unit:
    • Dimensions: 2.68 x 6.30 x 2.99 in (L x W x H)
    • Weight: 1.44 lb
    • Water Resistance: IPX7
    • Colorways: Black, Black and brass, Cream, Forest
  • Audio Specification:
    • Frequency Response: 60 Hz - 20 kHz
    • Driver Type: Dynamic
    • Frequency Range: 60 - 20,000 Hz
    • Drivers: Two 2” 19 W full range and Two passive radiators
    • Stereos/Mono: Stereo
    • Maximum Sound Pressure Level: 87 dB SPL @ 1 m
    • Cabinet Principle: Sealed with passive radiator
    • Power Amplifier: Two 10 W Class D amplifiers
  • Battery:
    • Battery Type: Built-in, rechargeable Li-ion battery
    • Play Time: 20+ hours
    • Quick Charging: 20-minute charge gives 5 hours of playtime
    • Charge Time: 3 hours
  • Controls and Connectivity:
    • Multi-directional control knob: play/pause, skip track, volume control, on/off, Bluetooth pairing button, battery indicator
    • Bluetooth Range: 30 ft (10 m)
    • Wireless Connectivity: Bluetooth 5.0
  • Included In The Box:
    • Box Contents: Emerton Speaker, user manual and safety information, USB-C charging cable
