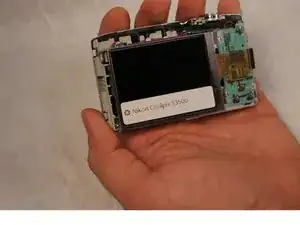

Back Panel Disassembly
Werkzeuge
Es werden einige allgemeine Werkzeuge verwendet, um an diesem Gerät zu arbeiten. Du wirst nicht jedes Werkzeug für jeden Vorgang benötigen.
Background and Identification
The Nikon Coolpix S3500 is a compact digital camera produced as part of Nikon’s Coolpix line. The Coolpix series includes superzoom, bridge, travel-zoom, miniature compact, and waterproof/rugged cameras. Nikon Coolpix cameras are organized into five different model lines. A camera’s line is indicated by the first letter in the camera’s model name. Coolpix cameras include the A series, the AW (all weather) series, the L (life) series, the P (performance) series, and the S (style) series. Nikon’s “all-weather” Coolpix camera is designed to be waterproof up to 100 meters, freezeproof, and shockproof. Coolpix cameras generally include autofocus features, LCD screens, superzoom functionality, and Wi-Fi connectivity.
The Nikon Coolpix S3500 is part of the S (Style) series and features 20.1-megapixels. It has a focus range of 50 centimeters. Users can store media in SD/SDHC/SDXC memory cards. The S3500 includes a NIKKOR glass lens with lens-shift vibration reduction that helps minimize the blur caused by camera shake. The camera’s ‘Subject Tracking’ function locks onto moving subjects to keep the focus where users want it to be.

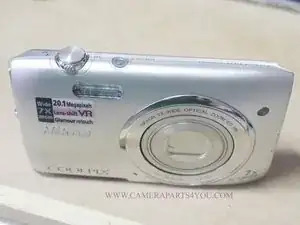

Nikon cameras can be identified by the name “Nikon” generally printed in white font directly above the camera’s lens assembly. Coolpix cameras generally include the name “Coolpix” printed in capital letters on the front of the device. Nikon Coolpix cameras commonly include a sticker or text with identifying information located either on the side of the lens or on the rear of the device.
Technical Specifications
Effective pixels: 20.1 million
Image sensor: 1/2.3-in. type CCD; total pixels: approx. 20.48 million

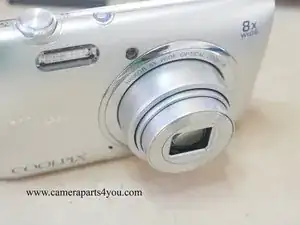

Lens: NIKKOR lens with 7x optical zoom; 4.7-32.9 mm (35mm [135] format equivalent: 26-182 mm); f/3.4-6.4
Digital zoom magnification: Up to 4x (35mm [135] format equivalent: approx. 728 mm)
Vibration Reduction (VR): Lens shift
Motion blur reduction": Motion detection (still pictures)
Focus range: [W]: Approx. 50 cm (1 ft 8 in.) to ∞, Macro mode: approx. 5 cm (2 in.) to ∞
Monitor: 6.7 cm (2.7-in.), approx. 230k-dot, TFT LCD monitor with anti-reflection coating
Storage media: SD/SDHC/SDXC memory cards
Image size (pixels): 20M (High) [5152 x 3864], 20M [5152 x 3864], 10M [3648 x 2736], 4M [2272 x 1704], 2M [1600 x 1200], VGA [640 x 480], 16:9 (14M) [5120 x 2880]
ISO sensitivity (Standard output sensitivity): ISO 80-1600, ISO 3200 (Manual setting is enabled in Auto mode)
Interface: Hi-Speed USB
Power sources: EN-EL19 Rechargeable Li-ion Battery (supplied), EH-70P Charging AC Adapter (supplied), EH-62G AC Adapter (optional), MH-66 Battery Charge (optional)
Battery life of still shooting: Approx. 220 shots with EN-EL19 battery
Dimensions (W x H x D): Approx. 96.8 x 57.8 x 20.5 mm (3.9 x 2.3 x 0.9 in.) excluding projections
Weight: Approx. 129 g (4.6 oz) with battery and SD memory card
Supplied accessories: EN-EL19 Rechargeable Li-ion Battery, EH-70P Charging AC Adapter, UC-E6 USB Cable, Camera Strap, ViewNX 2 CD, Reference Manual CD
Optional accessories: EH-62G AC Adapter, MH-66 Battery Charger
