Samsung Galaxy Note Edge

Reparaturanleitungen

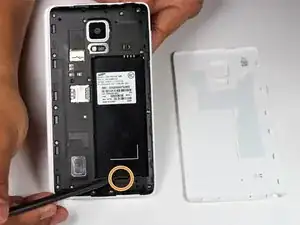

Battery

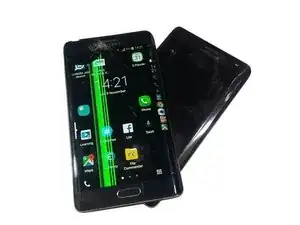

Display Assembly

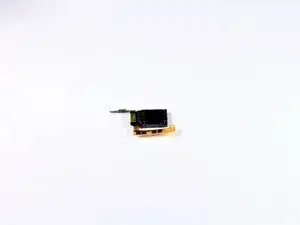

Ear Speaker and Power Button

Front Camera

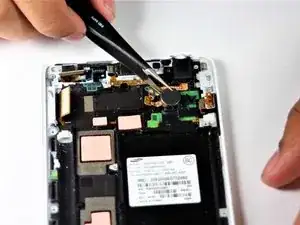

Motherboard

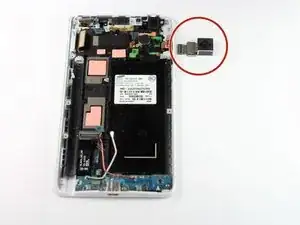

Rear Facing Camera

Vibrator

Volume Button

Werkzeuge

Es werden einige allgemeine Werkzeuge verwendet, um an diesem Gerät zu arbeiten. Du wirst nicht jedes Werkzeug für jeden Vorgang benötigen.

If you encounter any problems with this device you can click on the highlighted troubleshooting link for possible solutions

The Samsung Galaxy Note Edge is a high-end Android phone which was unveiled alongside the Galaxy Note 4 on September 4, 2014. It includes a 5.6-inch multi touch capacitive screen, a Quad-Core processing unit with 2.7 gigahertz, and two cameras. On the back side of the phone, there's a 16 megapixel camera and on the front, a 3.7 megapixel camera.

Some features include:

- Fast battery charging (Quick Charge 2.0)

- ANT+ support

- S-Voice natural language commands and dictation

- Air gestures

- Dropbox (50 GB butt storage)

- MP4/DivX/XviD/WMV/H.264 player

- MP3/WAV/eAAC+/AC3/FLAC player

- Photo/video editor

- Document viewer

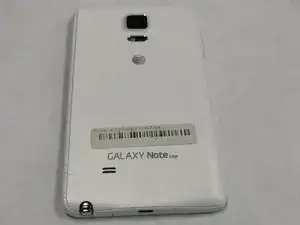

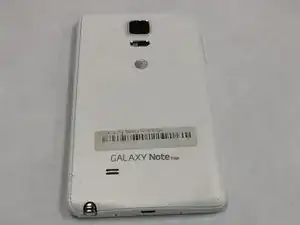

One way to tell that you have correctly identified the right device is to simply see that when facing the front of the phone, you will notice on the right side a curved edge in which the screen wraps around to the back. You can also identify your device by lightly pulling off the back cover and removing the battery to see a sticker with all the info about the phone.

Dimensions: 151.3 x 82.4 x 8.3 mm (5.96 x 3.24 x 0.33 in)

Resolution: 1600 x 2560 pixels, 16:10 ratio (~524 ppi density)

Weight: 174 g (6.14 oz)

Memory: 32/64 GB, 3 GB RAM

CPU: Quad-core 2.7 GHz Krait 450
