Reparaturanleitungen

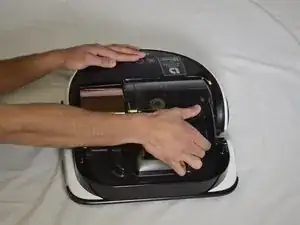

Back Panel

Back Panel

 en
Battery

Battery

 en

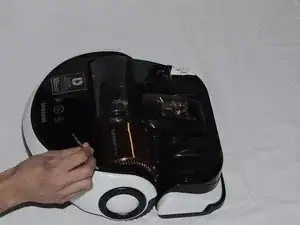

Bumper Sensor

Bumper Sensor

 en

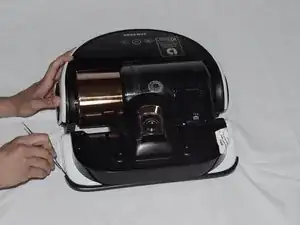

Dustbin

Dustbin

 en

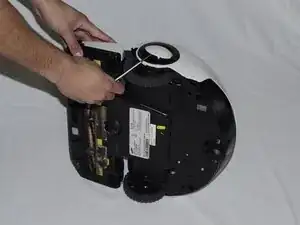

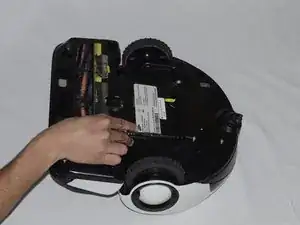

Wheel

Wheel

 en

Werkzeuge

Es werden einige allgemeine Werkzeuge verwendet, um an diesem Gerät zu arbeiten. Du wirst nicht jedes Werkzeug für jeden Vorgang benötigen.

Background and Identification

The Samsung Powerbot R9250 is a robotic vacuum cleaner released in 2018 by Samsung Electronics. It is part of the R9000 series of Powerbots and is a higher-end device. The R9250 has a suction power of 30 watts, a 90 minute battery life, a 12.2-inch brush, and a .7 L dust bin. Moreover, the R9250 has Wi-Fi connectivity, meaning that it can be controlled via voice control and the Amazon Alexa.

Although a vacuum cleaner, the R9250 is distinct from others due to its circular design and its robotic operation. The hands-free cleaning is accomplished by the R9250 through its onboard camera and its multiple sensors that allow the vacuum cleaner to determine the ideal cleaning path for multi-room cleaning, while avoiding obstacles along the way. Moreover, users can see where all the Powerbot has cleaned through the coverage map viewed through Samsung’s Smart Home Application. Users can also schedule the Powerbot to clean through this application.

Technical Specifications

  • Key Features:
    • Wi-Fi Connectivity: Yes
    • Visionary Mapping™: Yes
    • Point Cleaning: Yes
    • Brush Type: Combo: Yes
    • Remote: Yes
    • EasyPass™ Wheels: Yes
    • FullView Sensor™Yes
    • Suction: Up to 30W
    • Bagless: Yes
    • Dust Capacity: 0.7 L
    • Brush Width: 12.2"
    • Filter (Exhaust): Yes
    • CycloneForce™ Technology: Yes
    • Multi-Surface Cleaning: Yes
    • Sensor: FullView Sensor™
    • Brush Type: Combo
    • Navigation: Visionary Mapping Plus
    • Cliff Sensor: Yes
    • Auto Docking: Yes
  • Convenience:
    • Cleaning Speed: 32cm/sec
    • Dust Sensor: Yes
    • Display: 7-Segment
    • Additional Tools: Cleaning Tool, Extra Filter, Magnetic Tape
    • Convenience Feature: Point Cleaning
    • Running Time: ≤ 90 MIN
    • Running Time (Max): ≤ 90 MIN
    • Running Time (Min): ≤ 30 MIN
    • Washable Filter: Yes
  • Weight & Dimensions:
    • Product Dimensions: 14.88" x 5.31" x 14.25"
    • Shipping Dimensions: 7.2" D x 20.9" H x 18.7" W
    • Product Weight: 10.5 lbs
    • Shipping Weight: 16.5 lbs

Additional Information

Product Page

User Manual

Full Specifications

Comparison of Powerbot 9000 series
