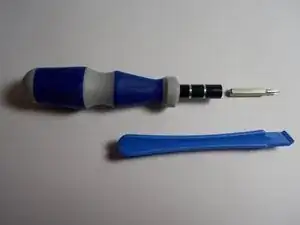

Werkzeuge

Es werden einige allgemeine Werkzeuge verwendet, um an diesem Gerät zu arbeiten. Du wirst nicht jedes Werkzeug für jeden Vorgang benötigen.

Background and Identification

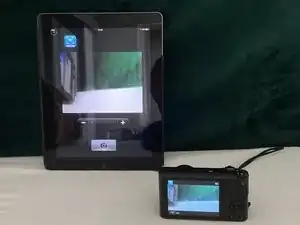

The Samsung WB150F is a 14.2 megapixel camera with 18x zoom, an optically-stabilized lens and is capable of 720p HD video recording. The WB150F is equipped with Wi-Fi allowing a user to email photos from any Wi-Fi location or share them on social networks such as Facebook and Twitter. It also has advanced A/S/M shooting modes for the more experienced user, auto modes for the beginner, Live Panorama mode and a range of creative filters and effects. The camera was well liked by consumers, with 92% of users recommending the product (135 out of 146). Unfortunately the product is now discontinued by the manufacturer, but replacement parts and the camera may still be purchased on eBay or Amazon. Samsung has since released a newer version of this camera in the WB250F.

Troubleshooting Page

Click here to solve simple problems with your device.

Specifications

Developer: http://www.samsung.com/us/

Image Sensor

  • 1/2.3” (7.6 mm) CCD
  • 14.2 megapixels

Lens

  • Schneider-KREUZNACH 18x Zoom Lens
  • 72 mm (35mm film equivalent)

Display

  • TFT LCD, 3”, 460k dots

Focusing

  • TTL Auto Focus(Centre AF, Multi AF, Tracking AF, Face Detection AF, Face Recognition AF, Selection AF) * Manual Focus

Shutter Speed

  • Smart Auto : 1/8 ~ 1/2000 sec., Program : 1 ~ 1/2000 sec., Night : 8 ~ 1/2000 sec., Manual : 16 ~ 1/2000 sec.

Flash

  • Auto, Auto & Red-eye reduction, Fill-in flash, Slow sync, Flash Off, Red-eye fix

Range

  • Wide : 0.3m ~ 3.38m (ISO Auto), Tele : 0.5m ~ 1.51m (ISO Auto)

Recharging Time

  • Approximately 4 seconds

White Balance

  • Auto WB, Daylight, Cloudy, Fluorescent_H, Fluorescent_L, Tungsten, Custom, K

Storage

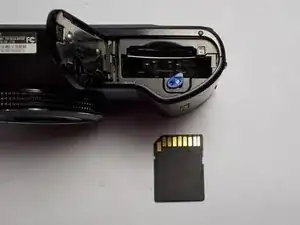

  • Internal memory : 18MB External Memory : SDSC (up to 2GB guaranteed), SDHC (up to 32GB guaranteed), SDXC (up to 64GB guaranteed)

File Format

  • Still Image : JPEG (DCF), EXIF 2.21, DPOF 1.1, PictBridge 1.0 * Movie Clip : MP4 (Video : MPEG4, AVC / H.264, Audio : AAC)

Image Size

  • 14M : 4320 x 3240 pixels, 12M P : 4320 x 2880, 10M W : 4320 x 2432, 10M : 3648 x 2736, 8M (1:1) : 2832 x 2832, 5M : 2592 x 1944, 3M : 1984 x 1488, 2M W : 1920 x 1080, 1M : 1024 x 768

Digital Output Connector

  • USB 2.0

Audio

  • Microphone : Mono Internal Speaker : Mono

Video Output

  • AV : NTSC, PAL (User selectable)

DC Power Input

  • 5V

Dimension

  • (WxHxD) 106.5 x 59.9 x 23.4 (32.2) mm

Weight

  • 188.2g (without battery and memory card media)

Power Source Type

  • Rechargeable battery : SLB-10A Connector Type : micro USB (5 pin)

Specifications Reference
