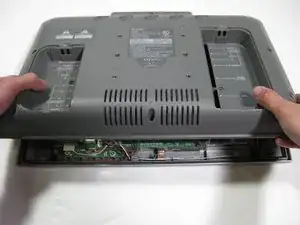

Back Case
Werkzeuge
Es werden einige allgemeine Werkzeuge verwendet, um an diesem Gerät zu arbeiten. Du wirst nicht jedes Werkzeug für jeden Vorgang benötigen.
Troubleshooting
Sharp Aquos LC13B2UA Troubleshooting
Description
The Aquos is a 13-inch LCD display created by Sharp, which includes ASV (Advanced Super View) technology, and built in 181 Channel Tuner. A few specifications include:
Panel Type: Active Matrix 13” LCD
Pixel Resolution: 480 x 640
Video System: NTSC/PAL/SECAM
Audio System: Two 2.1W Speakers
Lamp Type/Life: Edge-Light System, CFL / 60,000 hours
The Sharp Aquos’ demensions are16 57/64” by 13 5/16” with stand, and weights 9.5 pounds. Standard warranty includes a limited 1 year parts and labor.
Identification
There are two methods of identifying the model of the Sharp Aquos LC-13B2UA:
A. On the back of the television between the silver tilt mount in the center of the tv, there is a panel containing Model, Serial Number, and manufactured date. The model number should read: LC-13B2UA
B. If the tv is mounted and you are unable to remove the television from the wall:
The model number and serial number are accessible via the service menu.
WARNING: The service menu is intended for Sharp Technicians only, follow these steps:
- While the LCD is on, unplug the power cable
- Hold the “Input” and “VOL (-)” buttons on the television, then re-plug the cable
- When the TV powers up a “k” will appear in brackets
- Press and hold the “VOL (-)” and “CH (-)” buttons on the remote and release
- The service menu will appear on the tv
-To turn off service menu, turn off the tv set
