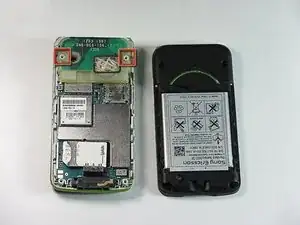

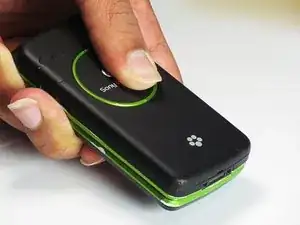

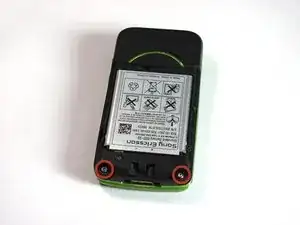

Back Case
Werkzeuge
Es werden einige allgemeine Werkzeuge verwendet, um an diesem Gerät zu arbeiten. Du wirst nicht jedes Werkzeug für jeden Vorgang benötigen.
Troubleshooting
Troubleshoot problems with the Sony Ericsson TM506 cell phone with our troubleshooting guide
Identification and Background
Identifying the Phone

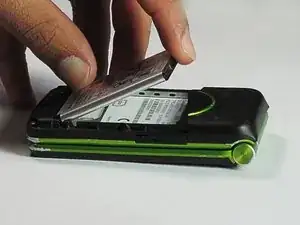

The best way to identify this phone is to remove the battery by following the Battery Installation guide and looking at the sticker beneath the battery. At the very top of this sticker should read Sony Ericsson TM506. If it does not, the phone is not a Sony Ericsson TM506.
External
The Sony Ericsson TM506 is a small, light flip phone with either a green and black or silver and black color scheme. It has a keyboard, a LCD screen, and a speaker on the inside. On the outside, it has a smaller LCD screen and a camera.
Technical Specifications
- Dimensions: 95 x 48 x 17 mm
- Weight: 96g
- Memory: 35 MB (Internal)
- Data: HSDPA, 3.6Mbps
- Display: 240 x 320
- Camera: 2MP, 1600 x 1200
- Battery: 9 hour call time (2G) / 3 hour call time (3G)
