Background and Identification

The Toro Walk-Behind Mowers model 21199HD is a walk-behind lawn mower (serial number 400000000 - 404313999 ). It is labeled as one of Toro’s “TimeMaster” lawn mowers. It features a bagger, a blade brake, a foldable handle, and tool-free adjustments. It can operate with or without the clipping-collection bag, or as a mulcher.

The 21199HD model is a self-propelled mower with a 223 cc Briggs and Straton four-cycle gasoline-powered engine. The engine produces 10 foot-pounds of torque. Toro recommends using 18 fluid ounces of 30W or 10W-30 (SAE 30) engine oil for each full tank of gasoline. The lawn mower’s fuel tank can hold up to 0.3 gallons of gasoline and 20 fluid ounces of motor oil. The 21199HD model is CARB compliant, meaning that the lawn mower meets the California Air Resources Board’s rules and regulations for air pollution.

This lawn mower includes two cutting blades and has two handlebar positions for operator comfort. It has seven different height options between 1.25- and 4.25-inches high and trims a swath of grass 30-inches wide.

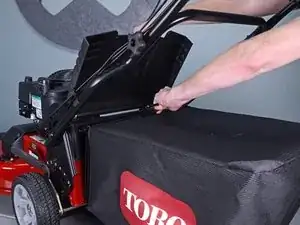

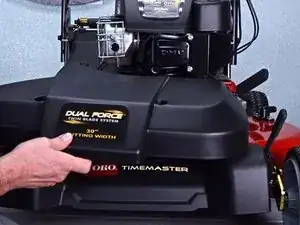

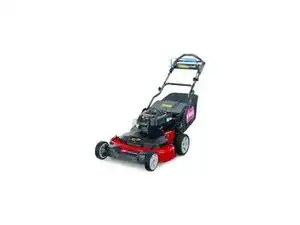

The 21199HD model can be identified by its red mower deck and black engine cover, handle, and clipping bag. The name “Toro” is printed in white font with a red background in several places around the body of the mower, including on the side of the clippings bag and at the front of the mower’s deck. The mower also includes the name “TimeMaster” printed in white capital letters on the front of the mower’s deck. It includes two 10-inch rear wheels and two 8-inch front wheels.

Technical Specifications

Dimensions:

  • Assembled Depth (in.): 65.7 in
  • Assembled Height (in.): 44.3 in
  • Assembled Width (in.): 32.2 in
  • Blade Length (in.): 15.4 in
  • Cutting Width: 30 inches
  • Front Wheel Size (in.): 8
  • Mower Deck Width: 30 in
  • Rear Wheel Size (in.): 10

Details:

  • Assembly Required: Yes
  • CA (CARB) Compliant: CARB Compliant
  • Cutting Height Options: 7-position
  • Cutting Options: Bag, Mulch, Side-Discharge
  • Deck Material: 13 Gauge Steel
  • Deck Type: Stamped
  • Drive Type: Rear-wheel Drive
  • Engine Displacement (cc): 223
  • Engine Make: Briggs and Stratton
  • Engine Torque (ft.-lb.): 10
  • Features: Bagger, Blade Brake, Deck cleanout, Foldable handle, Mulching Lawn Mower, Tool-free adjustments
  • Fuel Tank Capacity (gallons): .3
  • Included: Engine oil
  • Lawn Mower Type: Self-Propelled Lawn Mower
  • Maximum Cutting Height (in.): 4.25
  • Minimum Cutting Height (in.): 1.25
  • Mower Size Type: Wide Area Mower
  • Number of Blades: 2
  • Number of Handlebar Positions: 2
  • Oil Capacity (oz.): 20
  • Power Type: Gas
  • Product Weight (lb.): 140 lb
  • Rear Wheel Height: High Wheel
  • Recommended Oil Type: SAE 30
  • Recommended Terrain: Sloped, Uneven
  • Size of Yard: 1/2 - 1 Acre
  • Start Type: Pull Cord
  • Walk-Behind Mower Type: Self Propelled

Manufacturer Warranty: 3-Year Full Warranty, 3-Year Guaranteed to Start
