Werkzeuge

Es werden einige allgemeine Werkzeuge verwendet, um an diesem Gerät zu arbeiten. Du wirst nicht jedes Werkzeug für jeden Vorgang benötigen.

Troubleshooting

To find solutions to common problems with your Toshiba Satellite L15W-B1208X, visit the troubleshooting page.

Background and Identification

The Toshiba Satellite L15W-B1208X is an affordable 2-in-1 notebook PC released by Toshiba in 2015 and subsequently discontinued in the United States the following year as Toshiba removed itself from the United States consumer laptop market. The Toshiba Satellite L15W-B1208X was an underwhelming selling laptop that has caused there to be little information about the device online. This is also likely due to Toshiba stepping away from consumer laptops in the United States.

This laptop features 360-degree rotating hinges with a touchscreen and only weighs 2.9 pounds. With a screen size of 11.4 inches and a battery life of over 4 hours, the laptop is very portable and provides easy use while not at a desk. The Toshiba Satellite L15W-B1208X has a plastic exterior and features Bluetooth connectivity, one USB 3.0 port, one USB 2.0 port, and one HDMI port.

The Toshiba Satellite L15W-B1208X was the last of the Satellite production line in the United States and currently sells for $400 with no information to be found about the original price of the laptop.

Sources: Toshiba Satellite L15W-B1208X Info, Toshiba Info

Specifications

Operating System: Windows 10 Home

Processor and Graphics:

  • Intel Pentium N3540 Processor (2M Cache up to 2.66GHz)
  • Mobile Intel HD graphics (shared graphics memory)

Memory: (unupgradable) 4GM DDR3L

Storage: 500 GB Serial ATA hard disk drive

Display:

  • 11.6 diagonal widescreen TruBrite TFT display (HD)
    • Touchscreen
    • Resolution: 1366x768 (native) resolution
    • 16:9 aspect ratio
    • Led backlit
  • Additional wireless display support

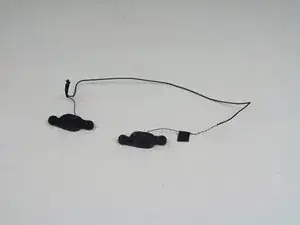

Sound: Built-in stereo speakers

Input devices:

  • Raised tile keyboard
  • One touch function keys
  • Touchpad

Communications:

  • HD webcam with TruTalk™ dual microphones
  •  Wi-Fi Wireless networking (801.11b/g/n)
  • Bluetooth 4.0 max

Expandability:

  • Memory card reader
    • UHS-II secure Digital, Secure Digital High Capacity
    • Secure Digital Extended Capacity
    • [Shared Slot] Mini SD, Micro SD, Multi Media Card

Ports:

  • Video
    • HDMI
  • Audio
    • [Shared Slot] Headphones/microphone
  • Data
    • 1 USB 3.0
    • 1 USB 2.0
  • Security
    • Slot for security lock

Additional Information

Official Toshiba/Dynabook Satellite L15W-B1208X support page

Toshiba Satellite L15W-B1208X Disassembly Video

Toshiba Satellite Series Wikipedia Page
