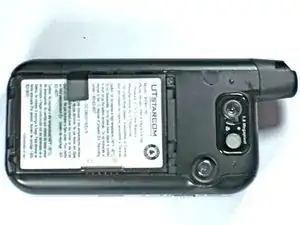

Battery
Werkzeuge
Es werden einige allgemeine Werkzeuge verwendet, um an diesem Gerät zu arbeiten. Du wirst nicht jedes Werkzeug für jeden Vorgang benötigen.
Background and Identification
Designed by HTC under the codename "Apache," the UTStarcom was first released as the Sprint PPC 6700 in October 2005. The XV6700 model is Verizon's Apache version that became available in February 2006. The XV6700 features a full slide-out QWERTY keyboard, Windows Mobile 5, Wi-Fi, Bluetooth, and EV-DO, a protocol for high-speed wireless broadband. The smartphone also has a 1.3-megapixel camera and a speakerphone. The repair of this phone will require a few everyday household tools.
The black and silver XV6700 is easily distinguished from Sprint's all-silver version. At 5.2" x 2.3' x 1.0", the XV6700 cannot be considered a compact device, but it will easily fit into a purse or backpack. The updated version, the XV6800, added a higher-resolution camera, GPS, scroll wheel, and additional hard keys.
Troubleshooting
If you need help with the UTStarcom XV6700, check the troubleshooting guide.
Specifications
General
Brand: Verizon
Manufacturer: HTC
Hardware-Designer: HTC
Project Codename: HTC Apache
Model ID: PA10A
Release-Date: February, 2006
Predecessor Model: Verizon XV6600 (HTC Harrier)
Physical Attributes
Dimensions (width x height x depth): 2.3" x 4.3" x 1"
Mass: 150 grams (battery included)
Software Environment
Embedded Operating System: Microsoft Windows Mobile 5.0 for Pocket PC Phone Edition
Operating System Kernel: Windows CE 5.1.1702
Memory/Storage capacity
RAM type: SDRAM
RAM capacity: 64MB, 49.42MB accessible
ROM type: Flash EEPROM
ROM capacity: 128MB, including 43.5MB user-accessible non-volatile storage

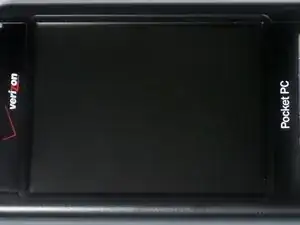

Display
Display Type: color transflective TFT display
Display Diagonal: 2.8 "
Display Resolution: 240 x 320 (76800 pixels)
Audio-Subsystem
Audio Channel(s): stereo sound
Digital/Analog Converter (Playing): 16 bit resolution
Microphone(s): mono sound
Loudspeaker(s): mono sound
Audio-Output: 2.5mm plug
Cellular Phone
Cellular Networks: CDMA800 (BC0), CDMA1900 (BC14)
Cellular Data Links: CDMAOne, CDMA2000 1xRTT, CDMA2000 1xEV-DO Rel. 0
Cellular Antenna: Fixed external antenna
Call Alert: 40 -chord melody (polyphonic)
Vibrating-Alert: Supported
Control Peripherals
Positioning Device: Touchscreen
Primary Keyboard: Slide-out QWERTY-type keyboard, 41 keys, automatic keyboard backlight (upon press of any key)
Directional Pad: Four-way (with action button)
Interfaces
Expansion-Interfaces: mini SD, SDIO, supports memory cards with capacity of up to 2GB and complies with some (not SD 2.0/HC) memory cards with higher capacity than 2GB
USB: USB 1.1 client, Full-Speed (12MB/s), USB Series Mini-B (mini-USB) connector
Bluetooth (802.15): Bluetooth 1.2, internal antenna
Wireless LAN/Wi-Fi (802.11): IEEE 802.11b, 11 MB/s
Digital Camera
Sensor Type: CMOS sensor
Resolution: 1280 x 1024 pixels (1.31MP)
Optical Zoom: 1 x
Built-in Flash: mobile light (LED)
Camcorder: 320 x 240 pixels
Recordable Image Formats: JPG, BMP
Recordable Video Formats: 3GP, 3G2, MPEG4, MJPG
Power Supply
Battery Technology: Lithium-ion polymer battery
Battery Build: removable
Estimated Battery-Life: 10 hours
