Hard Drive
Werkzeuge
Es werden einige allgemeine Werkzeuge verwendet, um an diesem Gerät zu arbeiten. Du wirst nicht jedes Werkzeug für jeden Vorgang benötigen.
Troubleshooting
There are no troubleshooting guides for the iMac G3 at this time.
Identification and Background
The iMac G3 was Apple's new G3 all-in-one. It had tons of new features, and removed all old interfaces. It was released in 1998, and sported a 266Mhz, or 333Mhz PowerPC G3. It also came in five colors: tangerine, blueberry, lime, grape, and strawberry. These were known as the "5 Flavors."

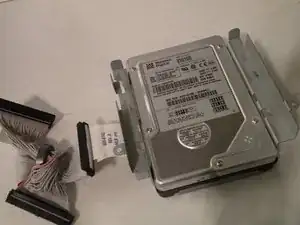

The iMac G3 Uses a 3.5" IDE Hard Drive. It supports data partitions no larger then 128GB and boot partitions no larger then 8GB
The iMac G3 had onboard video which usually means no upgrade-ability. The iMac developers found a way to allow video upgrade-ability (sort of); they built 2MB on to the logic board to power the ATI 3D Rage Pro Turbo PCI, and added a video ram DIMM slot on the motherboard allowing users to upgrade their video ram using proprietary Apple DIMMs.
Tech Specs
Processor and memory
- 233MHz G3 processor

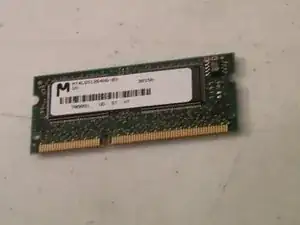

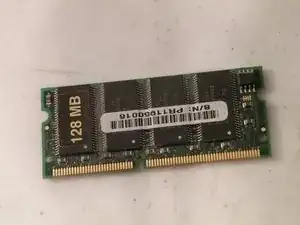

- Up to 128MB of Ram
Ports
- Two USB 1.0
- One Ethernet 100mbps Base Tx
- 3.5mm audio in/out
- RJ12 modem
- Storage***
- 4GB ATA Hard Drive

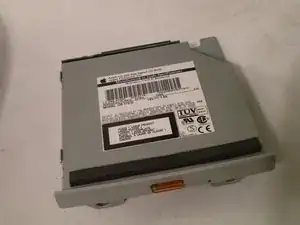

- 24x CD slot
