Is this the Droid we're looking for? Why yes! Yes it is! We've acquired the latest smartphone on the market, the Motorola Droid 2. Join us as we break down this Droid into its most basic components.

  1. epVkEYcNiwsUeYws
    epVkEYcNiwsUeYws
    rCo2COPY4SpSPnwC
    UO5pp2ayB6pPAUdi

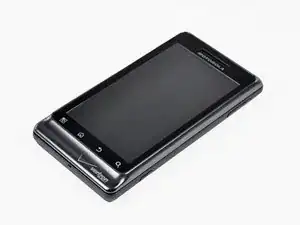

    • The Droid 2 features:

    • Texas Instruments OMAP (Open Multimedia Application Platform) 1GHz processor with dedicated GPU.

    • 8 GB internal storage space.

    • 5 MP camera with auto focus.

    • 3.7" WVGA display

    • Android 2.2 OS (Froyo)

    • The Motorola Droid 2 measures 4.58" x 2.36" x 0.54" and weighs in at 5.96 oz.

    • Taking a page from Apple, the Droid 2's nifty and compact packaging is a sight to be admired.

  2. LtUVZCehZuXumLmJ
    LtUVZCehZuXumLmJ
    LAjbqVgFCgYYT1eC

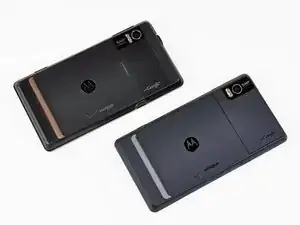

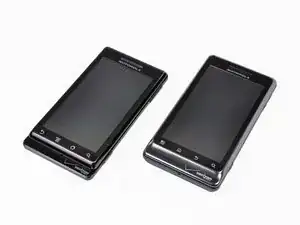

    • Side-to-side comparison of the Droid (left) and Droid 2 (right).

    • If you have a broken original Droid, check out our Droid repair manuals before forking out the cash for the new Droid 2!

    • The new Droid 2 looks sleeker than its predecessor with the dark blue finish and slight modifications to the case.

    • Rather than having a front panel with a sharp offset lip like the Droid, the Droid 2's front panel features a smooth transition to make it more pocket friendly.

  3. UewKqssKDxxSqnV5
    UewKqssKDxxSqnV5
    ihGQF663X1ZfOYoX

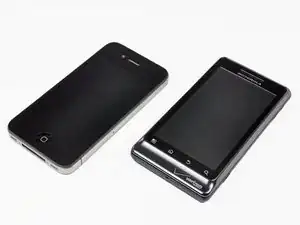

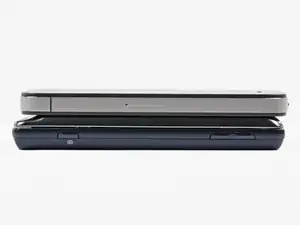

    • The top of the line Apple iPhone 4 up against the new Droid 2 equipped with Android 2.2 Froyo.

    • Unsurprisingly, the iPhone 4 is much thinner. Thickness is the price you must pay for a keyboard with actual buttons.

  4. 2UJe3gatHvh4Frk3
    2UJe3gatHvh4Frk3
    UPebFQ5mYTRG1MHo

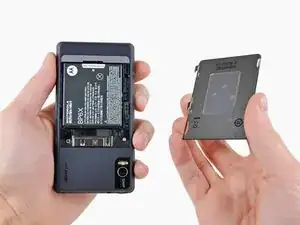

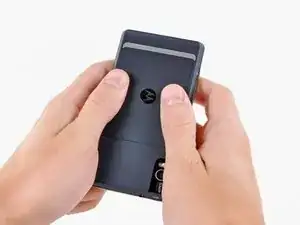

    • The battery cover comes off without much fuss, and we're on our way to tearing this phone apart!

  5. AGf3A5SEO5nXxUdV
    AGf3A5SEO5nXxUdV
    6JXEPOcDNfNNAKLB

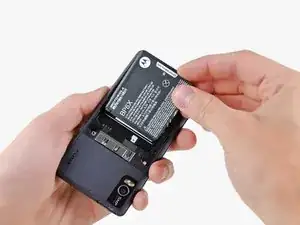

    • Unlike the iPhone 4 with its "Authorized Service Provider Only" pull tab, the Droid 2 has a helpful note stating "battery removal here." Thanks, Motorola.

    • Along the top side of the battery is one of the two visible moisture damage markers. The other is found to the left of the microSD card.

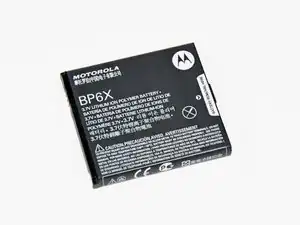

    • The Droid 2 has a 3.7V, 1390 mAh Li-Ion Polymer battery, providing up to 9.5 hours of talk time.

    • This is the exact same battery used in the Droid, and only slightly smaller than the 1420 mAh battery found in the iPhone 4.

  6. ekjWG3sb2ubTQYfU

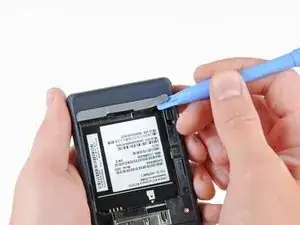

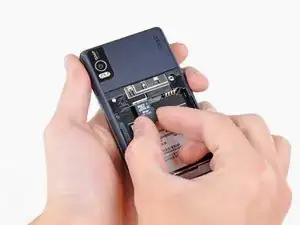

    • The Droid 2 comes pre-installed with an 8GB microSD memory card that can be easily slid out of its socket.

  7. ca2SlUPy6FoIjBth
    ca2SlUPy6FoIjBth
    kNsG5iNTjK1wBPFk
    kP1GQUwBwcPOqNSF

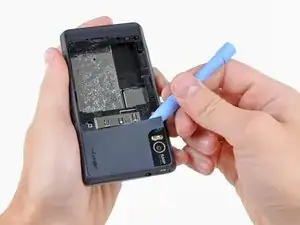

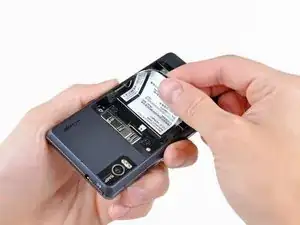

    • Every screw holding the Droid 2 together is cleverly hidden behind the many covers stuck to the rear of the device.

  8. HGWJFnVCNI2CL3JP
    HGWJFnVCNI2CL3JP
    rxVmQfyQ6NnhBoXO
    vLYUNLFdH5qf2OKW

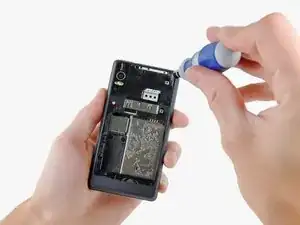

    • A screw here, a screw there, and we're almost in!

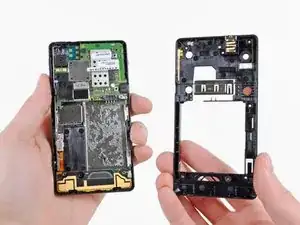

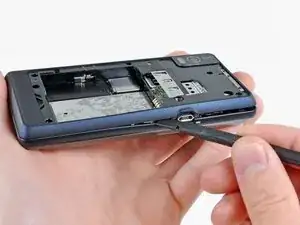

    • After prying the rear case off, we finally get to see what makes the Droid 2 tick.

    Remove the camera/flash cover, too: under the "5MP" logo there's the last screw, not shown in the pictures.

    wilhem275 -

  9. 4JxwchvPy2Cu1sSR

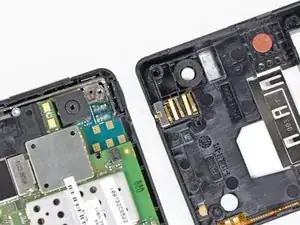

    • Five pressure contacts on the headphone jack press against the gold pads attached to the camera board to exchange data.

  10. J4TAKqxmWPUnn4tT
    J4TAKqxmWPUnn4tT
    yL63jJArhKHCFRD1
    afTRIW2JASjVFiFj

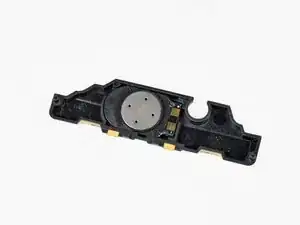

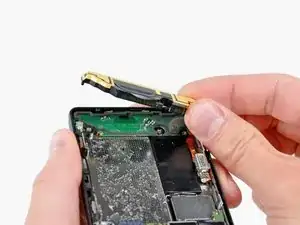

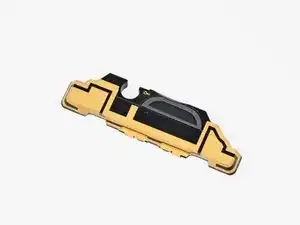

    • The speaker is held in place by the pressure of the two case halves when they are locked together, so at this point it can be simply lifted out of the Droid 2.

    • The speaker looks to be the same model as the one in the original Droid.

    • The gold sticker applied to the speaker housing is a cleverly placed antenna.

  11. BHBiajxVQvD6bJID
    BHBiajxVQvD6bJID
    ZIaXePKmmOwGMMFp
    1CNEmNpUlHU2CGVV

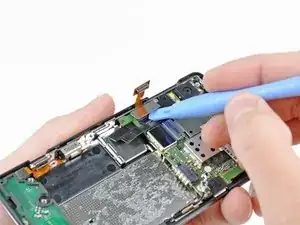

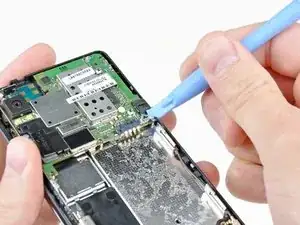

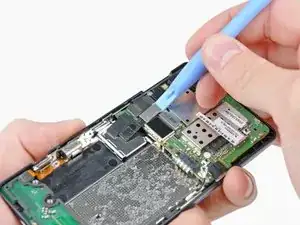

    • This Droid 2 opening tool gets a workout disconnecting the antenna, display data ribbon cable, and power/volume button ribbon cable from the motherboard.

    The coaxial cable in Step 11 picture 1 should be the antenna cable.

    NiLe -

  12. JHnFkErcwToTOXps
    JHnFkErcwToTOXps
    vrGm5esbS2ShWRjK

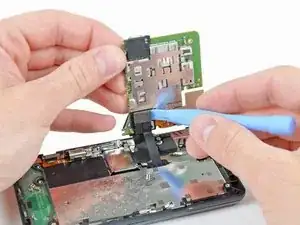

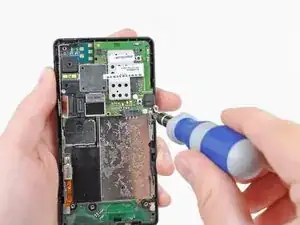

    • After removing the screws securing the motherboard to the phone and disconnecting the keypad ribbon cable on the opposite side, the motherboard is finally free from Droid 2.

  13. IRB4TiMQDhLjYGss

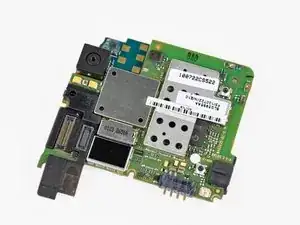

    • The motherboard assembly stands alone in all its glory.

    • The camera board is actually a separate circuit board that can be easily removed from the motherboard.

    • Awww man, all those chip covers are soldered down. You think that's going to stop us?

  14. CDMp2M2Rkuv3KZQd
    CDMp2M2Rkuv3KZQd
    Isy3EsvPnj1xLCUB

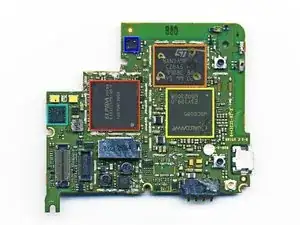

    • Big players on the front of the motherboard include:

    • Qualcomm QSC6085 CDMA Processor

    • Elpida K4332C1PD-50-F - 512MB Mobile DDR3 RAM for the OMAP3630.

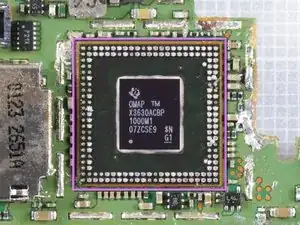

    • TI OMAP 3630 is secreted underneath the Elpida package (thanks Chipworks!).

    • Numonyx NANDA9R4N4 NAND/DRAM package that supports the QSC6085 CDMA processor. DRAM is most likely for the camera processor, while the NAND may be holding software for functions like the GPS.

    • AKM 8973N 019A Compass

    • S202 7927 microphone

    • This secondary microphone picks up background noise and helps cancel it for clearer calls.

  15. WeMNURXYl4v6ZVeJ
    WeMNURXYl4v6ZVeJ
    3QAZDdGAqCryDSA4

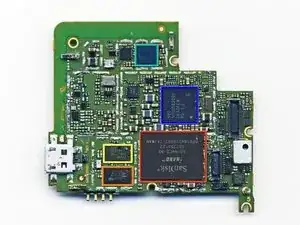

    • Back of motherboard:

    • SanDisk SDIN4C2 8 GB NAND flash

    • TriQuint TQM613029 CDMA PA-Duplexer Module

    • Avago FEM-7758 CDMA Front End Module

    • TI 51001582002 Power management IC

    • TI WL1271B WLAN Bluetooth/FM chip

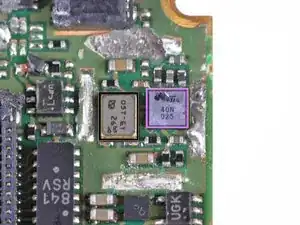

    • ST G 40N 025

    • Unidentified OST chip

  16. UhF6FLeEefWy6qZB

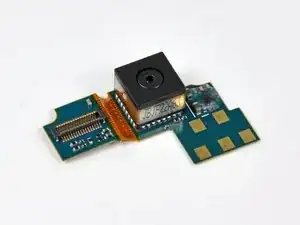

    • The Droid 2's 5 MP rear-facing camera with dual-LED flash supports DVD-quality video recording at 6 more FPS than the original Droid - 30 fps vs. 24 fps.

    • Yet the camera board doesn't look all too different than the one equipped on the original Droid.

  17. NkB4KxFBmRc6MJqQ
    NkB4KxFBmRc6MJqQ
    ffDdDCvrjDmQICDE
    qAPdoByEgGlUuWOQ

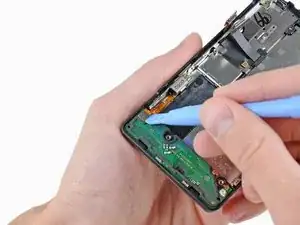

    • After disconnecting an antenna connector and a ribbon cable leading to the vibrator motor & control buttons, the small board at the bottom of the Droid 2 can be removed.

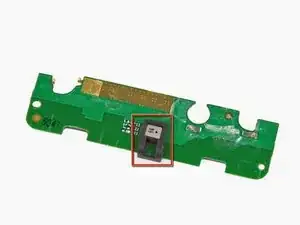

    • Between all the web-browsing and texting, when you make the occasional call on your Droid 2, this microphone lets you be heard.

  18. VdhMiNKdCiJHDwLR
    VdhMiNKdCiJHDwLR
    mwYEnFrxIWZUHL3b
    LKI4aCEViKWvKHCS

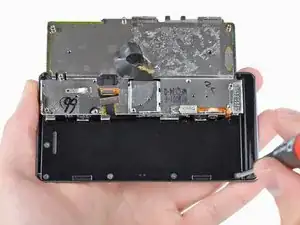

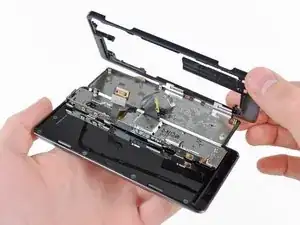

    • At this point, the black plastic rim can be lifted off the Droid 2.

    • We've thoroughly torn the body of the phone down, so we've turned our attention to the sliding display.

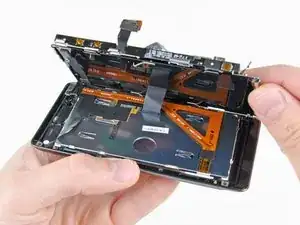

    • A few screws later and the display is open, giving us a first glimpse at the backside of the LCD.

  19. gKEbnEUqIYGiRmZZ
    gKEbnEUqIYGiRmZZ
    WXCSVtZqFqBgxpXY

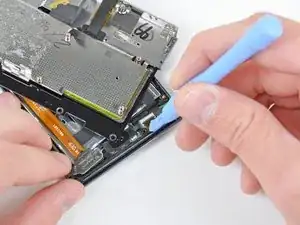

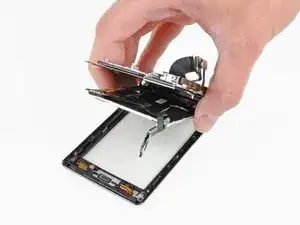

    • After disconnecting the digitizer ribbon cable and lifting out the earpiece, the front panel can be separated from the rest of the phone.

  20. butJlU5s32PMnkbZ
    butJlU5s32PMnkbZ
    4JFKctCekvxViu4j

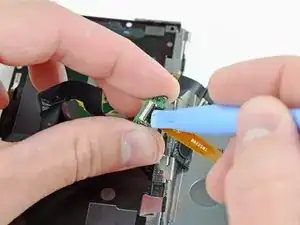

    • The LCD can be removed from the keyboard assembly after disconnecting the display data cable.

    • The Droid 2 uses the same 3.7 inch, Full WVGA, 854x480 TFT LCD as the original Droid.

  21. tbUPO1m6Eijimco4
    tbUPO1m6Eijimco4
    x2qaPGF6RQAWbjYJ

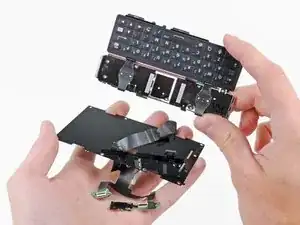

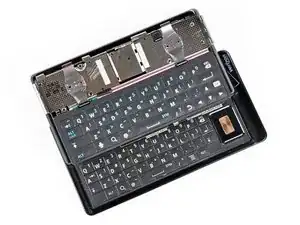

    • After de-routing the ribbon cable through the slider mechanism, the keyboard can be easily removed from the back of the slider bracket.

    • The second picture shows both Droid keyboards, with the Droid 2 obviously being on top.

    • A large D-pad panel was ditched for individual direction keys, a new record button was added, and the enter button was enlarged to more resemble a traditional keyboard.

  22. XPQnG4FW1tFsfWxN

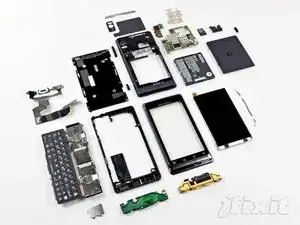

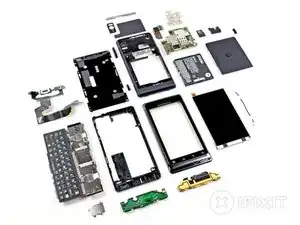

    • Are you wondering if the Droid 2 has the capability to reassemble itself? So are we...in the meantime, here's a before snapshot of all the components. As soon as the Droid 2 reassembles itself, we'll have the after shot.

    • Thanks for joining us today during this exciting teardown.

Walter Galan
