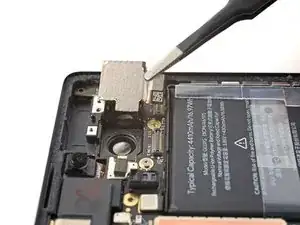

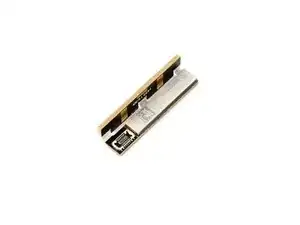

5G mmWave Antenna Removal
Tools
These are some common tools used to work on this device. You might not need every tool for every procedure.
Background and Identification
The Pixel 6a is Google’s budget option for their popular line of smartphones and was announced in May 2022. Other than a less powerful rear camera and smaller screen, it has most of the same features as the Pixel 6 and Pixel 6 Pro. It also only has 6 GB of RAM compared to the Pixel 6's 8 GB and the Pixel 6 Pro's 12 GB. However, it runs on the same Google Tensor octa-core chipset.
The Pixel 6a starts at $449 and is available in Sage, Chalk, and Charcoal depending on region and carrier.
Technical Specifications
- CPU: Octa-core (2x2.80 GHz Cortex-X1 & 2x2.25 GHz Cortex-A76 & 4x1.80 GHz Cortex-A55)
- GPU: Mali-G78 MP20
- Memory: 6 GB LPDDR5 RAM
- Storage: 128 GB internal memory
- Display
- 6.1 inch panel
- 1080 x 2400 pixels (~429 ppi)
- OLED, HDR
- Cameras
- Main Camera: Two-lens camera with 12.2 MP, f/1.7, 27mm, (wide), 1/2.55", 1.4µm, dual pixel PDAF, OIS 12 MP, f/2.2, 17mm, 114˚ (ultrawide), 1.25µm
- Front-facing Camera: 8 MP, f/2.0, 24mm (wide), 1.12µm
- Ports and Connectivity
- Wi-Fi 802.11 a/b/g/n/ac/6e, dual-band, Wi-Fi Direct, hotspot
- 5G Sub 6GHz / mmWave, LTE
- Bluetooth v5.2
- dual-band A-GPS, GLONASS, GALILEO, QZSS, BDS, NFC
- USB Type-C 3.1
- Ultra Wide Band
- Battery:
- Li-Po 4410 mAh battery
- Fast charging 18W
- Dimensions
- Size: 152.2 x 71.8 x 8.9 mm (5.99 x 2.83 x 0.35 in)
- Weight: 178 g (6.28 oz)
- Additional Features
- IP68 water/dust resistance rating (1 meter underwater up to 30 minutes)
- Stereo speakers
- Fingerprint (under display, optical)
- Laser AF
