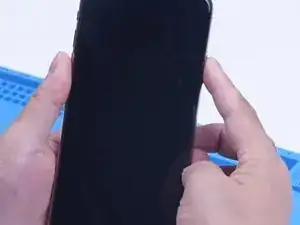

Fix iPhone 11 Pro Max Won’t Turn On

iPhone 11 Pro Max Face ID Not Working Repair

Screen Glass

Screen Glass

Wallpapers

Check out our free iPhone 11 Pro Max teardown wallpapers! Choose from iFixit or Creative Electron (X-ray) versions.

Background and Identification

Starting at $1,099 USD, Apple’s 2019 “Pro Max” model succeeds the previous year’s XS Max and adds a third rear camera, improved durability and water resistance, and a new 6.5-inch “Super Retina XDR” OLED display. It also brings an extra 5 hours of battery life, with fast charging thanks to the included 18W power adapter. It’s offered in Silver, Gold, and Space Gray, plus a new Midnight Green color option.

Apple’s 3D Touch feature, first introduced with the iPhone 6s and 6s Plus, is discontinued with this model.

A smaller iPhone 11 Pro with a 5.8” screen and similar specs is also available.

Specifications

Announce date: September 10, 2019

Operating System: iOS 13

Display:

  • 6.5-inch “Super Retina XDR” OLED display
  • Multi‑touch
  • 2688 × 1242 pixel resolution (458 ppi)
  • 2,000,000:1 contrast ratio (typical)
  • True Tone
  • P3 wide color gamut
  • 800 nits max brightness; 1200 nits max HDR (typical)
  • Fingerprint-resistant oleophobic coating

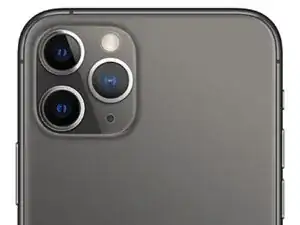

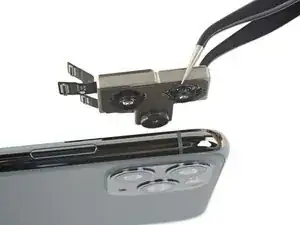

Triple primary camera:

  • True Tone flash
  • 4K video recording, up to 60 fps
  • Wide-angle module
    • 12 MP
    • ƒ/1.8 aperture
    • Optical image stabilization (OIS)
    • Autofocus with 100% Focus Pixels
    • Six-element lens
  • Ultra-wide module (120° field of view)
    • 12 MP
    • ƒ/2.4 aperture
    • Five-element lens
  • Telephoto module (2x optical zoom)
    • 12 MP
    • ƒ/2.0 aperture
    • Optical image stabilization (OIS)
    • Six-element lens

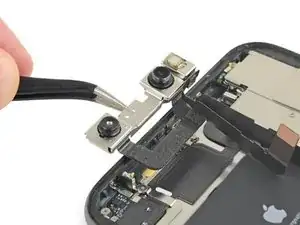

TrueDepth selfie camera with Face ID:

  • 12 MP
  • ƒ/2.2 aperture
  • 4K video recording, up to 60 fps
  • Retina Flash

Processor: A13 Bionic with 3rd-generation Neural Engine

  • 7 nm process
  • 6 cores

RAM: TBD

Storage: 64, 256, or 512 GB

Sensors:

  • Face ID
  • Barometer
  • Three-axis gyro
  • Accelerometer
  • Proximity sensor
  • Ambient light sensor

Wireless Connectivity:

  • 802.11ax Wi‑Fi 6 with 2x2 MIMO
  • Gigabit-class LTE with 4x4 MIMO and LAA
  • Bluetooth 5.0
  • Apple-designed U1 Ultra Wideband chip for spatial awareness
  • NFC

Dimensions: 6.22 × 3.06 × 0.32 in (158.0 × 77.8 × 8.1 mm)

Weight: 226 g (7.97 oz)

Colors: Silver, Space Gray, Gold, Midnight Green
