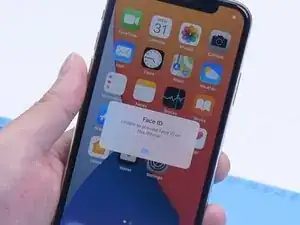

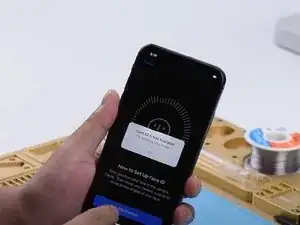

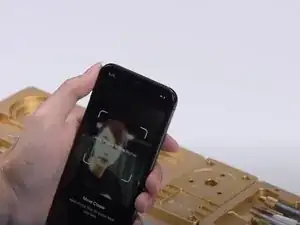

How to Fix iPhone X Face ID Not Working After Screen Replacement
Tools
These are some common tools used to work on this device. You might not need every tool for every procedure.
Wallpapers
Want to see the inside of your phone without opening it up? Check out our HD see-through and X-ray iPhone X wallpapers.

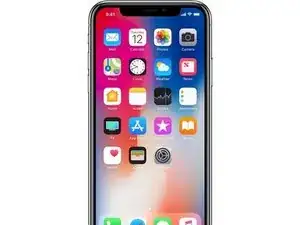

Background and Identification

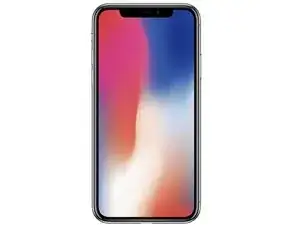

The iPhone X (as well as the 8 and 8 Plus) was formally announced by Apple on September 12, 2017. New features include a new, almost bezel-less display, a new hexa-core system-on-chip with improved system and graphics performance, a glass back, and wireless charging using the Qi Standard. Additional features include a True Tone display and upgraded cameras.

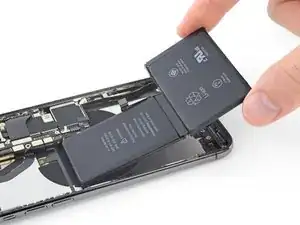

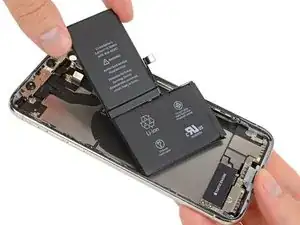

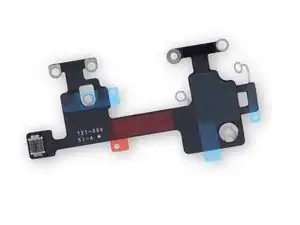

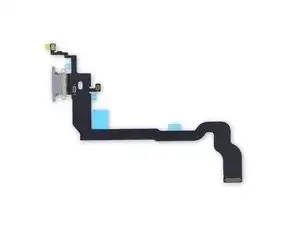

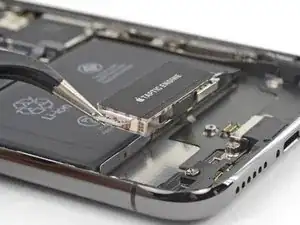

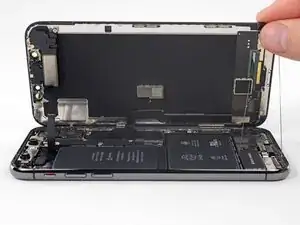

The most often replaced iPhone X parts include the battery, screen, antennas and lightning connector assembly.
Specifications
Announce date: September 12, 2017
Model: A1865, A1901
Developer: Apple Inc.
Operating System: iOS 11
Display (Super Retina HD Display with 3D Touch):
- 5.8-inch (diagonal) all-screen OLED Multi-Touch display
- HDR display
- 2436-by-1125-pixel resolution at 458 ppi
- 1,000,000:1 contrast ratio (typical)
- True Tone display
- Wide color display (P3)
- 3D Touch
- 625 cd/m2 max brightness (typical)
- Fingerprint-resistant oleophobic coating
- Support for display of multiple languages and characters simultaneously
Splash, Water, and Dust Resistant: Rated IP67 under IEC standard 60529
Camera: Contains both front and rear facing cameras.
- Rear-facing iSight camera
- 12-megapixel wide-angle camera with ƒ/1.8 aperture
- 12-megapixel telephoto camera with ƒ/2.8 aperture
- Digital zoom up to 5x
- Dual optical image stabilization
- Six-element lens
- Quad-LED True Tone flash with Slow Sync
- Panorama (up to 63 megapixels)
- Sapphire crystal lens cover
- Backside illumination sensor
- Hybrid IR Filter
- Autofocus with Focus Pixels
- Tap to focus with Focus Pixels
- Live Photos with stabilization
- Wide color capture for photos and Live Photos
- Improved local tone mapping
- Body and face detection
- Exposure Control
- Noise reduction
- Auto HDR for photos
- Auto image stabilization
- Burst mode
- Timer mode
- Photo geotagging
- Front-facing TrueDepth camera
- 7-megapixel photos
- Portrait mode
- 1080p HD video recording
- Retina Flash
- ƒ/2.2 aperture
- Wide color capture for photos and Live Photos
- Auto HDR
- Backside illumination sensor
- Body and Face detection
- Auto image stabilization
- Burst mode
- Exposure control
- Timer mode
- Video Recording
- 4K video recording at 60
- 1080p HD video recording at 30fps or 60fps
- 720p HD video recording at 30fps
- Optical image stabilization for video
- Optical zoom at 2x
- Quad-LED True Tone Flash
- Slo-mo video support for 1080p at 120fps or 240fps
- Time-lapse video with stabilization
- Cinematic video stabilization (1080p and 720p)
- Continuous autofocus video
- Body and face detection
- Noise reduction
- Take 8-megapixel still photos while recording 4K video
- Playback zoom
- Video Geotagging
- Video formats recorded: HEVC and H.264

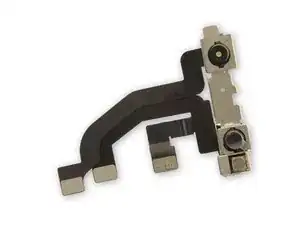

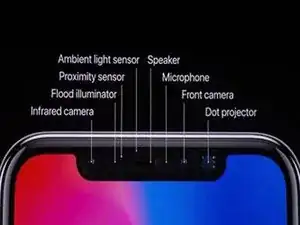

FaceID: Enabled by TrueDepth camera for facial recognition
Processor: Apple A11 chip with 64 bit architecture and embedded M11 motion coprocessor
RAM: 3 GB
Storage: 64, 256 GB Flash Memory
Sensors:
- Barometer
- Three-axis gyro
- Accelerometer
- Proximity sensor
- Ambient light sensor
Wireless Connectivity:
- Integrated 802.11 a/b/g/n/ac Wi-Fi with MIMO
- Bluetooth 5.0
- NFC
- GSM, CDMA, 3G, EVDO, HSPA+, LTE
- Digital Compass
- Assisted GPS and GLONASS
Dimensions: 5.65 x 2.79 x 0.30 in (143.6 x 70.9 x 7.7 mm)
Weight: 174 g (6.14 oz)
Colors: Silver and Space Gray
Troubleshooting
- Diagnose any issues you may be having with your iPhone X using our iPhone X Troubleshooting Page.
- One of the most frequent problems is that your iPhone X won’t turn on at all, so we’ve created a troubleshooting guide just for that.
