iPhone 12 Battery Replacement

Written By: Adam O'Camb

Comments: 4

Difficulty

Moderate

Steps

Time Required

1 - 2 hours

Introduction

iPhone batteries are rated to hold 80% of their capacity for up to 500 charge cycles, which lasts roughly 18-24 months for most users. After that, your iPhone may need to be charged far more frequently, and iOS may warn you that performance is affected (in other words, your phone will run slower). Use this guide to replace your battery and restore your iPhone to like-new performance.

If your battery is swollen, take appropriate precautions.

Note: After the repair, your iPhone may display a warning about the “genuineness” of the battery, even when using original Apple parts. If your iPhone functions normally, you can safely ignore the warning.

For optimal performance, after completing this guide, calibrate your newly installed battery: Charge it to 100% and keep charging it for at least two more hours. Then use your iPhone until it shuts off due to low battery. Finally, charge it uninterrupted to 100%.

Tools

Parts

Step 1

Insert a SIM card eject tool or a paperclip into the small hole in the SIM card tray, located on the volume button edge of the iPhone.
Press firmly to eject the tray.

Step 2

Remove the SIM card tray from the iPhone.
The SIM card will fall out of the tray easily.
When reinserting the SIM card, make sure it's in the proper orientation inside the tray.
A thin rubber gasket around the SIM tray provides water and dust protection. If this gasket is damaged or missing, replace the gasket or the entire SIM tray to protect your iPhone's internal components.

Step 3

Caution: Before you begin, discharge your iPhone battery below 25%. A charged lithium-ion battery can catch fire and/or explode if accidentally punctured.
Power off your iPhone before beginning disassembly.

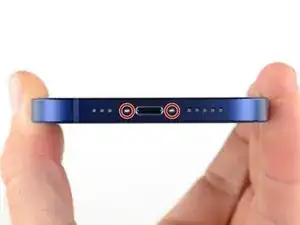

Remove the two 6.75 mm long pentalobe P2 screws at the bottom edge of the iPhone.
Opening the iPhone's display will compromise its waterproof seals. Have replacement seals ready before you proceed past this step, or take care to avoid liquid exposure if you reassemble your iPhone without replacing the seals.

Step 4

Heating the lower edge of the iPhone helps soften the adhesive securing the display, making it easier to open.
Use a hairdryer or heat gun or prepare an iOpener and apply it to the lower edge of the iPhone for about a minute in order to soften up the adhesive underneath.

Step 5

The next two steps demonstrate the Anti-Clamp, a tool we designed to make the opening procedure easier. If you aren't using the Anti-Clamp, skip down two steps for an alternate method.
For complete instructions on how to use the Anti-Clamp, check out this guide.
Pull the blue handle towards the hinge to disengage opening mode.
Position the suction cups near the bottom edge of the iPhone—one on the front, and one on the back.
Push down on the cups to apply suction to the desired area.
If you find that the surface of your device is too slippery for the Anti-Clamp to hold onto, you can use packing tape to create a grippier surface.

Step 6

Push the blue handle away from the hinge to engage opening mode.
Turn the handle clockwise until you see the cups start to stretch.
Make sure the suction cups remain aligned to each other. If they begin to slip out of alignment, loosen the suction cups slightly and realign the arms.
Wait one minute to give the adhesive a chance to release and present an opening gap.
Insert an opening pick under the screen when the Anti-Clamp creates a large enough gap.
If the Anti-Clamp doesn't create a sufficient gap, apply more heat to the area and rotate the handle clockwise half a turn.
Don't crank more than a half a turn at a time, and wait one minute between turns. Let the Anti-Clamp and time do the work for you.
Skip the next two steps.

Step 7

If you're using a single suction handle, apply it to the bottom edge of the phone, while avoiding the very edge of the glass.
If your display is badly cracked, covering it with a layer of clear packing tape may allow the suction cup to adhere. Alternatively, very strong tape may be used instead of the suction cup. If all else fails, you can superglue the suction cup to the broken screen.

Step 8

Pull up on the suction cup with firm, constant pressure to create a slight gap between the front panel and rear case.
Insert an opening pick into the gap.
The watertight adhesive holding the display in place is very strong; creating this initial gap takes a significant amount of force. If you're having a hard time opening a gap, apply more heat, and gently rock the screen up and down to weaken the adhesive until you create enough of a gap to insert your tool.

This seems impossible. I've been trying for an hour with heat and rocking, and the screen doesn't budge. :(

Aubi Abramowitz -

this is impossible, will take years

Evan Z -

Don’t give up! Use more heat and a tad more force. I know you may fear breaking it more, but as long as you don’t stick the prying tool too far or tug too hard, you can do it! I have faith that you can do it!

Rachel Kelley -

Step 9

Slide the opening pick around the lower left corner and up the left edge of the iPhone, slicing through the adhesive holding the display in place.
Don't insert the pick very far, or you may damage the display cables along this side of the iPhone. Insert it only a few millimeters, or about the width of the display bezel.

Step 10

Re-insert your pick at the bottom edge of the iPhone, and slide it up the right side to continue separating the adhesive.
Don't insert the opening pick too far into the iPhone, or you may cause damage to internal components.

Step 11

The top edge of the display is secured with both glue and clips.
Insert your pick into the right edge of the phone. Slide it around the top-right corner and across the top edge.
Again, don't insert the pick more than a few millimeters—about the width of the display bezel—or you may damage the front panel sensor array.

Step 12

Open the iPhone by swinging the display up from the right side, like the front cover of a book.
Don't try to fully separate the display yet, as several fragile ribbon cables still connect it to the iPhone's logic board.
Lean the display against something to keep it propped up while you're working on the phone.
During reassembly, lay the display in position, align the clips along the top edge, and carefully press the top edge into place before snapping the rest of the display down. If it doesn't click easily into place, check the condition of the clips around the perimeter of the display and make sure they aren't bent.

Step 13

Remove two 1.1 mm long Y000 screws securing the battery and display connector cover.
Throughout this repair, keep track of each screw and make sure it goes back exactly where it came from to avoid damaging your iPhone.
During reassembly, this is a good point to power on your iPhone and test all functions before you seal the display in place. Be sure to power your iPhone back down completely before you continue working.

Ouch, I see a broken flat here…

Alessandro Sordelli - 20/05/21

Step 14

Remove the cover.

Step 15

Use a spudger or a clean fingernail to pry the battery connector up from its socket on the logic board.
Try not to damage the black silicone seal surrounding this and other board connections. These seals provide extra protection against water and dust intrusion.
Bend the connector slightly away from the logic board to prevent it from accidentally making contact with the socket and providing power to the phone during your repair.

Step 16

Use a spudger or a fingernail to disconnect the display cable connector.
To re-attach press connectors like this one, carefully align and press down on one side until it clicks into place, then repeat on the other side. Do not press down on the middle. If the connector is misaligned, the pins can bend, causing permanent damage.

Step 17

Use a spudger or a fingernail to disconnect the digitizer cable connector.
If any part of your screen doesn't respond to touch after your repair, disconnect the battery and then re-seat this connector, making sure it clicks fully into place and that there's no dust or other obstruction in the socket.

Step 18

Use a Y000 driver to remove four screws securing the front sensor connector cover.
Three 1.1 mm long screws
One 1.4 mm long screw

Step 19

Swing the cover up from the left until the small clip on the right unhooks.
Remove the cover.
During reassembly, insert the clip on the right edge into its slot first, then hinge the rest of the cover into place.

Step 20

Use a spudger or a fingernail to disconnect the front sensor assembly cable connector.

Step 21

Remove the display assembly.
During reassembly, pause here if you wish to replace the waterproof adhesive around the edges of the display.

Step 22

Use a Phillips driver to remove the four 1.6 mm screws securing the loudspeaker.

Step 23

Remove the loudspeaker.

Step 24

Use a Y000 driver to remove the two 1.4 mm long screws securing the SIM card reader connector cover.

Step 25

Remove the SIM card reader cable connector cover.

Step 26

Use the point of a spudger to pry the SIM card reader cable connector straight up and out of its socket on the logic board.

Step 27

Use a Y000 driver to remove the three screws securing the SIM card reader.
Two 1.4 mm screws
One 1.1 mm screw

Step 28

Remove the Taptic Engine cable connector bracket.

Step 29

Use a standoff or a small flathead driver to remove the 2.82 mm long standoff screw securing the SIM card reader.
Standoff screws are best removed using a standoff screwdriver or bit.
In a pinch, a small flathead screwdriver will do the job—but use extra caution to ensure it doesn't slip and damage surrounding components.

Step 30

Remove the SIM card reader.
Before reinstallation, make sure the SIM eject plunger is pushed into the edge of the phone.

Step 31

Use the point of a spudger to pry the Taptic Engine cable connector straight up and out of its socket on the logic board.

Step 32

Remove the three screws securing the Taptic Engine.
Two 2.8 mm long standoff screws
One 1.8 mm Phillips screw

Step 33

Remove the Taptic Engine.

Step 34

The battery is secured to the rear case with four pieces of stretch-release adhesive—two on the bottom edge of the battery, and two on the top edge.
Each piece of adhesive has a black pull-tab at the end, which is lightly adhered to the edge of the battery.
In the following steps, you'll pull each tab to slowly stretch out the adhesive underneath the battery. These "command-strip" style adhesives lose their stick when stretched, so you can remove the battery with ease.
If the strips break, don't panic! They don't always work as intended. Keep reading for tips on removing broken strips.

Step 35

Peel down the first battery adhesive pull-tab to un-stick it from the bottom edge of the battery.
Caution: Don't jab the battery with any sharp tools. A punctured battery may leak dangerous chemicals or catch fire.

Step 36

Peel down the second battery adhesive pull-tab to un-stick it from the bottom edge of the battery.

Step 37

Grab the first pull-tab with your fingers and slowly pull it away from the battery, toward the bottom of the iPhone.
Pull hard enough to maintain tension on the strip, but don't force it. Give it plenty of time to stretch and un-stick from under the battery.
Don't press down on the battery. Hold the iPhone firmly by its sides.
Keep the strip flat and unwrinkled. Try to pull evenly on the whole strip, rather than pulling mainly in the middle or on one side.
Pull at a low angle so the strip doesn't snag on the edge of the battery.
If the adhesive strip breaks off, try to retrieve it using your fingers or blunt tweezers, and continue pulling—but do not pry under the battery.
If any of the adhesive strips break off underneath the battery and can't be retrieved, try to remove the other strips, and then proceed as instructed below.

Step 38

Grab the second pull-tab with your fingers and pull it away from the battery, toward the bottom of the iPhone.
Follow the same procedure as with the previous strip: don't press down on the battery, keep the strip flat and unwrinkled, and pull at a low angle.
If the adhesive strip breaks off, try to retrieve it using your fingers or blunt tweezers, and continue pulling—but do not pry under the battery.
If the adhesive breaks off underneath the battery and can't be retrieved, continue with the next step.

Step 39

Peel up the two remaining battery adhesive pull-tabs to un-stick them from the top edge of the battery.

Step 40

Using the same procedure as before, pull the remaining two tabs, one at a time, to stretch and remove the remaining adhesive strip holding the battery in place. Try not to snag the adhesive on anything.
Be careful not to fling the battery from the iPhone as the final adhesive strip comes out.
If you removed all the adhesive strips successfully, skip the next step.
Otherwise, continue with the next step below.

Step 41

If you're still having trouble removing the battery, apply a few drops of high concentration (over 90%) isopropyl alcohol under the edge of the battery in the area of the broken adhesive strip(s).
Wait about one minute for the alcohol solution to weaken the adhesive.
Use an opening pick or the flat end of a spudger to gently lift the battery.
Don't try to forcefully lever the battery out. If needed, apply a few more drops of alcohol to further weaken the adhesive. Never deform or puncture the battery with your pry tool.

Step 42

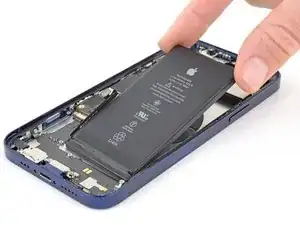

Remove the battery.
If there's any alcohol solution remaining in the phone, carefully wipe it off or allow it to air dry before installing your new battery.
If your new battery didn't come with adhesive preinstalled, refer to this guide for help replacing the adhesive strips.
Perform a force restart after reassembly. This can prevent several issues and simplify troubleshooting.

Conclusion

Compare your new replacement part to the original part—you may need to transfer remaining components or remove adhesive backings from the new part before installing.

To reassemble your device, follow the above steps in reverse order.

Take your e-waste to an R2 or e-Stewards certified recycler.

Repair didn’t go as planned? Try some basic troubleshooting, or ask our iPhone 12 Answers community for help.
