Google Pixel 2 Akku austauschen

Geschrieben von: Adam O'Camb
  • Kommentare: 102
Google Pixel 2 Akku austauschen

Schwierigkeitsgrad

Schwierig

Schritte

21

Zeitaufwand

1 - 2 Stunden

Einleitung

Diese Anleitung wurde von iFixit-Mitarbeiter:innen verfasst und ist keine offizielle Reparaturanleitung von Google. Hier erfährst du mehr über unsere Qualitätsstandards.

Diese Anleitung zeigt dir, wie du einen defekten Akku im Google Pixel 2 austauschen kannst.

Bevor du den Akku ausbaust, entlade ihn zuerst auf unter 25%. Ein geladener Lithium-Ionen Akku kann Feuer fangen und/oder explodieren, wenn er versehentlich angestochen wird. Wenn dein Akku aufgebläht ist, dann treffe geeignete Vorsichtsmaßnahmen.

Warnung: Das Display ist sehr stark verklebt, es gibt kaum Platz, um das Werkzeug einzusetzen, und du musst es stark erhitzen, all das erhöht die Wahrscheinlichkeit, das Display bei dieser Prozedur versehentlich zu beschädigen. Wenn du das Display bei dieser Reparatur nicht erneuern willst, musst du sehr behutsam arbeiten und darauf eingestellt sein, das Display doch zu ersetzen, wenn es nach dem Zusammenbau nicht funktioniert. Folge dieser Anleitung sorgfältig und beachte alle Warnungen - so erhöhst du die Chancen auf eine gelungene Reparatur.

Der Akku ist sehr stark verklebt. Du benötigst hochkonzentrierten Isopropylalkohol (mehr als 90%ig), um den Akku vom Smartphone zu lösen.

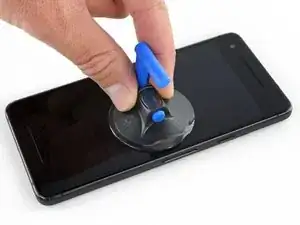

  1. wAO2rliBKNjRPNFp
    wAO2rliBKNjRPNFp
    sOF3jgMKtXwTw3QE

    • Wenn dein Displayglas zerbrochen ist, dann klebe es mit Klebeband ab. Dadurch werden die Glassplitter zusammengehalten und du vermeidest Verletzungen. Außerdem haftet der Saugheber besser an einer glatten Oberfläche.

    • Bringe den Saugheber so nahe wie möglich an der Kante nahe den Lautstärketasten an, vermeide aber den abgerundeten Bereich.

    • Der Saugheber hält im abgerundeten Bereich der Glasscheibe nicht gut.

    My screen is severly cracked. I would recommend clear packaging tape as it is wide enough to accomodate the suction cup. Thinner cellophane tape won’t seal properly.

    John Tippitt -

    Does the Google Pixel 2 have be powered off before removing the digitizer screen? Its not mentioned in this article...

    Will the phone be damaged if the power is still on when disconnecting the broken screen?

    Alex -

    Replacing the battery in my Pixel 2 was successful because I read the comments. They are invaluable in this endeavor.

    David Castro -

    Suggest procedure revision:

    Step 1: Read all steps and associated comments before proceeding.

    Step 2: Ensure they supplied you with the right F$%^ING TOOLS in the kit before proceeding.

    I'm F$%^ED because any store around me that might have this T4 Torx bit is already closed and my screen is already off. My kit came with a T2 Torx bit which is not used anywhere in this entire process.

    Jens Davidsen -

    I bought one of the kits and it had everything needed to change the battery except the alcohol, including spudgers, screwdriver, torx (2 sizes), tweezer, alcohol dispenser, glue strips and die-cut glue card that fit the phone case perfectly. I followed these instructions and read the comments. Applied alcohol and patience, took my time and got the job done without any damage to the phone. Thank you ifixit!

    Jeffrey Price -

  2. avTQkVCTMJZevgJY

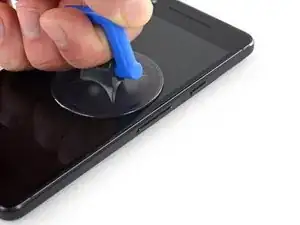

    avTQkVCTMJZevgJY
    dJrwweYej11ijuYM

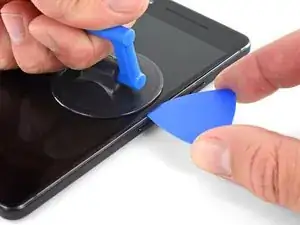

    txYtFqoGDv4UxBDE

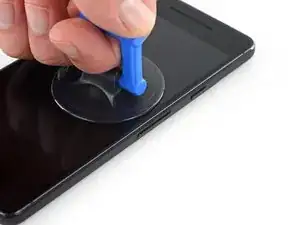

    • Ziehe den Saugheber gleichmäßig und fest hoch und setze ein Plektrum zwischen Frontscheibe und Rückgehäuse ein.

    • Setze das Plektrum nicht tiefer als 1,5 mm ein, sonst riskierst du Beschädigungen am OLED-Panel.

    • Du brauchst dafür viel Geduld und musst recht kräftig ziehen. Wenn es nicht gut geht, dann rüttele am Saugheber und der Scheibe, damit der Klebstoff geschwächt wird. Du kannst die Scheibe auch mit einem iOpener, einem Heißluftgebläse oder einem Haartrockner erwärmen.

    • Die Displayscheibe ist zerbrechlich. Wenn du das Display weiterverwenden möchtest, solltest du darauf achten, dass du das Werkzeug zum Auftrennen des Klebers nur soweit wie nötig einführst. Wenn du das Werkzeug zu tief einsteckst, kann das OLED-Panel unter der Glascheibe beschädigt werden.

    They cannot emphasize enough how careful you need to be when separating the screen. The iOpener does not work well enough to prevent breakage (opinion). I spent a majority of the hour and forty five minutes replacing my battery on removing the screen, i.e. reheating the iOpener, warming the device, slowly, with multiple passes, separating the adhesive. Use a heat gun or blow dryer.

    Devin McMillen -

    How many passes do I need? I do have a heatgun but I’m afraid to discolor or damage the screen. Anyone know the best temp before stopping to seperate the screen?

    Sen Lin -

    try the alcohol as instructed instead of heat. “Do not heat your phone. If needed, you can use a dropper or syringe to inject isopropyl alcohol (90+%) around the edges of the back cover to weaken the adhesive.  “

    Rogerio Sa -

    Make sure to remove the adhesive under the top and bottom speakers to make it much easier to remove the screen.

    Chibi Chica -

    Isopropyl alcohol works well to loosen the adhesive. However - GO SLOW. Slide the pick a bit, then apply some isopropyl alcohol into the gap where you’re sliding toward. Wait a moment, then slide a bit more. Move very slowly, particularly around the corners!

    Raquel Smith -

    Any idea on what to do when the suction cup pops off of the screen before there’s enough clearance to slide the pick in?

    Douglas Leenhouts -

    I used a hairdryer to weaken the adhesive. If you place your finger in the path of the hairdryer you’ll have a good idea of when too much heat has been applied (when your skin becomes unhappy at the temperature). BE VERY GENTLE. I cracked my screen because I didn’t weaken the adhesive enough. I also chipped(dog eared) the corner of the OLED screen underneath with one of the plastic tools. Don’t stick it in too far. As the guide says, use the flat edge or the pick to help control this.

    Alex Lawson -

    I did the 90% alcohol and the iOpener. Took a while but finally got the screen off. As others have mentioned, there is lots of adhesive around the top and bottom speaker openings. I ended up reaching in with a small brush and more alcohol to get it. I used a tooth pick to break the final adhesive.

    I also had a set of dental tools and a set of magnifying goggles (I’m a model railroader) which helped greatly.

    John Reagan -

    Like others have said, THIS STEP IS THE MOST DANGEROUS!!! You must be extremely gentle (no real force should be necessary to separate the screen from the glue) with the screen and take your time. (IMO if it takes you less than 30 mins to get the screen loose, your going too hard at it). Two suggestions from my successful battery replacement that I can give, use alcohol instead of heat (seems to work better with this phone) and start with a much thinner plastic tool that is also flexible (I used a metro card from the NYC MTA). This will allow you to get at the tiny gap without using any significant force and then get some alcohol into the gap by dripping it down the thin plastic tool. Honestly, IFIXIT should make a small thin rectangular card to use for this with lines around it for measurements…

    Aleksandr Demidenko -

    The first pry to get the pick inside the edge of the screen needs A LOT OF HEAT and a very firm pull, and just as someone else mentioned, the iOpener did not work well, instead, a regular hair dryer proved more beneficial in applying a controlled amount of heat until its almost too hot to touch. Then, once the pick is inside 99% isopropyl alcohol worked wonders, use a syringe or dropper to apple some at the edge, wait for about 15 seconds and move the pick centimetre by centimetre. Make sure to not insert it more than 2mm at the sides. I took more than an hour just to get the screen off.

    A Sid -

    As an experienced (1) screen remover, I’d recommend that if you don’t plan to change your screen, change your plans. You will be less disappointed that way. I managed to get mine for just over $10 with shipping and test it first (weak Battery). Pixel 3’s (Not 3a or XL) sure look a lot better now. They have removable backs. My pixel 1st gen was a cheap lesson. Looking for another cheap one to try alcohol on.

    Scott Graham -

    Used a hairdryer on medium heat (very warm but not burning hot), suction cup, and applied isopropyl alcohol into crack made when applying pressure. Rinse and repeat until loosened enough to get a pick in. Took many attempts. Don't try to force the pick in, as you could chip the edge of the thin glass of screen this way. The suction cup pressure and weakened adhesive should do the work. Once the pick gets it, you can work a little faster but did the same basic steps minus needing the suction cup anymore, working around the edges. Good lighting is a must to see the crack forming.

    Arthur Kay -

    I have to disagree with folks who said this is the longest step of the whole process...for me...the longest step was having to drive around and find a T4 Torx bit because this kit came with a T2 Torx which proved absolutely USELESS...

    The screen came off very easily with the liberal application of 90% Isopropyl Alcohol. Took around 15min to get the screen off and I hardly had to use picks except for the top and bottom.

    That Torx bit though... F$%^ED ME

    Jens Davidsen -

  3. RSYXSBeeSGreK1tU
    RSYXSBeeSGreK1tU
    rJRrccJKxCssQRxL

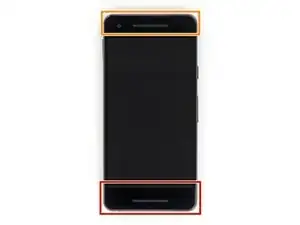

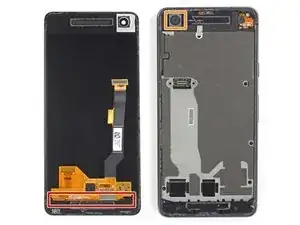

    • In den folgenden Schritten musst du besonders aufpassen, damit das Smartphone in bestimmten Bereichen keinen Schaden nimmt:

    • Setze das Plektrum nicht tiefer als 9 mm an der Unterkante des Smartphones ein. Wenn das Plektrum den gebogenen Bereich des OLED Panels berührt, kann dieses beschädigt werden.

    • In der oberen linken Ecke darfst du nur sehr knappe Schnitte führen, wenn du tiefer hineinkommst, kann die Frontkamera beschädigt werden.

    • Wenn das Öffnungswerkzeug an den Seiten des Gerätes tiefer als 1,5 mm, an der Ober- und Unterseite tiefer als 9 mm eingestzt wird, kann das Display dauerhaft beschädigt werden.

    This is inaccurate. The Pixel 2 phone’s back comes in two parts: a plastic main section and a glass back upper section. Only the glass section is required to be removed to replace the camera. Once the glass back is removed, the camera can easily be replaced without removing the motherboard, battery, or any other components. What is picture here looks like the original Google Pixel Phone.

    hunter alden -

    Firstly, I disagree with hunter’s comment above - my Pixel 2 looked identical to this when I had it opened up.

    Secondly, the whole thing about 1.5mm at the sides - literally scared the cr*p out of me when I started this as it’s such a tiny margin - but what this doesn’t say is that you can see these limits on your phone - just turn the screen on and it’s where the display ends - the digitiser starts there and is a couple of mm deep - hence the need to be careful. You can also see it (though less obviously) when you have the screen off - the jet black part at the edge is where the adhesive is - just make sure you don’t push in past there. It’s not like you can’t make very gentle contact with the digitiser when clearing the adhesive - I believe it’s just any kind of real pressure which will render the screen useless.

    Dave Watts -

    I think it would be helpful to highlight the adhesive patches around the microphone/speaker areas and that you do need to project your pick in quite a distance to break this adhesive. I think simply creating a highlighted tracing of all of the adhesive areas would be helpful and pretty simple to do. It is shown to some extent, but in my opinion it could be more clear. In all of the prefaced concerns for digging too deep, I spent extra time and effort carefully prying upward and cracked my screen and OLED rendering my phone useless. Eventually I decided to probe more deeply toward the mic/speaker and broke things loose which allowed me to remove the screen easily.

    Matt Escher -

    Yes your right. I didn't e that and I disassembly the scree from it's digitiser layer. If i would know in advanced the adhesive borders it wouldn't happened.

    Ronen Stolarski -

    I took my time but a few times I slipped in more than I wanted. No harm. The bottom is the more tricky. The adhesive around the bottom opening goes right up against the ribbon cable for the screen. I got the edges unglued with alcohol & iOpener. I then gently pried the screen away and reached in with a small brush and more alcohol. I then used a toothpick to break the last pieces of adhesive.

    John Reagan -

    Besides the adhesive at the edges, there are 2 rectangular shaped adhesive patches at the top (around the speaker) and bottom (around the microphone). These are pretty thick, but can be easily chipped away with the pick. You start to see these as you gently lift the screen upwards with the suction cup and peer inside (use a flashlight). I did not need to use a heat gun or blow dryer. Just the pick and some isopropyl alcohol.

    Hasan Akhter -

    Use isopropyl alcohol with a syringe at the top and bottom speaker to weaken the adhesive, gently pull apart (about 2mm) and use a finer piece of plastic (like a milky file plastic sheet) to cut through the adhesive at the speakers, but still do not take the screen off completely yet! After extensively reading about failed attempts to get the screen off (instances where people damaged the OLED underneath) one thing is in common: few devices have little adhesive underneath the ribbon cable as well, which people failed to notice and while separating the screen and in turn, damaged the OLED because of the pull from the ribbon cable. Thanks to having this information beforehand I found the same issue in my phone after I separated the screen (not completely) from the frame, I used a piece of finer sheet of plastic to cut the adhesive holding the ribbon cable. You will have to be extremely patient and take your time.

    A Sid -

    Word of warning - it is incredibly easy to slip and damage the ribbon cable at the back of the screen (where it folds over on the left in the image)! I accidentally did this removing the screen on my phone and it killed the touch functionality.

    Joshua -

  4. EMmUoacoYJBggeoq
    EMmUoacoYJBggeoq

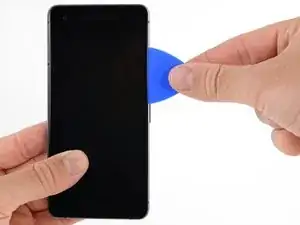

    aNShcRN3lT1gILvU

    • Verwende beim nächsten Schritt anstatt der Spitze den flachen Teil des Plektrums. Das hilft, um mit dem Plektrum nicht zu tief in das Smartphone einzudringen.

    • Ziehe das Plektrum an der rechte Seite des Smartphones nach oben, um den Displayklebstoff aufzutrennen.

    • Sei an den seitlichen Blenden besonders vorsichtig, sie sind nur 1,5 mm breit.

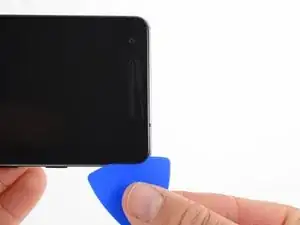

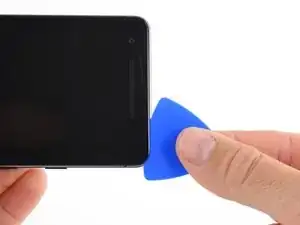

  5. 2ZereWB1RyT1fDqM
    2ZereWB1RyT1fDqM
    QheOxYBPND2qTmEW
    ABqclJOsvBrYbSRi

    • Ziehe nun das Plektrum um die rechte obere Ecke und weiter entlang der oberen Kante des Smartphones.

    • Der Ohrhörer-Lautsprecher am oberen Displayrand ist mit einem Gitter überdeckt. Wenn du kein Ersatzgitter hast, dann achte darauf, dass du dieses Bauteil nicht beschädigst oder verlierst.

    Leaving one pick inserted at each corner will help prevent it from sticking back.

    A Sid -

  6. CSIHJiCWeWNvyTYT
    CSIHJiCWeWNvyTYT
    6nflAeiavcU2ayr4

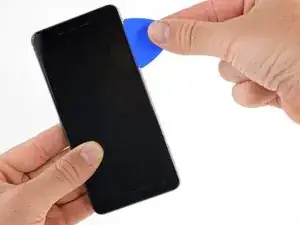

    WjQhcowbgPGBLQPx

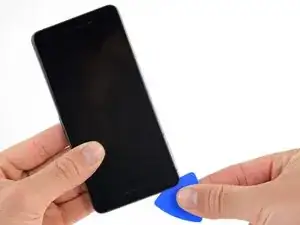

    • Ziehe das Plektrum um die linke obere Ecke und weiter an der linken Kante des Smartphones nach unten.

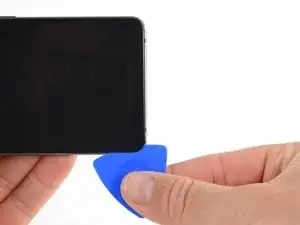

  7. tO5kFjHUNBjm4AsA

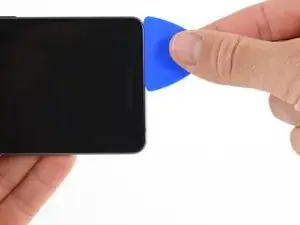

    tO5kFjHUNBjm4AsA

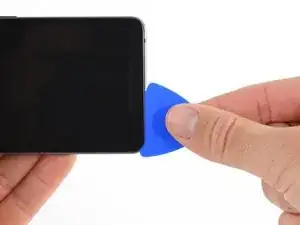

    WJIBfKgTsge5j4Yi
    FSAYTUP5IIkJH4Mo

    • Ziehe nun das Plektrum weiter um die untere linke Ecke und weiter entlang der unteren Kante. Halte das Plektrum leicht schräg zum Display, um Schäden an den Ecken des OLEDs zu vermeiden.

    • Setze das Plektrum nicht tiefer als 9 mm ein, damit das OLED-Panel nicht beschädigt wird.

  8. JqE263rlSCiGMMPx

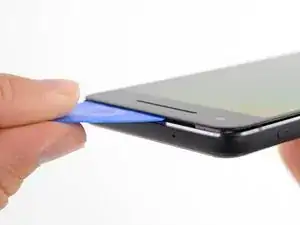

    JqE263rlSCiGMMPx
    ybiQ4Z6SU44i4TXK

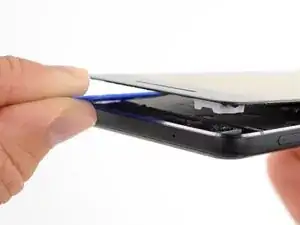

    • Setze das Plektrum nun erneut an der oberen Kante ein und heble vorsichtig das Display hoch.

    • Falls das Display sich nicht ohne Weiteres lösen lässt, musst du noch etwas mehr hebeln, damit sich der restliche Kleber auch noch löst. In der Nähe des oberen Lautsprechers ist dieser dicker als an anderen Stellen.

    • Versuche noch nicht das Display komplett vom Smartphone zu trennen, da es noch durch ein sehr empfindliches Flachbandkabel mit der Hauptplatine verbunden ist.

    This for me was by far the hardest step. What this guide fails to say is just how much adhesive you’ll encounter - mine was heaving with the stuff - so I wouldn’t attempt this fix without the rubbing alcohol, and I would be prepared to spend 30 mins on this - the images above make it look like as soon as you can get the pick in and around the whole phone the display will come off - this wasn’t true on mine, and I put a small crack in the top of my screen as I applied a little pressure to lever the top - the edges were ok, but there was so much adhesive at the top and bottom - right down and around the speaker grills - that I used scissors to cut the remaining strands as I managed to lift the screen higher enough! Don’t be shy with the rubbing alcohol, it really helps - and you really need to feel all sides loosen properly before you attempt to lever - but if you’re patient, it’ll be ok.

    Dave Watts -

    agree, way more adhesive at top and bottom than guide implies. go really slow on sides with thin plastic but top and bottom speaker needs a bigger dig

    Erik Sorensen -

  9. AWBi6gyoZBNSFCVg

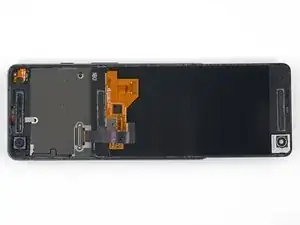

    AWBi6gyoZBNSFCVg
    2YNgAiW26hAJxtF2

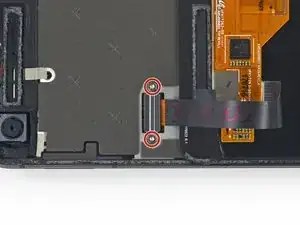

    • Lege das Display nun vorsichtig wie abgebildet auf das Rückgehäuse und achte darauf, dass das Displayflachbandkabel nicht geknickt oder abgerissen wird.

    • Entferne die zwei 4,0 mm T5 Torx-Schrauben, mit denen die Displaykabelhalterung befestigt ist.

    • Halte während der gesamten Reparatur die Schrauben gut geordnet und achte darauf, dass jede an ihren ursprünglichen Platz zurück kommt.

    I cannot imagine how much easier this project would be if they provided the bit for this screw and the others of the same size. The torx bit included in my kit is a 2mm - entirely useless here. Only other bits are Philips...also pretty useless...

    Jens Davidsen -

  10. HuntXSUMrTQOPvUT

    • Entferne die Displaykabelhalterung.

  11. htMtx16FFYrRZWZB

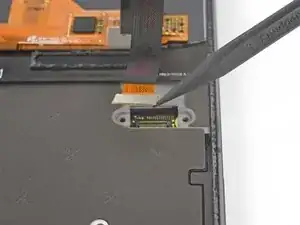

    htMtx16FFYrRZWZB
    nbBnajSgXNRgYwgn

    • Verwende die Spitze eines Spudgers, um den Displaykabelstecker nach oben zu klappen und aus seinem Anschluss auf der Hauptplatine zu ziehen.

    • Vermeide es, die Hauptplatine mit der Spudgerspitze zu berühren. Die Teile um den Anschluss herum sind sehr empfindlich.

    • Um Press-fit Verbinder wie diesen wieder anzubringen, richte diesen vorsichtig aus und drücke auf einer Seite nach unten bis er einrastet. Wiederhole das Ganze auf der anderen Seite. Drücke nicht auf die Mitte, denn falls der Stecker falsch ausgerichtet ist, können sich die Stifte verbiegen und dauerhafte Schäden verursachen.

    • Sollte nach der Reperatur das Display in gewissen Bereichen nicht auf Berührungen reagieren, setze diesen Stecker erneut ein und achte darauf, dass sich kein Staub oder anderen Fremdkörper in der Buchse befinden und der Anschluss richtig einrastet.

    • Halte beim Zusammenbau an dieser Stelle an und erneuere die Klebestreifen an den Kanten des Displays.

    Wow, I think I damaged my motherboard on this step. It would be helpful if there was a warning in this step to avoid doing that! Now my pixel 2 is reduced to a cool paperweight with a static display.

    Zach Laporte -

    Yep, there’s a small surface mounted component below the connector that is super easy to dislodge from the circuit board. Shown in this YouTube video - https://www.youtube.com/watch?v=0BEpgqpI.... Unfortunately, the part is smaller than a grain of sand, so not really practical for the average fixer to put back on the board.

    jlyonsmith -

    I also knocked the tiny chip off of the board while removing the ribbon cable in this step. Use the spudger exactly how it’s shown in the photos.

    John Ware -

    A spudger is the wrong tool to remove the video connector. You cannot see where you are poking with that tool and I wound up dislodging one of the surface mounted devices hidden by the connector and ruining the phone. I also broke a ground path near the corner of the middle frame that is not mentioned in this repair procedure. Watch this YouTube before you begin disassembly: https://www.youtube.com/watch?v=yKULr67Z...

    jamesdrobinson -

    None of the tools provided in the repair kit seemed slim enough to fit the space required to pry this up. I ended up using a thin / flimsy plastic health care card to get under and pry up. It popped up with enough pressure.

    Arthur Kay -

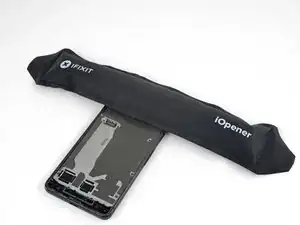

  12. EZUdI4BmuOMhSJui

    • Lege zwei Minuten lang einen erwärmten iOpener auf den Näherungssensor an der Oberkante des Mittelrahmens, so dass seine Klebeverbindung aufgeweicht wird.

    Isopropyl alcohol worked quickly for this

    Raquel Smith -

  13. HbJNOR1kLALZjcTd

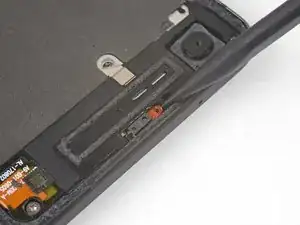

    HbJNOR1kLALZjcTd

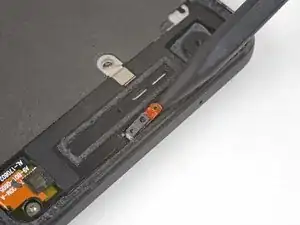

    SrRrbyQwXyPacWk4

    • Schiebe die Spudgerspitze unter das Kabel des Näherungssensors, fange damit an der Seite in der Nähe der Frontkamera an.

    • Hebe das Sensorkabel vorsichtig an der Kante an, bis der Sensor rechtwinklig zum Mittelrahmen steht.

    This piece is actually glued down - heat and rubbing alcohol really helped as at first I couldn’t figure out why I couldn’t get it to move.

    Dave Watts -

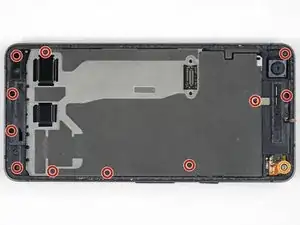

  14. DF6iCcXDep2Shj2C

    • Ziehe das kleine Stückchen Klebeband zurück, welches die Schraube unter dem Ohrhörer-Lautsprecher verdeckt. Wenn andere Schrauben auch beklebt sind, dann ziehe auch hier das Klebeband zurück.

    • Entferne folgende Schrauben, mit denen der Mittelrahmen befestigt ist:

    • Elf 3,7 mm Kreuzschlitzschrauben

    • Eine 4 mm Torx T5 Schraube

    • Halte während der gesamten Reparatur die Schrauben gut geordnet und achte darauf, dass jede wieder an ihren ursprünglichen Platz zurück kommt.

    On my Pixel 2, I also had to peel back a small strip of conductive tape that was directly above (and the same kind as) the “screw below the earpiece speaker” mentioned above. It appears to be a ground strap to the assembly underneath.

    Jonathan Dubovsky -

    Me too! Please change the photo?

    Andrew Hoeveler -

    If you don't peel the mesh tape up, it will year. I'm not sure if it plays into the screen potentially not working, but it seems to be a ground for the midframe and the display ribbon has a ground contact to the

    Wesley Krueger -

    Many of the screws would not come out due to the original threadlocker on the threads. I found that if I just kept moving them around with a toothpick, I could get the out. I also had one of those telescoping magnetic bolt grabbers that pulled the screws out.

    John Reagan -

    Would be nice if they included the correct torx bit in the tool kit... mine came with a T2 Torx...pretty useless...managed to get the display ribbon cable free as those screws were surprisingly not super tight - got them with the included Philips bit...pretty F$%^ED right here

    Jens Davidsen -

    @JensDavidsen, I'm sorry to hear that the kit came with the wrong bit. We do everything we can to make sure that our tool kits are kitted correctly. I've gone ahead and forwarded your information over to CS so they can get this fixed for you. In the future, if you have any questions or concerns, don't hesitate to reach out to us directly.

    Kris Rodriguez -

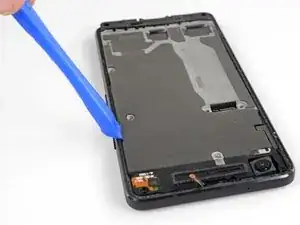

  15. HEw3eLh2pEVebIL6
    HEw3eLh2pEVebIL6
    LCQWWIipK2OVjkmP

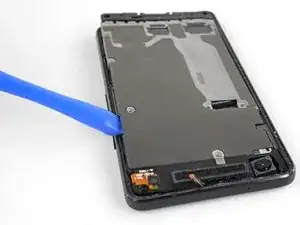

    • Setze ein Öffnungswerkzeug in die Einkerbung im Mittelrahmen in der Nähe der Halte-Taste ein.

    • Heble den Mittelrahmen so hoch, dass ein Spalt zwischen ihm und dem Gehäuse des Smartphones entsteht. Der Mittelrahmen kann noch nicht ganz ausgebaut werden.

    This is to pop a securing tab out it's place

    Wesley Krueger -

    On re-assembly make sure the securing tab, near the notch you use to open it, is inserted back under the frame again - this caused me to have to re-open my phone as my screen didn’t sit back down properly after I had put everything back together.

    Dave Watts -

    It is more effort than I anticipated. I really thought I was going to break it, but it was fine.

    John Reagan -

  16. OS6IR34P416u1kUn

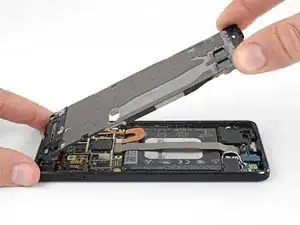

    OS6IR34P416u1kUn

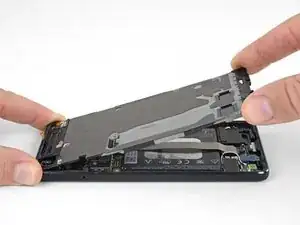

    bZXWgUSBDVDpCf1y
    qvUYTFk3VKDRNlOb

    • Beginne an der Unterkante den Mittelrahmen hochzuheben.

    • Wenn der Mittelrahmen zum restlichen Smartphone einen Winkel von 45° erreicht hat, dann hebe ihn gerade nach oben weg.

    • Führe beim Hochheben des Mittelrahmens den Näherungssensor durch den kleinen Schlitz im Mittelrahmen.

    While not shown here in the photo, there is a short braided cable between the midframe and the motherboard near the front facing camera that prevents separating the midframe completely (ground?). Be careful not to damage this cable when completing the remaining steps or carefully remove before trying to separate the midframe completely.

    ericdowens -

    As ericdowens says above, there’s a small silver sliver of a connector (next to the front-facing camera). The guides on youtube said it was a grounding wire. This guide doesn’t mention it. Mine broke when I removed the midframe. No big deal. I stuck it back down with some tape when I put it all back together. Phone works fine.

    Alex Lawson -

    I had a heck of a time levering up the midframe. I had popped the side with the opening tool, but the other side was really stuck. I used some alcohol along the edge thinking there was some adhesive. Not sure. I eventually used a dental pick to pop it loose.

    And when reinstalling, don’t forget to move the short braided cable back out of the way so you don’t trap it inside.

    John Reagan -

    STOP! Before you lift the midframe, the ground strap mentioned by ericdowens and Alex Lawson definitely will break if you don’t remove it from the midframe before lifting. I didn’t quite know what they were talking about, so thought I’d look for it as I was lifting the midframe, as I was sure if I was careful I’d spot it before it would break. I was very gentle, and I still broke it before realising what they were talking about. Look for some silver mesh tape on the midframe, near the forward-facing camera, same kind of tape as over the screw shown in Step 14. I’m going to try and carefully tape mine back together as Alex Lawson did, but it will be very fiddly, wish I hadn’t broken it in the first place!

    Jamie Lamb -

    I broke mine... then proceeded to pilfer about 2mm worth of the tape depicted in step 18 because it's a silvery adhesive.

    Jens Davidsen -

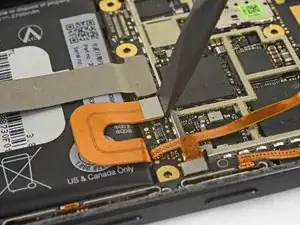

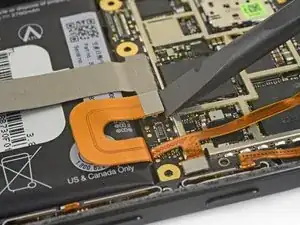

  17. ARK3wcDKuwSV4Y4b
    ARK3wcDKuwSV4Y4b
    tV1ItBGOoAQhwkQH

    • Löse den Akkustecker mit dem flachen Ende des Spudgers ab.

    This photo and tutorial doesn't show the shielding on the chips of the motherboard. And the glue…My pixel 2 had the volume button ribbon cable glued to the shielding. Carefully pry the cable off. Very carefully slide under it. Maybe use a little heat to soften the glue. You cannot just remove the motherboard with removing the ribbon cable for the volume buttons.

    Austen -

  18. lCHiZglBVMJdyGm4

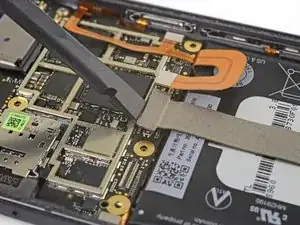

    lCHiZglBVMJdyGm4
    yroCcFmsEvYpRIKk

    • Löse den Stecker der Tochterplatine mit dem flachen Ende des Spudgers ab.

    Removing the battery is not necessary to replace the motherboard, steps 19-21 can be omitted

    Robert -

    Hi Robert,

    Thanks for the input! I’ve re-ordered the guide to remove the unnecessary steps.

    Arthur Shi -

    Thank you Robert

    shady mohamed -

  19. Cd5QwSu2MWDVLCUH

    • Fülle etwas hochkonzentrierten Isopropylalkohol in eine Kunststoffpipette oder eine Spritze und träufle ein wenig davon in jede Ecke des Akkus. Lasse ihn eine Minuten lang einwirken, um den Kleber zu schwächen.

    • Alternativ kannst du auch einen erwärmten iOpener mindestens zwei Minuten lang auf die Rückseite des Smartphones über den Akku legen. Erwärme und lege den iOpener so oft wie nötig auf, bis sich der Kleber lösen lässt.

  20. er1Zlj4aJ3ClDrcc
    er1Zlj4aJ3ClDrcc
    wZLTlZujDSbOjnhe

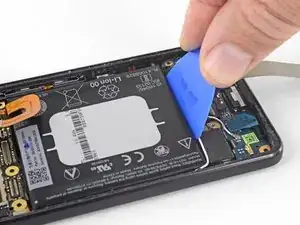

    • Halte das Kabel zur Tochterplatine aus dem Weg und setze ein Plektrum an der Unterkante des Akkus ein.

    • Drücke gleichmäßig und beständig, bis sich der Akku langsam aus dem Smartphone hebt.

    • Heble nur in der Mitte des Akkus, so vermeidest du Beschädigungen an den empfindlichen Flachbandkabeln unter jeder Seite des Akkus.

    • Achte darauf, den Akku dabei nicht zu verformen. Aus weichen Lithium-Ionen Akkus können gefährliche Substanzen austreten, sie können Feuer fangen oder gar explodieren, wenn sie beschädigt werden. Versuche möglichst wenig Kraft aufzuwenden und benutze keine Metallwerkzeuge, um den Akku zu entfernen.

    • Wenn es schwer geht, dann gib noch etwas Alkohol unter den Akku und versuche es nochmals.

    This is another place where the amount of adhesive they’d used in the factory seemed understated - it took ages and plenty of heat and rubbing alcohol to get the battery out. Again, patience was needed - and I thought I might have messed it all up as I must have missed the “only pry from the centre” comment in the guide and went under the right and left bottom corners with a cotton bud and rubbing alcohol - I was lucky I think.

    Dave Watts -

    With the bottom of the phone resting against the iOpener, I used leverage with one of the plastic picks from the top and bottom of the batter and blue opening tool from the left side (below the volume rocker). It gripped it perfectly where I could pull it up a bit and slide the pick further underneath. Be careful of the volume ribbon cable (thin copper color at the top right of the battery) and what I assume to be an antenna cable. - a single thin black wire leading around the bottom left of the battery itself.

    Avi Baron -

    I think those cables to the left and right are for the “squeeze” sensors on the case.

    I used lots of alcohol as other suggested. I got it out.

    John Reagan -

  21. mtEElpLgm634aUcG
    mtEElpLgm634aUcG
    OfQ24YYJUlTcfmOm

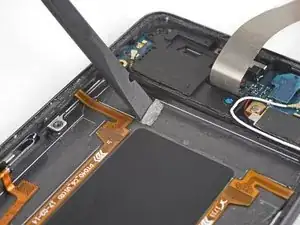

    • Entferne den Akku.

    • Benutze einen gebrauchten Akku nicht mehr, da er ein potentielles Sicherheitsrisiko darstellt. Verwende einen neuen und entsorge den alten Akku.

    • Um den neuen Akku einzubauen, gehe folgendermaßen vor:

    • Entferne alle Kleberreste vom Handy und reinige diese Bereiche mit Isopropylalkohol und einem fusselfreien Tuch.

    • Befestige den neuen Akku mit vorgestanzten Klebestreifen oder doppelseitigem Klebeband. Um ihn richtig zu positionieren, befestige den neuen Klebestreifen erst im Handy, nicht direkt auf den Akku. Der Kleber sollte keinen Kontakt mit einem der Kabel unter dem Akku haben.

    • Drücke den neuen Akku für 20-30 Sekunden fest.

    Why I have to replace the battery if it doing well??!!

    And is it necessary to remove the battery to reinstall the rear camera?

    shady mohamed -

    Lithium-ion batteries are susceptible to damage when they are bent or creased—the thin layers inside the battery may short, resulting in swelling and potential fire hazard.

    You should be able to replace the rear camera without removing the battery. I will adjust the rear camera guide to reflect this.

    Arthur Shi -

    Re-assembly note -

    Getting the battery to connect to the charging cable was a challenge for me. However, once it’s connected, if there’s any juice in the battery or if you want to be brave and plug it in, you can test to see if the phone is receiving power by trying to start it up and seeing if it vibrates. The combination of gently adjusting the charging cable, testing power, testing power with the phone plugged in got me to identify when the cable was attached properly.

    Using my squishy finger worked better for re-attaching that cable than using the spudger.

    This is a much better place to test for power than continuing reassembly and finding out it doesn’t work. If the phone cables are connected correctly and the battery has power (mine shipped with some charge in it), the phone will vibrate when you hold power.

    Thomas -

    Like Thomas, getting the battery cable back was a pain as my positioning of the new battery made the u-shaped cable slightly askew. I finally got it. I was afraid I was going to bend a pin but all good. And I also did the “press power and check for vibrate” trick. The battery (as I would later see) was 52% out of the box.

    John Reagan -

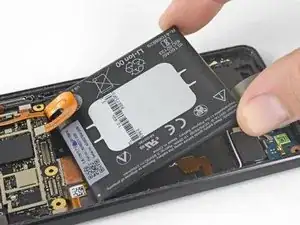

    Once you remove the battery, you may notice parallel lines of adhesives on both sides of the surface, where the battery was. No need to scrape away these lines. They should be still sticky and usable. Removing these would be a hassle. Just add a strip or two of the double sided adhesives in the middle where the battery was, before putting in your new battery.

    Hasan Akhter -

    after adding the battery, the turn on a vibrate trick does work, it vibrates, but then it never does again, and the display does not turn on:/ charging it for 10 min did nothing

    Martin The Orange -

    Thanks to Thomas, I did the turning on to know if it vibrated or not trick, and in my case, it did not. I had to plug out the battery connection and plug it in again with a finger and it was then when I heard a little “click” sound, and then the phone vibrated. You have to ensure that the battery side connector, sits right over the battery connection, before pressing it firmly.

    A Sid -

    Pro tip, plug in the battery before laying it down. Once the battery is in, you only have so much room to bend before it damages the cable or puts too much tension on the board.

    Lance Garcia -

Abschluss

Vergleiche dein Ersatzteil mit dem Originalteil. Du musst vielleicht fehlende Teile vom alten auf das neue Teil übertragen oder Schutzfolien vom Neuteil abziehen, bevor du es einbauen kannst.

Um dein Gerät wieder zusammenzubauen, folge den Schritten in umgekehrterReihenfolge.

Nach Abschluss dieser Anleitung solltest du deinen neu eingebauten Akku kalibrieren.

Entsorge deinen Elektromüll sachgerecht.

Hat die Reparatur nicht ganz geklappt? In unserem Forum findest du Hilfe bei der Fehlersuche.

Tinte & Feder

Adam O'Camb

Mitglied seit: 11/04/15

178849 Reputation

36 Kommentare

The instructions say “No parts required” and yet I believe that for a battery replacement you might possibly require a new battery (and maybe a new screen in the case of a broken screen). Also you might suggest replacement adhesive and where to find that, too.

Leslie Gawne -

Hey. So I bought a new housing and a new screen for my Pixel 2. And I have a problem with that. After moving the parts to the new housing my vibromotor stopped working and bottom of the screen easily comes off. What should I do?

Rauf Salikhov -

Hi Rauf, it’s hard to say exactly what’s wrong, but as a start I would disconnect and reconnect the vibrator motor to make sure it’s connected correctly. As for the screen, make sure you carefully clean any old adhesive off the screen and case (use 90% or higher isopropyl alcohol for stubborn), and apply new adhesive to the screen before you replace it. That should help the display seat in the case and stay put.

Adam O'Camb -

I have a quick question, if we were to replace the screen adhesive with the Tesa 61395 tape, would the phone still remain water resistant to IP67? I am only worried it would not hold it as strong as the original adhesive

Tony Goh -

Hi Tony, Tesa tape creates a strong bond and should secure your screen just as well as the old adhesive. Unfortunately, the phone won’t be waterproof since you can’t create a continuous seal using the tape.

Adam O'Camb -

It wasn’t super clear to me that you have to cut through the material that surrounds the speakers top and bottom. Looks like I get to replace my screen now too :-(

Andrew Klaiber -

I did the whole process, after replacing the battery and putting eveyrthing together my screen never lit back up. I can feel the sceen being responsive to my touch but that’s it, it pitch black.

Hector Ramirez -

I’m having the same problem…. any thoughts?

Amrita Patnaik -

Did you ever resolve this issue? I’ve just done my battery / screen replacement and have the same thing. I can feel the phone restart from the vibration but the screen never lights up.

Erik Karlin -

Same issue here. Screen never worked again upon reassembly. Used iFixit toolkit and followed instructions closely.

Marcus Reid -

Hi, how do i reassemble the phone? Your guide stops at putting in the battery.

Jake Tecchio -

Reassembly is the reverse of disassembly except where otherwise noted. Follow the steps in reverse. Whenever special reassembly instructions are needed, you’ll see a reminder bullet (looks like a push pin)—such as in this step.

Jeff Suovanen -

I am thankful for the instructions, I would classify this as an “expert” level task.

While I successfully followed the instructions and did replace the battery, now I broke the screen somehow. On a side note, if somebody calls the phone it rings, so I know the battery works.

If you need to do these instructions, they are precise, but please know this is a time consuming task and frought with risk.

JJD - Back to 2 year old model phone.

JJ Donovan -

Hi, what size of tesa tape do you recommend? (can only buy tape on a roll from the EU store)

Howard Ching -

I’d recommend the 4 mm width for installing the battery. If you want tape for other repairs as well, the 1 mm width is probably more versatile as it can be used to secure smaller parts and fit along the edges of displays. You can lay multiple strips of the 1 mm tape next to each other to secure larger parts if needed.

Adam O'Camb -

DON’T DO THIS REPAIR unless you are planning on replacing the screen. Too many people have ended up with non-functional screens after performing this repair, turning a $50 repair into a $200 repair. For a phone of this age, it’s not worth the gamble.

Chris Kohanek -

I’m about to head to the store to purchase a new phone after unsuccessfully performing this upgrade. I highly recommend avoiding this repair unless you’re ready to get a new phone if things go south. The phone is working but the screen is not.

Andrew Jones -

Is it possible to reheat the adhesive to create a new waterproof bond or is that not recommended?

Drewby Troshak -

Terrible instructions. I followed them exactly and was very careful with the screen. I didn’t get the picks even .25 inches under the screen and it still broke just enough off a corner to kill the display. Screen doesn’t work at all anymore. Save your money and take the phone to a uBreakiFix place. They’ll do it for $80 with parts and labor, and if they break the screen, they’ll replace it. These instructions were horrible and a very poor description of what was required. Once I took my phone in, even with a new screen, the phone was stuck in a boot loop with the new battery. It worked again when I put the original battery back in. I have always heard good things about iFixIt, but this whole experience has changed my mind. Terrible directions and an incompatible battery. Definitely would not buy from them again.

Stephanie Crossland -

Using these instructions, I’ve fixed two Pixel 2’s that suffered from puffed batteries — both repairs went smoothly. Excellent instructions and guide. The two phones here had very slightly different internals than pictured like an extra piece of tape here and there but nothing troubling. Getting the residual screen edge adhesive off takes the majority of time!

I highly recommend getting the matching pre-cut “Google Pixel 2 Display Adhesive” sold here. I have Tesa tape but the pre-cut adhesive sheet is not only much easier to install (you can lay it in place with the sheet still in place, so it’s nearly drop-in!) but it’s a continuous seal so will help keep things sealed up tighter than me hand-fitting long strips of Tesa.

Jonathan Dubovsky -

Had the same experience you did. Changed my Pixel 2’s battery. Went smoothly. It works like new now. It took longer than expected, because I was extra careful. The tools were very useful and the adhesive sheet was a drop-in, I agree.

Hasan Akhter -

I would say that the guide is excellent, but the fix in it’s nature is hard because removing the screen is a delicate operation. You need to make sure you have plenty of patience. I would heavily advise against the fix if you don’t have rubbing (isopropyl) alcohol. I’d also read my comments on step 3 and 8 about how to judge the 1.5mm at the sides and the sheer amount of adhesive you may find you need to work your way through respectively. But outside of that, if you go slowly enough you should be fine. I’m not an electronics or DIY expert and my phone is back together successfully and it feels like having a new phone - once the battery was re-calibrated it’s lasting more than twice as long, maybe even 3 times as long between charges (phone was 3 yrs old).

Dave Watts -

Would there be any benefit to using the iopener to pre-warm the screen, vs a heatgun/hairdryer and or alcohol for the first step of removing the screen?

Michael Reid -

Hi Michael,

The main benefit is that you cannot overheat the screen with an iOpener. If you are careful, the heatgun/hairdryer approach can be a faster alternative.

Arthur Shi -

Could alcohol help with removing the screen?

Just got my new battery and a kit, now contemplating whether to try it or wait until i have nothing to lose if I break the screen…

Tatiana Moiseeva -

Using plenty of alcohol (I used denatured alcohol from Home Depot, with an eye dropper) was ESSENTIAL to loosen the adhesive and get the battery out! The iOpener heating pad on the back of the phone for 3 minutes or so also helped a bunch.

Gabriel Staples -

amazing guid :) really helped me out - now my phone charge doesn’t last for just 5 min

I would just advise to be extra careful when taking the battery out not to hurt the squeeze wires if you hurt one of them it won’t work.

Tzvi-Bar Schumert -

My P2’s battery died a few months ago (right before the P2 went out of Google support - I bought a P4a). The phone wouldnt’t work unless it was plugged into a charger. That actually got in the way with the upgrade as the P2 -> P4a transfer wanted me to connect the two phones via the USB-C cable. Of course, the moment I unlooked the P2 from the charger, it shut down.

Fast forward a few months, I drop my P4a and break the screen. No display and no touch. (and no insurance - never get it). So I buy yet another P4a and will wait for aftermarket screens to become available. In the meantime, I wanted to practice so I buy the P2 battery replacement and spend a whole Saturday doing the swap. The instructions were pretty good. However, I also had a set of dental picks and magnifying goggles. I’m a model railroader so I’m used to working with small tools.

It powered up just fine and is charging to 100% now. Thanks!

John Reagan -

I’d recommend against this repair if you’re not prepared to replace the screen as well. This guide isn’t kidding when they say there’s a good chance you’ll break your screen. My screen was in perfect condition before opening the phone, it’s now black and won’t light up at all. I’m now waiting on an ebay screen as ifixit seem to be out of Pixel screens at the moment.

Matt -

I am looking for a less elegant but simpler brute-force way to just cut the back and replace the battery, without getting near the screen. Most phones are carried in protective cases anyway. See this approach with CNC machine cut back of Surface Pro to replace SSD: Microsoft Surface Pro 3 SSD Replacement Dodgy Style

Andrzej Rusztowicz -

I see that it’s not possible in case of Pixel 2 because there are still a few ribbon cables between the battery and the back plate (see step 21). Also, the battery ribbon cable would have to be cut and patched because it plugs from the front, which would be inaccessible from the back. Sigh.

Andrzej Rusztowicz -

If your phone falls in water could it be fixed Google pixel 2 with a cracked screen

S S -

1st of all, You peeps are awesome. You've helped me replace a batter on an SP3 and now my trusty old Pixel 2. A $40 battery is far more appealing than a $1000+ new phone.

Question though: during the screen removal, the adhesive and foam around the opening for the speakers (seen in steps 3 &13) got a bit mangled. Should I just remove it completely, or can I purchase replacements?

Steven Kocher -

As a phone repair novice, I successfully replaced the battery on my phone following this guide/using the ifixit replacement kit. I read all comments, and watched the newpower99 video. It took about 4 hours taking my time and working slowly. Used plenty of 90% isopropyl alcohol with the dropper included in the repair kit. Used a hairdryer at medium temp (warm enough to be uncomfortable but not burn) for many steps requiring heat, such as removing screen. Also used a thin health care card as pry tool for removing display cable on step 11 as none of the tools provided in kit seemed thin enough to fit. The hardest part is to start getting the screen removed. I heated, used the suction cup, applied force, apply alcohol into crack. Rinse repeat until you loosen enough to get a pick under it. After working around all edges, there are rubbery gluey rectangles that act as clearance gaskets around the top and bottom speakers. these I used alcohol and the dull side of a small needle to work them off the screen.

Arthur Kay -

I wouldn't be intimidating if you are considering doing this repair. Just understand it will take time for a novice. For each step pause and review all guide resources available (this guide, newpower99 video, and step specific comments) to avoid any pitfalls.

Arthur Kay -

Of the 36 comments here, including this one, at least 8 mention the screen not working after completing the procedure. That is a pretty high failure rate, and I have not found here, or on line, any explanation other than that the person taking the phone apart broke it in the process. As careful as anyone reading this would be, I cannot believe that is the case, especially after having seen still working displays that were severely damaged.

My theory is that it is really easy to accidentally turn the phone on while assembling it, and a power surge blows a component on the screen as soon as it is attached. You would never know the phone was powered on without a screen being attached, and wouldn't see any sparks or lights to let you know what happened. The only way I have found to force the phone to power down with the buttons only, is to hold both the power and volume up buttons for about 30 seconds until you feel the vibration. When it doubt, it is probably a good idea to check that before attaching the screen.

George Hall -
