Motorola Edge (2022) Ultra Wide Camera Replacement

Geschrieben von: Spencer Day
  • Kommentare: 0
Motorola Edge (2022) Ultra Wide Camera Replacement

Schwierigkeitsgrad

Moderate

Schritte

33

Zeitaufwand

1 - 2 Stunden

Einleitung

Use this guide to replace ultra wide camera in your Motorola Edge (2022).

For your safety, discharge the battery below 25% before disassembling your phone. This reduces the risk of fire if the battery is accidentally damaged during the repair. If your battery is swollen, take appropriate precautions.

You'll need replacement adhesive to complete this repair.

  1. mAD3kSnCr6vwg3XZ

    • Completely power off your phone before you begin.

    • Heat an iOpener and apply it to the back cover's right edge for two minutes.

    • A hair dryer, heat gun, or hot plate may also be used, but be careful not to overheat the phone—the display and internal battery are both susceptible to heat damage.

  2. MbE5y3sb2aqHjA6U
    MbE5y3sb2aqHjA6U
    WytGf1BmOS1yXHb4
    p5PfJbxQFUavKAUv

    • Apply a suction cup to the back of the phone, as close to the middle of the right edge as possible.

    • Pull up on the suction cup with a strong, steady force to create a gap between the back cover and the frame.

    • Depending on the age of your phone, this may be difficult. If you're having trouble, apply more heat to the edge and try again.

    • Insert an opening pick into the gap.

  3. rJna1rVElAklcIi2
    rJna1rVElAklcIi2
    5N4dQrQwxTpQ25yS

    • Slide the pick along the right edge to slice the adhesive.

    • Leave the pick in the bottom right edge to prevent the adhesive from resealing.

  4. EGl4JjA5LhM2q4Xi

    • Apply a heated iOpener to the back cover's bottom edge for two minutes.

  5. MockXUEMMMHaQQAZ
    MockXUEMMMHaQQAZ
    LXJkGAu135AEFOLM

    • Rotate the pick around the bottom right corner to slice the adhesive.

  6. lZXNDP1KSF35rxp5
    lZXNDP1KSF35rxp5
    YZKAeoopsSfl3BFF

    • Slide the pick along the bottom edge to slice the adhesive.

    • Leave the pick in the bottom left edge to prevent the adhesive from resealing.

  7. cpWAKw5nN6CSwLOd

    • Apply a heated iOpener to the back cover's left edge for two minutes.

  8. ZAGaQkElY1fAlm55
    ZAGaQkElY1fAlm55
    ayfA1rtQC1FHEngH

    • Rotate the pick around the bottom left corner to slice the adhesive.

  9. PyLaOtQpObFwEFZP
    PyLaOtQpObFwEFZP
    2LjABBTQMNLquOPQ

    • Slide the pick along the edge to slice the adhesive.

    • Leave the pick in the top left edge to prevent the adhesive from resealing.

  10. heHJGmBRhAgBn4US

    • Apply a heated iOpener to the back cover's top edge for two minutes.

  11. DjjdJgl3TU6SjOMN
    DjjdJgl3TU6SjOMN
    KcIpBLWFMUUlIPZS

    • Rotate the pick around the top left corner to slice the adhesive.

  12. TfbpBv1I3FsLcfBb
    TfbpBv1I3FsLcfBb
    pbDmweuTYHMO5g1T

    • Slide the pick along the top edge to slice the adhesive.

  13. gm4MRaluYBfCZdED
    gm4MRaluYBfCZdED
    ZHPn4KBUTTCukD4J

    • Lift the back cover from the phone and remove it.

    • If the back cover is still stuck to the midframe, slide an opening pick around the edges of the phone until the cover separates completely.

  14. ROP5ItEctKDWUHCe
    ROP5ItEctKDWUHCe
    HrwCTYIdXO1QOWWE

    • Insert an opening pick between the right edge of the camera bezel and the motherboard cover.

    • Slide the pick back and forth along the edge to slice the adhesive.

  15. ITRWFUAUwwbfVHNk
    ITRWFUAUwwbfVHNk
    SnRiDtP25qhABnKe

    • Insert an opening pick between the left edge of the camera bezel and the motherboard cover.

    • Slide the pick back and forth along the edge to slice the adhesive.

  16. fGwlSy1w11Th4tJY
    fGwlSy1w11Th4tJY
    gEZLEQUtZpAO1bcR

    • Lift the camera bezel from the phone and remove it.

    • During reassembly:

    • This is a good point to test your phone's functionality before sealing it up. Use this guide to run a hardware test. Be sure to power your phone back down completely before you continue working.

    • If you are replacing the fingerprint sensor or screen assembly, use this guide to calibrate the fingerprint sensor.

    • Follow this guide to replace the back cover and camera bezel adhesive.

  17. fvdVUESBZWHrjTWy
    fvdVUESBZWHrjTWy
    yXDB2LeLUXKVqHnN

    • Insert the pointed end of a spudger underneath the tape that connects the wireless charging coil to the speaker on the bottom left of the phone.

    • Slowly lift the spudger up until the tape detaches from the speaker.

  18. dHmTqy3UEPRsg4o4
    dHmTqy3UEPRsg4o4
    aRZRmQGCr2b1b3vu

    • Insert a spudger underneath the tape that connects the wireless charging coil to the daughterboard cover on the bottom right of the phone.

    • Slowly lift the spudger up until the tape detaches.

  19. HMJWU2IpgLBOoZd2
    HMJWU2IpgLBOoZd2
    V2hvPgvTBMmqJUgE

    • Use a Phillips screwdriver to remove the 10 4 mm screws securing the motherboard cover.

  20. qctdvxBMpYxRdJDl
    qctdvxBMpYxRdJDl
    1hTvW1MarEt1LfP1

    • There's adhesive under the motherboard cover that secures the cover to the motherboard.

    • Apply a heated iOpener between the bottom of the motherboard cover and the top of the battery for two minutes.

  21. pbGCPAXqdD3v3piB
    pbGCPAXqdD3v3piB
    LDBLdNy2opvVXATY
    FiJBBpZs4mi2DpoC

    • Insert an opening tool between the motherboard cover and the midframe.

    • Pry up with the opening tool until you are able to grab the motherboard cover with your fingers.

    • During reassembly, press down around the perimeter of the motherboard cover to engage the clips.

  22. DfCLkfrXoPw1nTBD
    DfCLkfrXoPw1nTBD
    w32iOnUQ3FHtvQoq
    HkhVFTCGHMuAnsKu

    • Slowly pull the motherboard cover up and away from the phone and remove it.

  23. GNhLtKYYqDYEJvaA
    GNhLtKYYqDYEJvaA
    JSfUFsLWjbijRVhb

    • Use your fingers to move the graphite film that covers the battery out of the way.

  24. uuUbMAGVBhfX2hOL
    uuUbMAGVBhfX2hOL
    qAQyKNeFS54Bv4cq

    • Use the pointed end of a spudger to pry up and disconnect the battery's press connector.

    • To re-attach press connectors like this one, carefully align and press down on one side until it clicks into place, then repeat on the other side. Do not press down on the middle. If the connector is misaligned, the pins can bend, causing permanent damage.

  25. gVHXnZorZUC1yRQL
    gVHXnZorZUC1yRQL
    L1uMaKbfOuotqIEG

    • Use the pointed end of a spudger to pry up and disconnect the interconnect cable's press connector.

  26. JViY2TWAJ1vEtHbx
    JViY2TWAJ1vEtHbx
    pxaj1EjXGSerHapp

    • Use the pointed end of a spudger to pry up and disconnect the screen's press connector.

  27. fnHxhytCaHsB4BEm
    fnHxhytCaHsB4BEm
    GOIKlXAyYSGV5XFa

    • Use the pointed end of a spudger to pry up and disconnect the button assembly's press connector.

  28. M5VEnDjmGaUkKJXS
    M5VEnDjmGaUkKJXS
    KBiTOiBecZMpUb6K

    • Use the pointed end of a spudger to pry up and disconnect the white antenna's coaxial connector.

    • Pry under the rounded edge of the coaxial connector, not the straight edge. If you pry under the straight edge you may rip the socket off of the motherboard.

    • During reassembly, make sure to put the cable back in its clip on the motherboard.

    • To re-attach coaxial connectors like this one, hold the connectors in place and gently press them straight down with your finger or the pointed end of a spudger.

  29. UXm4hnMbIQ6Zlku5
    UXm4hnMbIQ6Zlku5
    XSCViaiV445VIHbL

    • Repeat the previous step on the black antenna's coaxial connector.

    • During reassembly, make sure to put the cable back in its clip on the motherboard.

  30. QLxsVZdkpxCaHArP
    QLxsVZdkpxCaHArP
    EhURIMbdUFu5QrXQ

    • Take care not to puncture or bend the battery with your tweezers—a punctured or bent battery may leak dangerous chemicals or cause a fire.

    • Use a pair of tweezers to grip the bottom right corner of the motherboard near the peg on the right edge of the phone.

    • Pull the motherboard up and over the peg with a slow, steady force. This should release a few clips securing the motherboard.

    • This may require multiple attempts and significant force, as the peg wedges the motherboard in very tightly.

  31. Mdp6gsU2XAKHRBDP
    Mdp6gsU2XAKHRBDP
    gjqMUxZbOHyLX1FQ

    • Insert the pointed end of a spudger under the middle of the motherboard's bottom edge.

    • Gently pry up on the motherboard to release the clips securing it.

  32. ik4rwsS2pxXbEvQZ
    ik4rwsS2pxXbEvQZ
    ZjDEGukYSJCngrgJ

    • Remove the motherboard from the phone.

    • During reassembly:

    • Clean off the old thermal paste from the midframe and motherboard using isopropyl alcohol and a microfiber cloth. Apply new thermal paste before reassembly.

    • Ensure that all of the cables that connect to the motherboard (interconnect, battery, antenna, display, and button assembly) are out of they way so they do not get stuck under the motherboard when it's reinserted.

  33. ZfC6vABfJr3NXcgw
    ZfC6vABfJr3NXcgw
    kvwbZaCuIPKMLrGS

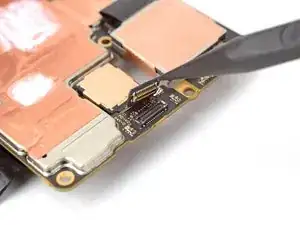

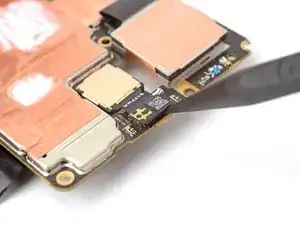

    • Flip over the motherboard to access the ultra wide camera.

    • Use the pointed end of the spudger to pry up and disconnect the ultra wide camera's press connector.

    • There's no adhesive securing the camera to the motherboard. Be careful disconnecting the press connector, as it may eject the camera.

    • Remove the ultra wide camera.

Abschluss

Compare your new replacement part to the original part—be sure to transfer remaining components and remove adhesive backings from the new part before installing.

To reassemble your device, follow the instructions in reverse order.

Take your e-waste to an R2 or e-Stewards certified recycler.

Repair didn’t go as planned? Try some basic troubleshooting, or ask our Answers community for help.
