Einleitung

Use this guide to replace any or all of the loudspeakers in your Samsung Galaxy Tab S7+.

The loudspeaker assembly is comprised of four speakers that are located on each corner of the device.

There is a significant chance that you may break the unreinforced and fragile display panel during this procedure. Be sure to apply plenty of heat and be extremely careful during the prying stage.

For your safety, discharge the battery below 25% before disassembling your tablet. This reduces the risk of fire if the battery is accidentally damaged during the repair. If your battery is swollen, take appropriate precautions.

Some photos show the loudspeakers being replaced individually, but, if you follow the steps in order, all four loudspeakers should be removed.

You'll need replacement adhesive in order to complete this repair.

  1. 2NfdVT3Z4g1ZNL2V
    • Completely power off your device before you begin.

    • Apply a heated iOpener to the bottom edge of the device to loosen the adhesive underneath.

    • The display adhesive of the Galaxy Tab S7+ is extremely strong, and it's likely you need to reheat and reapply the iOpener several times before starting the display removal and during the removal procedure.

    • A hair dryer, heat gun, or hot plate may also be used, but be careful not to overheat the device.

  2. pUKUy1REmsiHN5iP
    pUKUy1REmsiHN5iP
    gyqtMjSUYXATwNUH
    vDLgxA4JfbsJvVN2
    • While you're waiting for the adhesive to loosen, note the following:

    • There's a long circuit board attached to the screen that sits parallel to the bottom edge.

    • Don't insert the pick more than 2 mm to avoid damaging the circuit board.

    • This image shows an example of the display separating from the glass panel.

    • Don't insert the pick more than 3 mm to avoid damaging the display.

  3. h6wmhRLGOcepVyGB
    h6wmhRLGOcepVyGB
    bqUIoJIuuxGcPCAm
    CvYtnhYQ1CLtfUte
    • Once the screen is warm to touch, apply a suction handle to the bottom edge of the screen and as close to the edge as possible.

    • If your screen is badly cracked, covering it with a layer of clear packing tape may allow the suction cup to adhere. Alternatively, very strong tape may be used instead of the suction handle. If all else fails, you can superglue the suction cup to the screen.

    • Lift the screen with the suction handle to create a small gap between the screen and the frame.

    • Insert an opening pick into the gap between the frame and the screen.

    • Don't insert the pick more than 2 mm to avoid damaging the circuit board.

    • Leave the opening pick in place to prevent the adhesive from resealing.

  4. pZeWxIWPiMbKkVCr
    pZeWxIWPiMbKkVCr
    DWysWRIegKJ3Zxl1
    XcjcDcNBRmlKZqhj
    • Insert a new opening pick into the gap you created.

    • Slide the new pick along the bottom edge of the device towards the bottom-right corner.

  5. uKlDEsgoiBBvY3Zs
    • Apply a heated iOpener to the right edge of the device to loosen the adhesive underneath.

  6. QHOAFXpZZwQQ5Lml
    QHOAFXpZZwQQ5Lml
    tyt1FMVSbM1MCTZ6
    LvLHPgJvxvIjKCUp
    • Rotate the opening pick around the bottom-right corner of the device.

    • Leave the opening pick in place to prevent the adhesive from resealing.

  7. Ux4GTHVEgxjPGK3n
    Ux4GTHVEgxjPGK3n
    As2DCWARjrdYXPhr
    gSLXWUQrZNK1yeWr
    • Insert a new opening pick into the gap you created.

    • Don't insert the pick more than 3 mm to avoid damaging the components along the right edge.

    • Slide the new pick along the right edge of the device towards the top-right corner.

  8. HU6RIAXg2QwoZN4k
    • Apply a heated iOpener to the top edge of the device to loosen the adhesive underneath.

  9. lD2MAF1OCrCFPbEN
    lD2MAF1OCrCFPbEN
    mIw3T1s3pqhyOMER
    JoqMelTFskQQ36hA
    • Rotate the opening pick around the top-right corner of the device.

    • Leave the opening pick in place to prevent the adhesive from resealing.

  10. LUAJ2MnN3bfTyKno
    LUAJ2MnN3bfTyKno
    YCag2XJs1SvTabcW
    YsZ1ShNuSyogs4RB
    • Insert a new opening pick into the gap you created.

    • Slide the new pick along the top edge of the device towards the top-left corner.

  11. fMCg54njxAwyWMEV
    • Apply a heated iOpener to the left edge of the device to loosen the adhesive underneath.

  12. BfZ3xJYsiGL4igkE
    BfZ3xJYsiGL4igkE
    EJHHOUk3JVPtWC1N
    XchZUpxLpZxYmsHs
    • Rotate the opening pick around the top-left corner of the device.

    • Leave the opening pick in place to prevent the adhesive from resealing.

  13. dFQcEjUDv4vgdKrF
    dFQcEjUDv4vgdKrF
    sBbSDhuTHTVk1EcL
    FEAsrhQRiuK6nume
    • Insert a new opening pick into the gap you created.

    • Slide the new pick along the left edge of the device towards the bottom-left corner.

  14. hFDIWJQOZWsblOGJ
    hFDIWJQOZWsblOGJ
    XCr4PdQpcRlnZ5xi
    YYpQ2jfcuDZ6RfwY
    • Rotate the opening pick around the bottom-left corner of the device.

    • Leave the opening pick in place to prevent the adhesive from resealing.

    • At this point, the perimeter of the screen should be separated from the frame. If there's still resistance around the edges of the screen, use an opening pick to cut the adhesive again.

  15. UkOrkkKjMYuSqH3U
    UkOrkkKjMYuSqH3U
    VEmpR2AZ1iULvEsn
    UZTCkKtTlkasKndD
    • Don't try to remove the screen all the way yet; it's still connected to the frame by a flex cable.

    • With the top of the device facing you, pull the screen up and away from you like you're opening a book.

    • Rest the screen upside down and parallel to the frame before continuing.

    • Don't twist the screen or move it too far away from the frame to avoid damaging the flex cable.

    • During reassembly:

    • This is a good point to power on your tablet and test all functions before sealing it up. Be sure to power your tablet back down completely before you continue working.

    • Remove any adhesive chunks with a pair of tweezers or your fingers. Use some high concentration (over 90%) isopropyl alcohol to wipe away any adhesive residue.

    • If you're using Samsung custom-cut adhesives, follow this guide. If you're using double-sided tape, follow this guide.

  16. FPMrkFmmoHIlCcaY
    FPMrkFmmoHIlCcaY
    1VoICHCo4qJNkU5X
    • Use the flat end of a spudger to pry up and disconnect the display cable's press connector secured to the screen.

    • To re-attach press connectors like this one, carefully align and press down on one side until it clicks into place, then repeat on the other side. Do not press down on the middle. If the connector is misaligned, the pins can bend, causing permanent damage.

  17. OUf6KFT3xax4VObQ
    OUf6KFT3xax4VObQ
    EikEZB2HIDD2xAmj
    • Use tweezers, or you fingers, to hold the display cable in place.

    • Use the flat end of a spudger to pry up and disconnect the fingerprint sensor's press connector attached to the display cable.

    • Take note of the display cable's position; you will need to bend it in the same way when connecting a new screen.

  18. NRaiy5IHwKnwYmAJ
    NRaiy5IHwKnwYmAJ
    h2lAXccTlcnUaH2Z
    etBeyLxafULGhkHQ
    • Remove the screen from the frame.

  19. nYlFwZIsycL2y1n5
    nYlFwZIsycL2y1n5
    fPlNtyuZGKlR1rdO
    2DFRXYBjIdCO14d1
    • Use a Phillips #00 screwdriver to remove the fifty 3 mm-long screws securing the frame bracket to the frame.

    • The third photo has the same screws marked by quadrant. Use this photo during reassembly to help account for all the screws:

    • Bottom-left = 9 screws

    • Bottom-right = 14 screws

    • Top-right = 12 screws

    • Top-left = 15 screws

    • If you're reassembling with the Samsung Self-Repair kit, be sure to replace the screws with new ones labeled #3229.

  20. EoDnLuHTCo2gjkLv
    EoDnLuHTCo2gjkLv
    ElfpMDIFbWdkIrQZ
    Q4VJEjpZgwkdJHFb
    • Lift the frame bracket away from the frame, making sure to thread the display cable through its socket.

  21. AwgdXSRtOrbYnbmJ
    AwgdXSRtOrbYnbmJ
    BKf5SHUheTsBnKAZ
    • Use the flat end of a spudger to pry up and disconnect the battery's press connector secured to the motherboard.

  22. eDhBTYrjyjNyVY1U
    eDhBTYrjyjNyVY1U
    rctHuFuuUIQkuhXq
    pgRboXmFS4MCh3kj

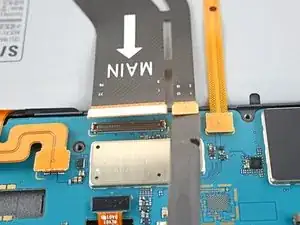

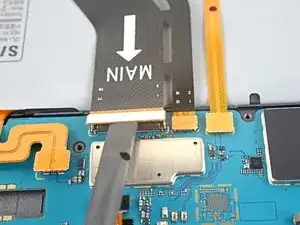

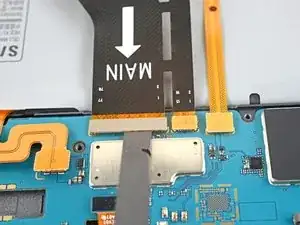

    • Use the flat end of a spudger to pry up and disconnect the display cable's press connector secured to the motherboard.

    • Repeat for the fingerprint sensor cable attached to display cable.

  23. tuQRpD6kSWCYuJqs
    tuQRpD6kSWCYuJqs
    PYoCtLTShF2C3Man

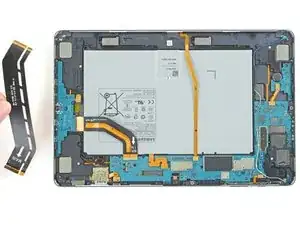

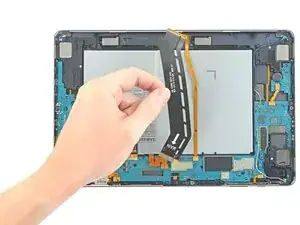

    • Use your fingers to remove the display cable.

  24. GUNS1T1mvWcxUy1a
    GUNS1T1mvWcxUy1a
    p3mSKMZ2xDexfwGb

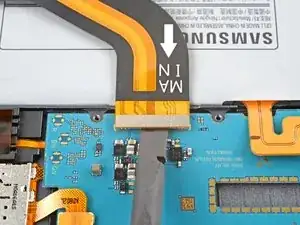

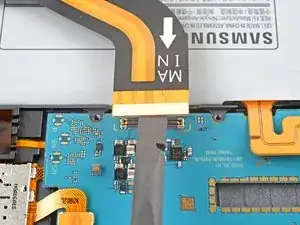

    • Use the flat end of a spudger to pry up and disconnect the daughterboard interconnect cable's press connector secured to the motherboard.

  25. atJZrolNAQajGCSH
    atJZrolNAQajGCSH
    NhBytggfVmLUVClx

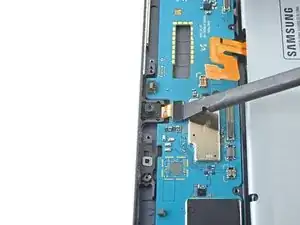

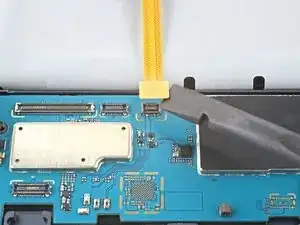

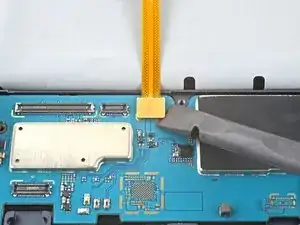

    • Use the flat end of a spudger to pry up and disconnect the keyboard dock port cable's press connector secured to the motherboard.

  26. XwUdBFXoIShURIBM
    XwUdBFXoIShURIBM
    QKkG1RGWMELaOHWd
    XQHer54IVXwbXAVJ

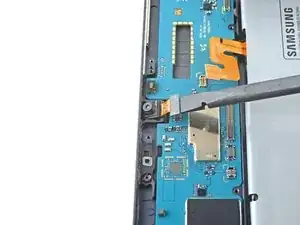

    • Use the flat end of a spudger to pry up and disconnect the front camera's press connector secured to the motherboard.

    • Use tweezers, or your fingers, to remove the front camera.

  27. uWSeXSgyFl4wQ3Xb
    uWSeXSgyFl4wQ3Xb
    V6WRAkpSCU6xfFCH

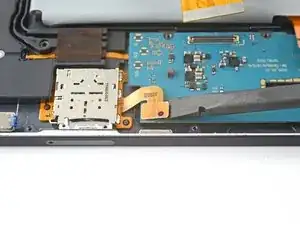

    • Use the flat end of a spudger to pry up and disconnect the microSD card reader's press connector secured to the motherboard.

  28. LjJp4VJy3PBLv1YH
    LjJp4VJy3PBLv1YH
    ullFKhLcLFDLNPji
    ifXKAdBuXTs2cPdY

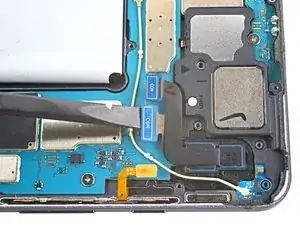

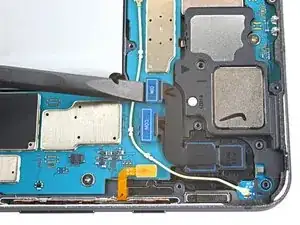

    • Use the flat end of a spudger to pry up and disconnect the rear camera's two press connectors secured to the motherboard.

  29. UDUdjDMuqclbPSIK
    UDUdjDMuqclbPSIK
    RGGktbWQcqnPXGKq

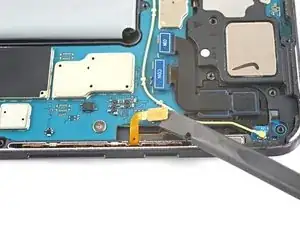

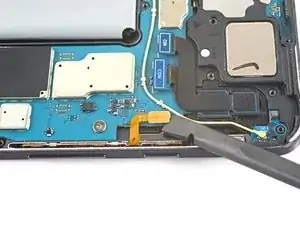

    • Use the flat end of a spudger to pry up and disconnect the power button cable's press connector secured to the motherboard.

  30. TB6yKR3LZqDO2H4O
    TB6yKR3LZqDO2H4O
    6COiVF5jdOBZggQ4

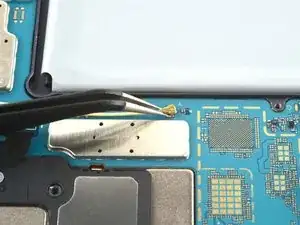

    • Use the point of a spudger to carefully pry up and disconnect the bottom-right loudspeaker's yellow coaxial cable from the motherboard.

    • Take care not to puncture or bend the battery with your tool—a punctured or bent battery may leak dangerous chemicals or cause a fire.

    • During reassembly, these can be tricky to reconnect. One at a time, hold each connector in place over its socket and press down with the flat end of a spudger. The connector should snap into place.

  31. kY4tCtWCgkyT2BTv
    kY4tCtWCgkyT2BTv
    OwloYKweKfRdS2DA
    BLDmbA2oNZDomS5T

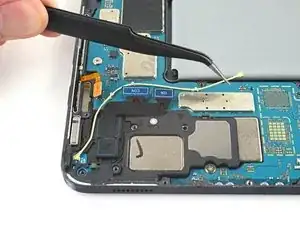

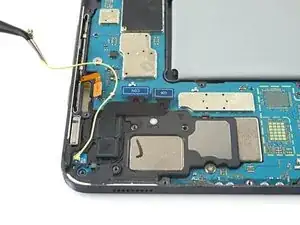

    • Pull the coaxial cable away from the frame, making sure the cable is completely unthreaded from the motherboard.

  32. HvAgUvpx6jIhXX1p
    HvAgUvpx6jIhXX1p
    fudwNOUBnCOYleeU

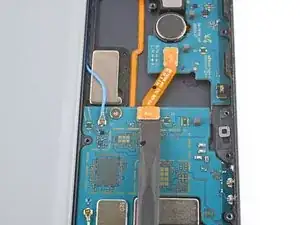

    • Use the flat end of a spudger to pry up and disconnect the interconnect cable's press connector secured to the motherboard.

  33. i1S2fBiGVPPZcXEl
    i1S2fBiGVPPZcXEl
    AMRFAB535RI5RYgL

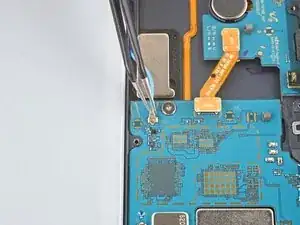

    • Use the point of a spudger to carefully pry up and disconnect the top-right loudspeaker's blue coaxial cable from the motherboard.

  34. VXsXUe23MJVE2tJA
    VXsXUe23MJVE2tJA
    BlfHUBBTOGOTqjtt

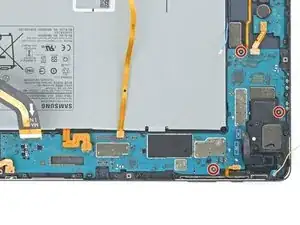

    • Use a Phillips #00 screwdriver to remove the three 2 mm screws securing the motherboard to the frame.

  35. VNRTTMiVTXhv6oNy
    VNRTTMiVTXhv6oNy
    kdCTnaJkVNDuljWk
    hTIHKqtcYRBCPvFq

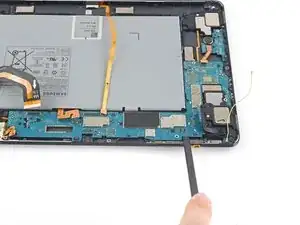

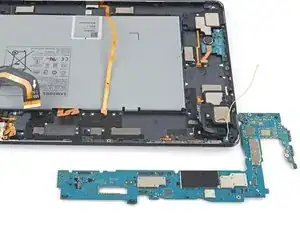

    • Insert a spudger into a gap between the motherboard and the frame.

    • Pry up with the spudger to release the motherboard from its clips.

    • Remove the motherboard.

    • During reassembly, refasten the motherboard screws first to properly align it into place, then reconnect the cables.

  36. snREXbOc21MhNYXY
    snREXbOc21MhNYXY
    MiaGNJ4SdlDDQKRH
  37. pBAsaQy6pXWGAEXP
    pBAsaQy6pXWGAEXP
    e3uaegORa2iS5DRD
    EbNfQnPd3AhVBuxB
    • Pull the bottom-left coaxial cable away from the frame, making sure the cable is completely unthreaded from the frame.

  38. VWIWB3HSmcQ4sXHN
    VWIWB3HSmcQ4sXHN
    mnUUqbpcxQZYAjj3
    HGKpDagsHIWraVZE
    • Use the flat end of a spudger to pry up and disconnect the antenna board's interconnect cable secured to the antenna board.

    • Use tweezers, or your fingers, to remove the cable.

  39. NPZsFwQIYcYTFUB1
    NPZsFwQIYcYTFUB1
    uCm1I1dYeNOmIaki
    • Use a Phillips 00 screwdriver to remove the 2 mm screw securing the antenna board to the frame.

  40. akLRc5CkVeHZYcR5
    akLRc5CkVeHZYcR5
    eEYmqTUqEP3y6SBQ
    QWCsLuvuSBhvRCNb
    • Insert a spudger into a gap between the antenna board and the frame.

    • Pry up with the spudger to separate the antenna board from the frame.

    • Remove the antenna board.

  41. SLTKF6TOFioTR3fk
    • The bottom-left loudspeaker's connector is secured to the frame by adhesive; use heat to avoid tearing the connector.

    • Apply a heated iOpener to the left edge of the device for two minutes.

    • A hair dryer, heat gun, or hot plate may also be used, but be careful not to overheat the device.

  42. M6PgpRjYdlE5YydG
    M6PgpRjYdlE5YydG
    FRQFSOkchQNEiroA
    • Insert an opening pick between the bottom-left loudspeaker's copper connector pads and the frame.

    • Pry up while slicing the adhesive to separate the pad from the frame.

  43. 4goWrmSHCaaRULWW
    4goWrmSHCaaRULWW
    swAPAnYmKPsfOYGV
    ADrJNVTUbUxhcxq3
    • Slice with the opening pick along the bottom of the connector's cable to completely separate it from the frame.

  44. nQqiUtEtOt52TPbA
    nQqiUtEtOt52TPbA
    NISR4qNHWGCpNwXN
    yrvQtPgxxWX1pWea
    • Use a spudger to pry up and separate the loudspeaker from the frame.

    • Remove the loudspeaker.

  45. T3EGWaWkeBLnBm4e
    • The top-left loudspeaker's connector is secured to the frame by adhesive; use heat to avoid tearing the connector.

    • Apply a heated iOpener to the left edge of the device for two minutes.

    • A hair dryer, heat gun, or hot plate may also be used, but be careful not to overheat the device.

  46. dwEUu6FbGI4dNdEN
    dwEUu6FbGI4dNdEN
    FavfYxEIbREUgUif
    • Insert an opening pick between the loudspeaker cable and the frame.

    • Slice the adhesive while prying up with the pick to separate the cable from the frame.

  47. uPEVFnGCDmcr6axd
    uPEVFnGCDmcr6axd
    uPWNYUMeRmAHhulH
    fAXMMmURvSfrnbSQ
    • Use a spudger to pry up and separate the loudspeaker from the frame.

    • Remove the loudspeaker.

  48. JGvn5CVDN4qpdJVN
    • The top-right loudspeaker's connector is secured to the frame by adhesive; use heat to avoid tearing the connector.

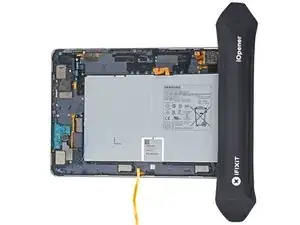

    • Apply a heated iOpener to the left edge of the device for two minutes.

    • A hair dryer, heat gun, or hot plate may also be used, but be careful not to overheat the device.

  49. dWuWmCLmedvCoLpq
    dWuWmCLmedvCoLpq
    LS6KRVISZhouMAx2
    wFvKy32wGoqoTKbF

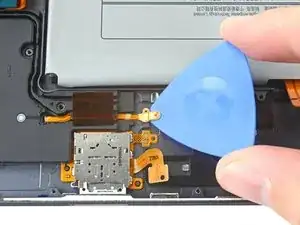

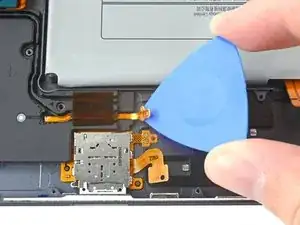

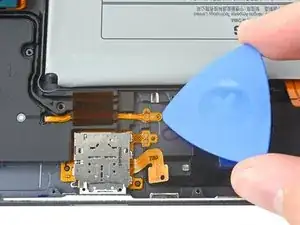

    • Insert an opening pick between the loudspeaker's copper connector pads and the frame.

    • Slice the adhesive while prying up with the pick to separate the pads from the frame.

  50. wnZiLZOJniV45IeF
    wnZiLZOJniV45IeF
    WJqHM2lRpOTYlWUH
    vbw5bblnTBqVdMek

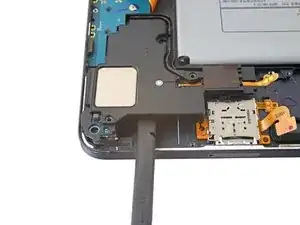

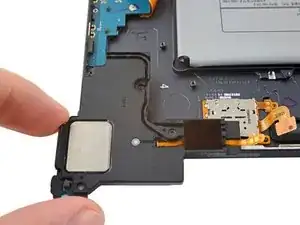

    • Use a spudger to pry up and separate the loudspeaker from the frame.

    • Remove the loudspeaker.

  51. Y1bGFEqkxKDsLLNH
    • The bottom-right loudspeaker's connector is secured to the frame by adhesive; use heat to avoid tearing the connector.

    • Apply a heated iOpener to the right edge of the device for two minutes.

    • A hair dryer, heat gun, or hot plate may also be used, but be careful not to overheat the device.

  52. LDKIFRLAprb35TmD
    LDKIFRLAprb35TmD
    6JqwuTvxxD6YtbQo
    KqIdDhSXMFe3H5fS
    • Insert an opening pick between the loudspeaker cable and the frame.

    • Slice the adhesive while prying up with the pick to separate the cable from the frame.

  53. PhDJAGSFaS1Q4cUS
    PhDJAGSFaS1Q4cUS
    4EKCHFNVQy2AOvP1
    yEk4FkxgZKTIUtdY
    • Use a spudger to pry up and separate the loudspeaker from the frame.

    • Remove the loudspeaker.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Compare your new replacement part to the original part—you may need to transfer remaining components or remove adhesive backings from the new part before you install it.

Repair didn’t go as planned? Try some basic troubleshooting, or ask our Samsung Galaxy Tab S7+ Answers community for help.

Alex Diaz-Kokaisl

Mitglied seit: 16/01/22

69204 Reputation

0 Kommentare
