Einleitung
Back panel removal is required when reaching RAM, HDD, Optic Drive, Wi-Fi Card, Cooling fan/Heatsink and CPU. This guide will display the steps needed to remove the back panel.
Werkzeuge
-
-

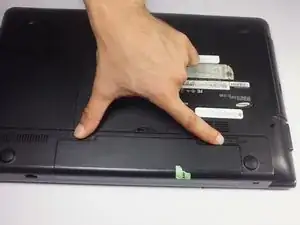

Locate two notches above the battery.
-
Slide both battery locking notches to either side to remove the battery.
-
Pull the battery out.
-
-
-

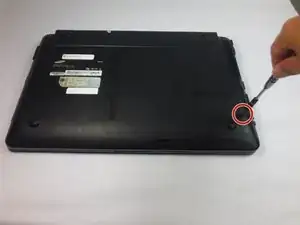

Using the Phillips #0 screwdriver, unscrew the one 5mm screw.
-
Using the blue plastic opening tools, wedge one in between the back panel and the laptop.
-
Carefully remove the back panel..
-
Abschluss
To reassemble your device, follow these instructions in reverse order.
