iPad 9 Button Control Cable Replacement

Geschrieben von: Alex Diaz-Kokaisl

Kommentare: 2

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

1 - 3 Stunden

Einleitung

Use this guide to replace the button control cable in your iPad 9 Wi-Fi.

Note: this guide is for the Wi-Fi version only. For the LTE version, click here.

The button control cable has the lock button and volume buttons integrated within it. You’ll need to replace the entire cable if any of those buttons are malfunctioning.

For your safety, discharge the battery below 25% before disassembling your iPad. This reduces the risk of fire if the battery is accidentally damaged during the repair. If your battery is swollen, take appropriate precautions.

Be very careful when you isolate the battery using a battery blocker. The battery contacts are easily damaged, resulting in irreversible damage. If you choose to complete the guide without isolating the battery, avoid using metal tools except when completely necessary (like when removing screws) to prevent shorting the battery and damaging sensitive circuit components.

Some photos in this guide are from a different model and may contain slight visual discrepancies, but they won't affect the guide procedure.

Werkzeuge

Schritt 1

Be sure to power off your iPad before you begin your repair.
Heat an iOpener and apply it to the left edge of the iPad for two minutes.

Schritt 2

While you're waiting for the adhesive to loosen, note the following areas that are sensitive to prying:
Front camera
Antennas
Display cables
Ambient light sensors

Schritt 3

The next two steps demonstrate the Anti-Clamp, a tool we designed to make the opening procedure easier. If you aren't using the Anti-Clamp, skip down two steps for an alternate method.
For complete instructions on how to use the Anti-Clamp, check out this guide.
Elevate the iPad enough for the Anti-Clamp's arms to rest above and below the screen.
Pull the blue handle towards the hinge to disengage opening mode.
Position the suction cups near the left edge of the iPad—one on the front, and one on the back.
Push down on the cups to apply suction to the desired area.
If you find that the surface of your device is too slippery for the Anti-Clamp to hold onto, you can use packing tape to create a grippier surface.

Schritt 4

Push the blue handle away from the hinge to engage opening mode.
Turn the handle clockwise until you see the cups start to stretch.
Make sure the suction cups remain aligned to each other. If they begin to slip out of alignment, loosen the suction cups slightly and realign the arms.
Wait one minute to give the adhesive a chance to release and present an opening gap.
Insert an opening pick under the digitizer when the Anti-Clamp creates a large enough gap.
If the Anti-Clamp doesn't create a sufficient gap, apply more heat to the area and rotate the handle clockwise half a turn.
Don't crank more than a half a turn at a time, and wait one minute between turns. Let the Anti-Clamp and time do the work for you.
Skip the next step.

Schritt 5

This step shows how to open the iPad using a suction handle.
If your display is badly cracked, covering it with a layer of clear packing tape may allow the suction cup to adhere. Alternatively, very strong tape may be used instead of the suction cup. If all else fails, you can superglue the suction cup to the broken screen.
Once the screen is warm to touch, apply a suction handle to the left edge of the screen and as close to the edge as possible.
Lift the screen with the suction handle to create a small gap between the digitizer and the frame.
Insert an opening pick into the gap between the digitizer and the frame.

Schritt 6

Insert a second opening pick into the gap you just created.
Slide the pick towards the bottom-left corner of the iPad to separate the adhesive.
Leave the pick in the bottom-left corner to prevent the adhesive from re-sealing.
Don't worry if you can see the opening pick through the digitizer—just pull the pick out. The LCD screen shouldn't be damaged, but you risk leaving behind hard-to-clean adhesive.

Schritt 7

If the opening pick gets stuck in the adhesive, "roll" the pick along the side of the iPad to continue separating the adhesive.

Schritt 8

Slide the first opening pick towards the top-left corner of the iPad to separate the adhesive.
Leave the pick in the top-left corner to prevent the adhesive from re-sealing.

Schritt 9

Heat an iOpener and apply it to the top edge of the iPad for two minutes.

Schritt 10

Rotate the pick around the top-left corner of the iPad to separate the adhesive.

Schritt 11

Slide the opening pick along the top edge of the iPad, stopping just before you reach the front camera.
Avoid sliding the pick over the front camera, as you may damage the lens. The following steps will show how to prevent this.

Schritt 12

Pull the pick out until only the tip is between the digitizer and the frame.
Slide the pick above the front camera to separate the adhesive.
Leave the pick near the right side of the front camera before continuing.

Schritt 13

Re-insert the pick and slide it towards the top-right corner of the iPad to completely separate the top adhesive.
Leave the pick in the top-right corner to prevent the adhesive from re-sealing.

Schritt 14

Heat an iOpener and apply it to the right edge of the iPad for two minutes.

Schritt 15

Rotate the pick around the top-right corner of the iPad to separate the adhesive.

Schritt 16

Insert a new opening pick and slide it to the middle of the iPad's right edge.
The display cables are located approximately halfway from the bottom of the iPad. Stop sliding once you reach 3 inches from the bottom of the iPad.

How many inches exactly?

Annika Faelker -

Schritt 17

Heat an iOpener and apply it to the bottom edge of the iPad for two minutes.

Schritt 18

Slide the bottom-left pick to the bottom-left corner to separate the adhesive.
Don't fully rotate the pick around the corner, as you may damage the antenna.
The third image shows the bottom-left antenna underneath the digitizer.
Leave the pick in the corner before moving to the next step.

Schritt 19

Insert a new opening pick into the gap you just created on the bottom edge of the iPad.
Slide the pick over the antenna, stopping just before the home button.
Only slide the pick towards the home button and not away from it, as you may damage the antenna.
If you need to slide the pick over this section again, remove and re-insert it at the bottom-left corner.
Leave the pick to the left of the home button before continuing.

Schritt 20

Insert an opening pick into the gap you just created.
Slide the pick underneath the home button and towards the bottom-right corner, making sure only the tip is between the digitizer and the frame.

Schritt 21

Re-insert the pick and slide it towards the home button to completely separate the bottom adhesive.
Only slide the pick towards the home button and not away from it, as you may damage the antenna.
If you need to slide the pick over this section again, remove and re-insert it at the bottom-right corner.
Leave the pick to the right of the home button before continuing.

Schritt 22

Heat an iOpener and apply it to the right edge of the iPad for two minutes.

Schritt 23

Be very careful with this step. Take your time, ensure the adhesive is hot and soft, and make sure you separated all of the adhesive with a pick. Don't be afraid to stop and reheat.
Twist the two opening picks on the left corners of the iPad to lift the digitizer slightly, separating the the last of the adhesive in the process.
If there's a significant amount of resistance, reheat the edges and work along them with an opening pick.

Schritt 24

Lift the left edge of the digitizer upwards to further separate the adhesive along the right edge of the iPad.
Throughout the remaining steps, try not to touch the back side of the glass or the surface of the LCD with your fingers—any fingerprints can be tough to clean off.

Schritt 25

While supporting the digitizer, slide an opening pick between the two digitizer cables to separate the last of the adhesive.
Be careful not to damage the two digitizer cables with your opening pick.

Schritt 26

Once all of the adhesive has been separated, open the digitizer like a book and rest it parallel to the iPad.
During reassembly, clean the remaining adhesive from the frame—and the digitizer if you're re-using it—with isopropyl alcohol. Replace the adhesive with our adhesive strips or pre-cut adhesive cards.
Be mindful of the display cables when reassembling the iPad. Make sure they are folded properly underneath the LCD screen to prevent any damage.

Schritt 27

Use a Phillips screwdriver to remove the four 4.2 mm-long screws securing the LCD to the frame.
Remove any tape obscuring the LCD screws.
Throughout this repair, keep track of each screw and make sure it goes back exactly where it came from to avoid damaging your iPad.

In addition to these four screws, my iPad 9th Gen LCD was glued to each of the four corners with black silicone adhesive so be careful!. A quick search brought up this handy video: https://www.youtube.com/watch?v=ATCAYY75... which was most helpful in filling in the blanks!

Si Bob -

Schritt 28

Don't attempt to fully remove the LCD during this step, as it's still connected by several cables at the home button end.
Only lift the LCD from the front-facing camera end.
Use the flat end of a spudger to pry the LCD out of its recess just enough to grab it with your fingers.
Flip the iPad LCD like a page in a book, lifting near the camera and turning it over the home button end of the frame.
Lay the LCD down onto a clean, soft, lint-free surface to allow access to the display cables.

Schritt 29

Use a Phillips screwdriver to remove the 2.3 mm-long screw securing the battery connector to the logic board.

Schritt 30

These photos show what the battery connector looks like underneath the logic board. Use these photos as a reference while you safely disconnect the battery.
Notice that the battery connector has cantilever springs on the logic board that press against the battery contact pads. Since both the logic board and battery are glued down, you'll need to slide something thin and flexible between the contact points to disconnect the battery.

Schritt 31

Follow the instructions carefully if you're isolating the battery using a battery blocker. The battery contacts are easily bent or broken, resulting in irreversible damage.
Ensure that the iFixit logo on the battery blocker is facing up.
Slide the battery blocker underneath the logic board's battery connector at a 35 degree angle.
Don't push the battery blocker underneath the connector with excessive force. If you're having trouble fitting the battery blocker underneath the logic board, you can try using a playing card to disconnect the battery instead.
The battery blocker or playing card ideally should slide under the logic board without encountering any blockages. After insertion, it should rest at about a 15 degree angle.
Leave the battery blocker in place as you work.

Schritt 32

Use a Phillips screwdriver to remove the three 1.4 mm-long screws securing the display cable bracket.

Schritt 33

Remove the display cable bracket.

Schritt 34

Use the flat end of a spudger to pry up and disconnect the LCD cable press connector.
To re-attach press connectors like this one, carefully align and press down on one side until it clicks into place, then repeat on the other side. Do not press down on the middle. If the connector is misaligned, the pins can bend, causing permanent damage.

Schritt 35

Remove the LCD completely and rest it face down on a clean, soft, lint-free surface.

Schritt 36

Use a pair of tweezers to peel off the tape covering the home button cable ZIF connector.

Schritt 37

Use a spudger, an opening tool, or your fingernail to flip up the small, hinged locking flap on the home button cable ZIF connector.

Schritt 38

Use a pair of tweezers to pull the home button ribbon cable straight out of the ZIF connector.

Schritt 39

Use the flat end of a spudger to pry up and disconnect the two digitizer cable press connectors.
To avoid damaging your iPad, pry only on the connectors themselves, not on the socket on the logic board.

Schritt 40

Use the flat end of a spudger to pry up the buffer block near the bottom-right corner of the iPad.
Take care not to puncture or tear the home button ribbon cable.
Remove the buffer block.

Schritt 41

The home button cable is secured with some light adhesive.
Use a pair of tweezers to peel the home button cable away from the frame.

Schritt 42

Remove the front panel assembly.
Use an opening pick to cut away any residual adhesive that may still be connecting the front panel assembly to the frame.
If you experience "ghost" or "phantom" touch input issues with your new display, this can be resolved by adding a layer of very thin insulating tape, such as Kapton (polyimide) tape, to the highlighted areas on the back of the panel. iFixit replacement digitizers come with the proper insulation and should not require the addition of any tape.
Without the proper insulation, these areas of the digitizer can ground out against other components, causing touch input malfunction.
The insulation is not visible to the naked eye, and is different from the foam dust barrier strips found on many iPads.
During reassembly, before installing a display, remove any remaining adhesive from the iPad, and clean the glued areas with high concentration isopropyl alcohol (90% or greater) and a lint-free cloth. This helps prep the iPad for fresh adhesive and ensures that it will bond properly.
Test your iPad's functions and install pre-cut adhesive strips to the back of the display using our display adhesive application guide before sealing it up.

Schritt 43

Use a Phillips screwdriver to remove the three 1.4 mm-long screws securing the upper component bracket.

Schritt 44

Use tweezers, or your fingers, to remove the upper component bracket from the frame.

Schritt 45

Use the flat end of a spudger to pry up and disconnect the rear camera press connector.

Schritt 46

Heat an iOpener and apply it to the rear camera for thirty seconds.

Schritt 47

Use a spudger to pry the rear camera out of the frame.
Use tweezers, or your fingers, to remove the rear camera.

Schritt 48

The right ambient light sensor is lightly adhered to the frame.
Use tweezers, or your fingers, to remove the sensor.

Schritt 49

Peel the right ambient light sensor towards the right edge of the device, enough to access the screw behind it.

Schritt 50

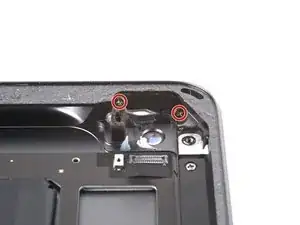

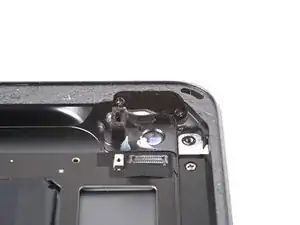

Use a Phillips screwdriver to remove the two 2.3 mm-long screws securing the lock button bracket.

Schritt 51

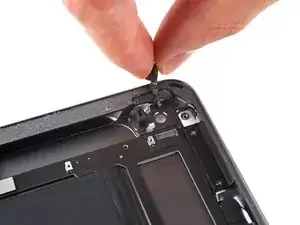

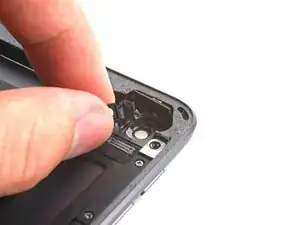

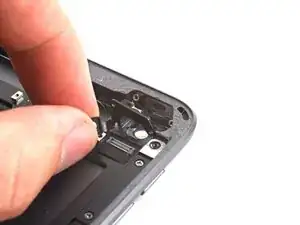

Use your fingers to pull the power button bracket out of its recess.

Schritt 52

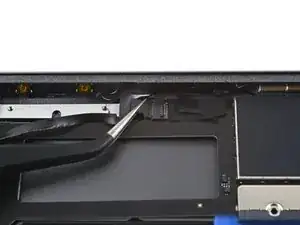

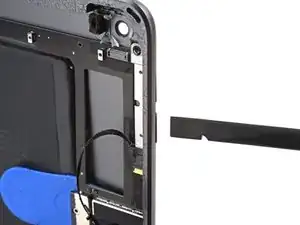

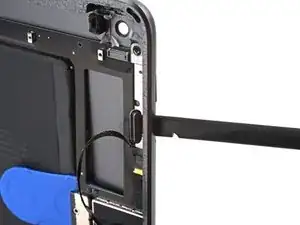

The button control cable is lightly adhered to the side of the volume button bracket.
Peel the button control cable away from the volume button bracket.

Schritt 53

Use a Phillips screwdriver to remove the two 2.2 mm-long screws securing the volume button bracket to the rear case.

Schritt 54

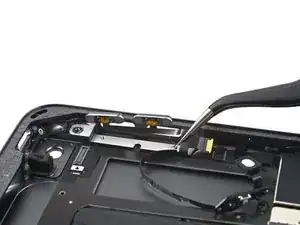

Use tweezers, or your fingers, to pull the volume button bracket away from the device's edge.
Remove the volume button bracket.

Schritt 55

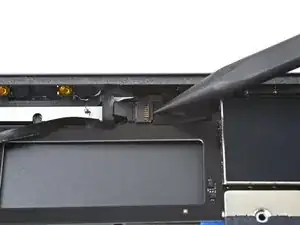

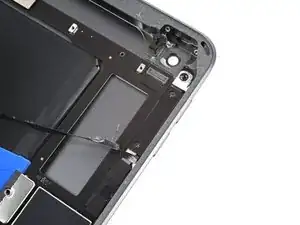

Peel off any tape covering the button control cable ZIF connector.

Schritt 56

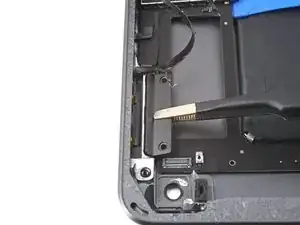

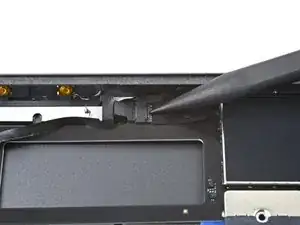

Use the tip of a spudger, an opening tool, or your fingernail to flip up the small, hinged locking flap on the button control cable's ZIF connector.

Schritt 57

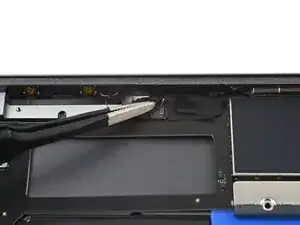

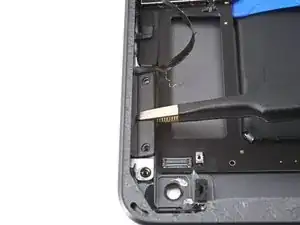

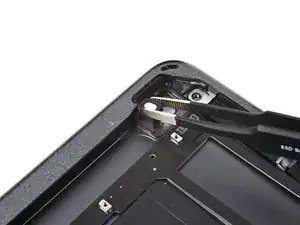

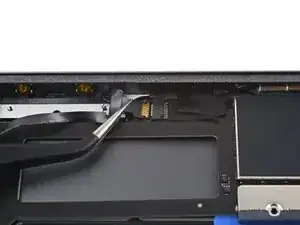

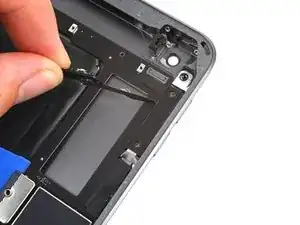

Use a pair of tweezers to carefully pull the button control cable straight out of the ZIF connector.

Schritt 58

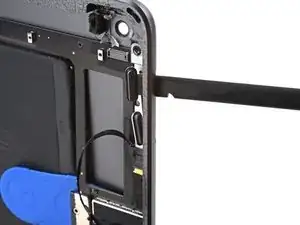

Use the flat end of a spudger to push the volume buttons out of their slots in the rear case.

Schritt 59

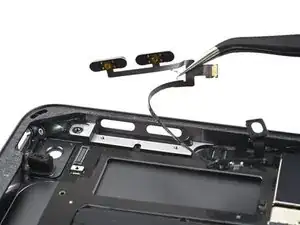

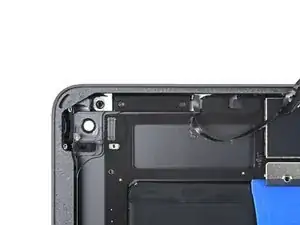

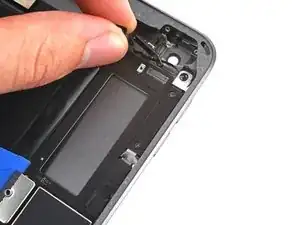

Remove the button control cable.
The lock button will become loose once the button control cable is removed.
Upon reassembly, remember to set the power button back into the its slot.

Schritt 60

Heat an iOpener and apply it to the button control cable for thirty seconds.

Schritt 61

Use a pair of tweezers to grip the upper volume button.
Insert an opening pick between the volume control cable and the upper volume button.
Peel the volume control cable off of the upper volume button.

Schritt 62

Repeat the same process to peel the volume control cable off of the lower volume button.

Schritt 63

Use a pair of tweezers to grip the power button bracket.
Insert a halberd spudger or opening pick between the power button bracket and the button control cable.
Peel the button control cable up and off of the pegs on the power button bracket.
Upon reassembly, apply Tesa tape to reattach the volume buttons and lock button bracket to the button control cable.
