iPad 9 LTE Logic Board Replacement

Geschrieben von: Alex Diaz-Kokaisl

Kommentare: 0

Schwierigkeitsgrad

Difficult

Schritte

105

Zeitaufwand

2 - 4 Stunden

Einleitung

Use this guide to replace the logic board in your iPad 9 LTE.

Note: this guide is for the LTE version only. For the Wi-Fi version, click here.

For your safety, discharge the battery below 25% before disassembling your iPad. This reduces the risk of fire if the battery is accidentally damaged during the repair. If your battery is swollen, take appropriate precautions.

The home button's Touch ID sensor is paired to the logic board. In order to retain Touch ID functionality, you'll need to transfer and glue the original home button to the new front panel assembly.

Be very careful when you isolate the battery using a battery blocker. The battery contacts are easily damaged, resulting in irreversible damage. If you choose to complete the guide without isolating the battery, avoid using metal tools except when completely necessary (like when removing screws) to prevent shorting the battery and damaging sensitive circuit components.

Some photos in this guide are from a different model and may contain slight visual discrepancies, but they won't affect the guide procedure.

Werkzeuge

Ersatzteile

iPad 7/8/9 Adhesive Strips

Schritt 1

Insert a SIM eject tool, bit, or straightened paper clip into the SIM card tray hole.
Press the SIM eject tool into the SIM card tray hole to eject the SIM card tray.
Remove the SIM card tray.

Schritt 2

Power down your iPad before beginning the repair.

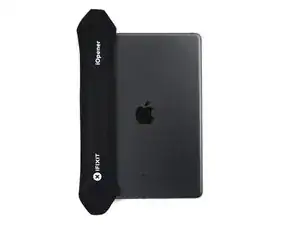

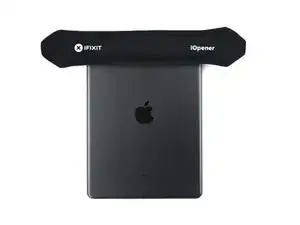

Heat an iOpener and apply it to the left edge of the iPad for two minutes.

Schritt 3

While you're waiting for the adhesive to loosen, note the following areas that are sensitive to prying:
Front camera
Ambient light sensors
Antennas
Display cables

Schritt 4

The next two steps demonstrate the Anti-Clamp, a tool we designed to make the opening procedure easier. If you aren't using the Anti-Clamp, skip down two steps for an alternate method.
For complete instructions on how to use the Anti-Clamp, check out this guide.
Elevate the iPad enough for the Anti-Clamp's arms to rest above and below the screen.
Pull the blue handle towards the hinge to disengage opening mode.
Position the suction cups near the left edge of the iPad—one on the front, and one on the back.
Push down on the cups to apply suction to the desired area.
If you find that the surface of your device is too slippery for the Anti-Clamp to hold onto, you can use packing tape to create a grippier surface.

Schritt 5

Push the blue handle away from the hinge to engage opening mode.
Turn the handle clockwise until you see the cups start to stretch.
Make sure the suction cups remain aligned to each other. If they begin to slip out of alignment, loosen the suction cups slightly and realign the arms.
Wait one minute to give the adhesive a chance to release and present an opening gap.
Insert an opening pick under the digitizer when the Anti-Clamp creates a large enough gap.
If the Anti-Clamp doesn't create a sufficient gap, apply more heat to the area and rotate the handle clockwise half a turn.
Don't crank more than a half a turn at a time, and wait one minute between turns. Let the Anti-Clamp and time do the work for you.
Skip the next step.

Schritt 6

If your display is badly cracked, covering it with a layer of clear packing tape may allow the suction cup to adhere. Alternatively, very strong tape may be used instead of the suction cup. If all else fails, you can superglue the suction cup to the broken screen.
Once the screen is warm to touch, apply a suction handle to the left edge of the screen and as close to the edge as possible.
Lift the screen with the suction handle to create a small gap between the digitizer and the frame.
Insert an opening pick into the gap between the digitizer and the frame.

Schritt 7

Insert a second opening pick into the gap you just created.
Slide the pick toward the bottom-left corner of the iPad to separate the adhesive.
Leave the pick in the bottom-left corner to prevent the adhesive from re-sealing.
Don't worry if you can see the opening pick through the digitizer—just pull the pick out. The LCD screen shouldn't be damaged, but you risk leaving behind hard-to-clean adhesive.

Schritt 8

If the opening pick gets stuck in the adhesive, "roll" the pick along the side of the iPad to continue separating the adhesive.

Schritt 9

Slide the first opening pick towards to top-left corner of the iPad to separate the adhesive.
Leave the pick in the top-left corner to prevent the adhesive from re-sealing.

Schritt 10

Heat an iOpener and apply it to the top edge of the iPad for two minutes.

Schritt 11

Rotate the pick around the top-left corner of the iPad to separate the adhesive.
Only insert the pick up to 7 mm to avoid damaging the ambient light sensor.

Schritt 12

Slide the opening pick along the top edge of the iPad, stopping just before you reach the front camera.
Avoid sliding the pick over the front camera, as you may damage the lens. The following steps will show how to prevent this.

Schritt 13

Pull the pick out until only the tip is between the digitizer and the frame.
Slide the pick above the front camera to separate the adhesive.
Leave the pick near the right side of the front camera before continuing.

Schritt 14

Re-insert the pick and slide it towards the top-right corner of the iPad to completely separate the top adhesive.
Leave the pick in the top-right corner to prevent the adhesive from re-sealing.

Schritt 15

Heat an iOpener and apply it to the right edge of the iPad for two minutes.

Schritt 16

Rotate the pick around the top-right corner of the iPad to separate the adhesive.
Only insert the pick up to 4 mm to avoid damaging the ambient light sensor.

Schritt 17

Insert a new opening pick and slide it to the middle of the iPad's right edge.
The display cables are located approximately halfway from the bottom of the iPad. Stop sliding once you reach three inches from the bottom of the iPad.

Schritt 18

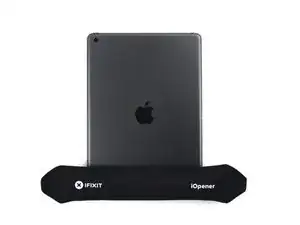

Heat an iOpener and apply it to the bottom edge of the iPad for two minutes.

Schritt 19

Slide the bottom-left pick to the bottom-left corner to separate the adhesive.
Don't fully rotate the pick around the corner, as you may damage the antenna.
The third image shows the bottom-left antenna underneath the digitizer.
Leave the pick in the corner before moving to the next step.

Schritt 20

Insert a new opening pick into the gap you just created on the bottom edge of the iPad.
Slide the pick over the antenna, stopping just before the home button.
Only slide the pick towards the home button and not away from it, as you may damage the antenna.
If you need to slide the pick over this section again, remove and re-insert it at the bottom-left corner.
Leave the pick to the left of the home button before continuing.

Schritt 21

Insert an opening pick into the gap you just created.
Slide the pick underneath the home button and towards the bottom-right corner, making sure only the tip is between the digitizer and the frame.

Schritt 22

Re-insert the pick and slide it towards the home button to completely separate the bottom adhesive.
Only slide the pick towards the home button and not away from it, as you may damage the antenna.
If you need to slide the pick over this section again, remove and re-insert it at the bottom-right corner.
Leave the pick to the right of the home button before continuing.

Schritt 23

Heat an iOpener and apply it to the right edge of the iPad for two minutes.

Schritt 24

Be very careful with this step. Take your time, ensure the adhesive is hot and soft, and make sure you separated all of the adhesive with an opening pick. Don't be afraid to stop and reheat.
Twist the two opening picks on the left corners of the iPad to lift the digitizer slightly, separating the the last of the adhesive in the process.
If there's a significant amount of resistance, reheat the edges and work along them with an opening pick.

Schritt 25

Lift the left edge of the digitizer upwards to further separate the adhesive along the right edge of the iPad.

Schritt 26

While supporting the digitizer, slide an opening pick between the two display cables to separate the last of the adhesive.
Be careful not to damage the two display cables with your opening pick.

Schritt 27

Once all of the adhesive has been separated, open the digitizer like a book and rest it parallel to the iPad.
During reassembly, clean the remaining adhesive from the frame—and the digitizer if you're re-using it—with isopropyl alcohol. Replace the adhesive with our adhesive strips or pre-cut adhesive cards.
Be mindful of the display cables when reassembling the iPad. Make sure they are folded properly underneath the LCD screen to prevent any damage.

Schritt 28

Use tweezers, or your fingers, to remove any tape covering the LCD screws.

Schritt 29

Use a Phillips #00 screwdriver to remove the four 4.2 mm screws securing the LCD screen.

Schritt 30

The LCD is lightly adhered to the frame.
Insert a spudger between the frame and the top-right portion of the LCD.
Pry slowly with the spudger to separate the adhesive.

Schritt 31

Repeat the previous step for the top-left portion of the LCD.

Schritt 32

Don't attempt to fully remove the LCD during this step, as it's still connected by a flex cable.
Use the flat end of a spudger to pry the LCD out of its recess just enough to grab it with your fingers.
Flip the LCD like a page in a book, lifting near the camera and turning it over the home button end of the frame.
Lay the LCD on a clean, soft, lint-free surface to allow access to the display cables.

Schritt 33

Use a Phillips screwdriver to remove the 2.3 mm-long screw securing the battery connector to the logic board.

Schritt 34

These photos show what the battery connector looks like underneath the logic board. Use these photos as a reference while you safely disconnect the battery.
Notice that the battery connector has cantilever springs on the logic board that press against the battery contact pads. Since both the logic board and battery are glued down, you'll need to slide something thin and flexible between the contact points to disconnect the battery.

Schritt 35

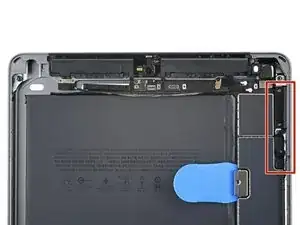

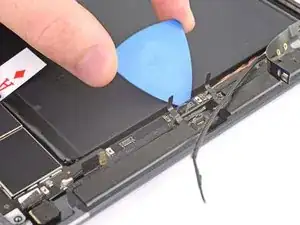

Be careful when you isolate the battery using a battery blocker. The battery contacts are easily bent or broken, resulting in irreversible damage.
Ensure that the iFixit logo on the battery blocker is facing up.

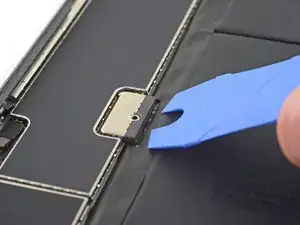

Slide the battery blocker underneath the logic board's battery connector at a 35 degree angle.
Don't push the battery blocker underneath the connector with excessive force. If you're having trouble fitting the battery blocker underneath the logic board, you can try using a playing card to disconnect the battery instead.
The battery blocker or playing card ideally should slide under the logic board without encountering any blockages. After insertion, it should rest at about a 15 degree angle.
Leave the battery blocker in place as you work.

Schritt 36

Use a Phillips screwdriver to remove the three 1.4 mm-long screws securing the display cable bracket.

Schritt 37

Remove the display cable bracket.

Schritt 38

Use the flat end of a spudger to pry up and disconnect the LCD cable press connector.
To re-attach press connectors like this one, carefully align and press down on one side until it clicks into place, then repeat on the other side. Do not press down on the middle. If the connector is misaligned, the pins can bend, causing permanent damage.

Schritt 39

Remove the LCD completely and rest it face down on a clean, soft, lint-free surface.

Schritt 40

Use a pair of tweezers to peel off the tape covering the home button cable ZIF connector.

Schritt 41

Use a spudger, an opening tool, or your fingernail to flip up the small, hinged locking flap on the home button cable ZIF connector.

Schritt 42

Use a pair of tweezers to pull the home button ribbon cable straight out of the ZIF connector.

Schritt 43

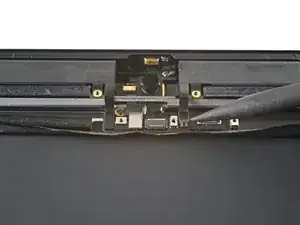

Use the flat end of a spudger to pry up and disconnect the two digitizer cable press connectors.
To avoid damaging your iPad, pry only on the connectors themselves, not on the socket on the logic board.

Schritt 44

Use the flat end of a spudger to pry up the buffer block near the bottom-right corner of the iPad.
Take care not to puncture or tear the home button ribbon cable.
Remove the buffer block.

Schritt 45

The home button cable is secured with some light adhesive.
Use a pair of tweezers to peel the home button cable away from the frame.

Schritt 46

Remove the front panel assembly.
Use an opening pick to cut away any residual adhesive that may still be connecting the front panel assembly to the frame.
If you experience "ghost" or "phantom" touch input issues with your new display, this can be resolved by adding a layer of very thin insulating tape, such as Kapton (polyimide) tape, to the highlighted areas on the back of the panel. iFixit replacement digitizers come with the proper insulation and should not require the addition of any tape.
Without the proper insulation, these areas of the digitizer can ground out against other components, causing touch input malfunction.
The insulation is not visible to the naked eye and is different from the foam dust barrier strips found on many iPads.
During reassembly, before installing a display, remove any remaining adhesive from the iPad, and clean the glued areas with high concentration isopropyl alcohol (90% or greater) and a lint-free cloth. This helps prep the iPad for fresh adhesive and ensures that it will bond properly.
Test your iPad's functions and install pre-cut adhesive strips to the back of the display using our display adhesive application guide before sealing it up.

Schritt 47

Carefully peel the LCD buffer tape from the upper component bracket.

Schritt 48

Use a Phillips #00 screwdriver to remove the five screws securing the the upper component bracket:
Three 1.4 mm-long screws
Two 1.9 mm-long screws

Schritt 49

Use the pointed end of a spudger to lift up the upper component bracket until you can grip it with your fingers.

Schritt 50

Use your fingers to peel the upper component bracket away from the tape.
Remove the upper component bracket.

Schritt 51

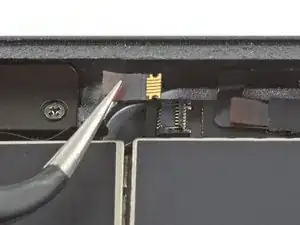

Peel off any tape covering the left ambient light sensor's ZIF connector.

Schritt 52

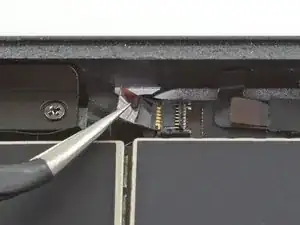

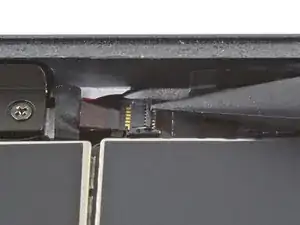

Use the tip of a spudger, an opening tool, or your fingernail to flip up the small, hinged locking flap on the left ambient light sensor's ZIF connector.

Schritt 53

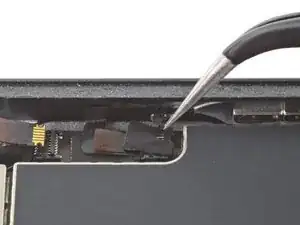

Use a pair of tweezers to carefully pull the left ambient light sensor cable straight out of the ZIF connector.

Schritt 54

The left ambient light sensor is lightly adhered to the frame.
Use tweezers, or your fingers, to remove the sensor from the frame.

Schritt 55

Use tweezers to remove any adhesive remaining on the frame.

Schritt 56

Peel back any tape covering the headphone jack's press connector.

Schritt 57

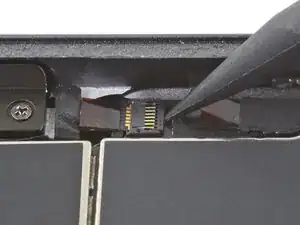

Use the flat end of the spudger to pry up and disconnect the headphone jack's press connector.

Schritt 58

The headphone jack cable is lightly adhered to the frame.
Use tweezers, or your fingers, to peel the headphone jack cable up from the frame.

Schritt 59

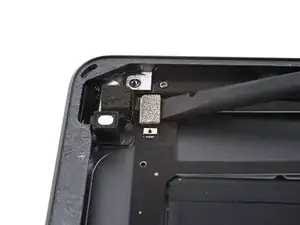

Use a Phillips screwdriver to remove the 3.3 mm-long screw securing the headphone jack from the frame.

Schritt 60

Use a pair of tweezers to pull the headphone jack out of its enclosure and remove it.

Schritt 61

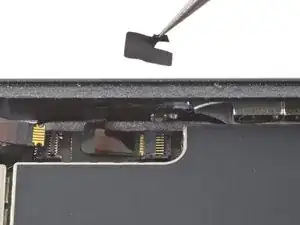

Peel off any tape covering the front camera's ZIF connector.

Schritt 62

Use the tip of a spudger, an opening tool, or your fingernail to flip up the small, hinged locking flap on the front camera's ZIF connector.

Schritt 63

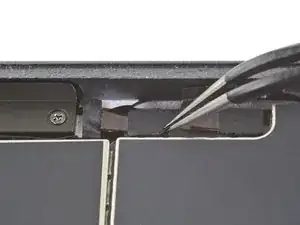

Use a pair of tweezers to carefully pull the front camera cable straight out of the ZIF connector.

Schritt 64

Apply a heated iOpener to the top of the iPad for 90 seconds.

Schritt 65

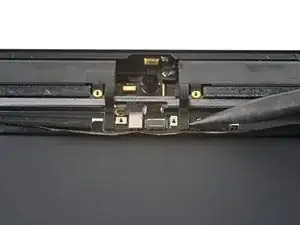

Insert the flat end of a spudger between the front camera and the frame.
Gently pry up to separate the adhesive.
If you're having difficulty separating the adhesive, apply more heat and pry at different angles.
Use tweezers to remove the front camera from its recess.

Schritt 66

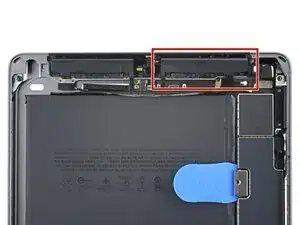

Use a Phillips screwdriver to remove the three 1.4 mm-long screws securing the cellular antennas to the rear case.

Schritt 67

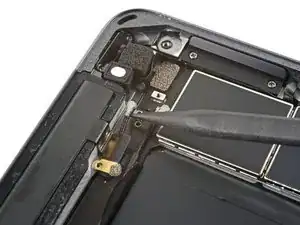

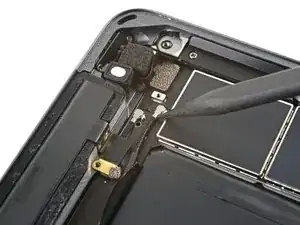

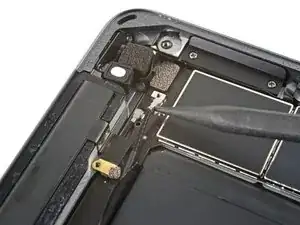

Use the pointed end of a spudger to disconnect the right cellular antenna coaxial cable by prying up as close to the connector as possible.
Repeat the procedure to disconnect the left antenna cable.

Schritt 68

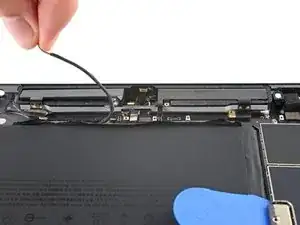

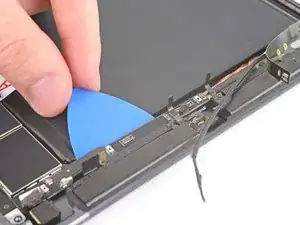

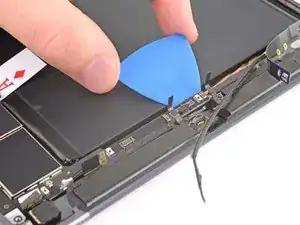

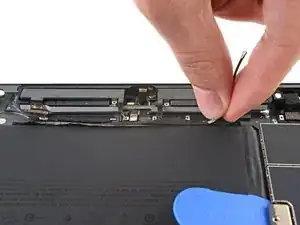

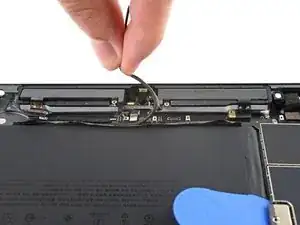

Peel the left cellular antenna coaxial cable away from the rear case.
Grip the antenna cable by the cable itself and not at its connector. Pulling coaxial cables by their connectors can break them.

Schritt 69

Use a spudger to pry up and disconnect both cellular antennas' press connectors secured to the logic board.

Schritt 70

Use the flat end of a spudger to disconnect the rear camera by lifting straight up on the press connector.

Schritt 71

Peel off any tape covering the button control cable ZIF connector.

Schritt 72

Use the tip of a spudger, an opening tool, or your fingernail to flip up the small, hinged locking flap on the button control cable ZIF connector.

Schritt 73

Use a pair of tweezers to carefully pull the button control cable straight out of the ZIF connector.

Schritt 74

Peel off any tape covering the Smart Cover sensor cable ZIF connector.

Schritt 75

Use the tip of a spudger, an opening tool, or your fingernail to flip up the small, hinged locking flap on the Smart Cover sensor cable ZIF connector.

Schritt 76

Use a pair of tweezers to carefully pull the Smart Cover sensor cable straight out of the ZIF connector.

Schritt 77

Use the tip of a spudger, an opening tool, or your fingernail to flip up the small, hinged locking flap on the SIM card reader cable ZIF connector.

Schritt 78

Use a pair of tweezers to carefully pull the SIM card reader cable straight out of the ZIF connector.

Schritt 79

Insert the pointed end of a spudger under the right antenna cable and lift straight up to disconnect it.

Schritt 80

Peel up the right antenna cable.
Grip the antenna cable by the cable itself and not at its connector. Pulling coaxial cables by their connectors can break them.

Schritt 81

Insert the pointed end of a spudger under the left antenna cable and lift straight up to disconnect it.

Schritt 82

Peel the left antenna cable away from the rear case, along the bottom edge of the iPad.

Schritt 83

Use the flat end of a spudger to pry up the buffer block at the bottom left corner of the iPad.
Use a pair of tweezers to remove the buffer block.

Schritt 84

Use a pair of tweezers or your fingernail to peel up the tape covering the speaker connectors.

Schritt 85

Use the tip of a spudger, an opening tool, or your fingernail to flip up the small, hinged locking flap on both the left and right speaker cable ZIF connectors.

Schritt 86

Use a pair of tweezers to carefully pull the left and right speaker cables straight out of their respective ZIF connectors.

Schritt 87

Use the pointed end of a spudger to disconnect the Smart Connector coaxial cable by prying up as close to the connector as possible.

Schritt 88

Use a pair of tweezers to disconnect the Smart Connector cable connector by lifting straight up.

Schritt 89

Use a pair of tweezers to peel back the tape securing the Smart Connector cables to the rear case.

Schritt 90

Peel the Smart Connector cables away from the rear case.

Schritt 91

Apply a heated iOpener to the bottom left corner of the rear case for one minute to loosen the SIM card reader's adhesive.

Schritt 92

Be sure you've ejected the SIM card tray before continuing.
Use an opening tool to pry up on the bottom edge of the SIM card reader with a slow and steady force.
If the SIM card reader feels extra stuck, apply more heat and try again.

Schritt 93

Remove the SIM card reader.

Schritt 94

Use a Phillips screwdriver to remove the four screws securing the charging port to the frame:
Two 2.2 mm-long screws
Two 3.2 mm-long screws

Schritt 95

Apply a heated iOpener to the bottom, top, and logic board side of the iPad for thirty seconds in each location.

Schritt 96

Insert an opening pick under the charging port cable near the charging port and slide it towards the logic board to cut the adhesive.

Schritt 97

Pull the charging port out of its slot in the rear case.

Schritt 98

Insert an opening pick under the upper arm of the logic board and slide it toward the logic board to cut the adhesive securing it to the rear case.
Leave the opening pick inserted to keep the adhesive from re-adhering.

Schritt 99

Remove the battery blocker.

Schritt 100

Insert an opening tool near the bottom of the logic board and pry up with a slow and steady force to peel it away from the rear case.
Bending or warping the logic board could lead to permanent damage. If the adhesive feels extra stubborn, apply more heat and try again.
Slide an opening pick underneath the bottom edge of the logic board to slice some of the adhesive if your logic board won't budge.

Schritt 101

Insert an opening tool near the middle of the logic board and pry up with a slow and steady force to peel it away from the rear case.

Schritt 102

Insert an opening tool near the top of the logic board and pry up with a slow and steady force to peel it away from the rear case.

Schritt 103

Insert an opening tool near the middle of the logic board and pry up until you can grip it with your fingers.

Schritt 104

Use a halberd spudger or an opening pick to slice any remaining adhesive securing the logic board to the rear case.

Schritt 105

Remove the logic board.
During reassembly, ensure that there are no ribbon cables stuck under the logic board before gluing it down.
During reassembly, apply strips of Tesa tape if the original adhesive is too mangled to be reused.
