iPhone 7 Plus Akku tauschen

Geschrieben von: Scott Havard
  • Kommentare: 157
iPhone 7 Plus Akku tauschen

Schwierigkeitsgrad

Mittel

Schritte

28

Zeitaufwand

30 Minuten - 2 Stunden

Einleitung

Mit dieser Anleitung und einem neuen Akku kannst du deinem iPhone 7 Plus neues Leben einhauchen. Wenn dein Akku aufgebläht ist, musst du entsprechende Vorsichtsmaßnahmen treffen.

Diese Anleitung beinhaltet den Ausbau der Displayeinheit, um Schäden an den Displaykabeln zu verhindern. Wenn du dich sicher genug fühlst, um den Akku zu entfernen, ohne die Displaykabel dabei übermäßig zu belasten, kannst du die entsprechenden Schritte überspringen.

Für eine optimale Leistung sollte der neu eingebaute Akku nach Abschluss der Reparatur kalibriert werden: Lade ihn auf 100% auf, und lasse ihn mindesten zwei weitere Stunden laden. Benutze dann dein iPhone bis es sich aufgrund eines leeren Akkus ausschaltet. Lade den Akku dann erneut ohne Unterbrechung auf 100% auf.

  1. lmhcoVgsVMmGK1sw

    • Vor dem Beginn sollte der Ladestand des iPhones unter 25% liegen. Ein geladener Lithium-Ionen Akku kann bei Beschädigung brennen oder explodieren.

    • Schalte das iPhone aus, bevor du es auseinandernimmst.

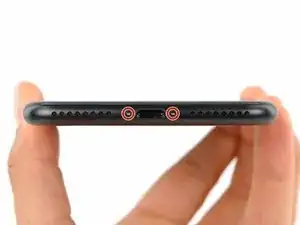

    • Entferne die zwei 3,4 mm Pentalobe Schrauben an der Unterseite des iPhones.

    • Nach dem Öffnen des Gerätes ist das iPhone nicht mehr wasserdicht. Halte Ersatzdichtungen bereit, oder sei nach der Reparatur extra vorsichtig, wenn dein iPhone Flüssigkeiten ausgesetzt ist.

    The recommendation of discharging the battery is completely unnecessary. Even a 25% charged battery can explode. Completely ridiculous suggestion.

    pargoff -

    The risk of thermal runaway on these batteries decreases with the battery's SOC (state of charge). Below 50% charge the risk is fairly low, and at 25% charge the risk of a thermal event is near zero. If I recall correctly, the same suggestion appears in Apple's official (non-public) service manuals for the iPhone.

    Jeff Suovanen -

    @jeffsu Yes, that is correct. Apple does require all certified staff to discharge the battery below 25%. This is an industry standard for all LiION batteries. If you don’t want to do this, just make sure to not puncture the battery and disconnect it first thing.

    Ben Meinhart -

    Hang on a second here, doesn’t the Ifixit part I ordered come with the seals? The display assembly? It doesn’t. Now I have to wait another week?!

    Vanessa Pinter -

    How do you turn off if the screen isn’t responding to touch?

    adam -

    The replacement battery came with the seal—but how do you put it on???

    lkollar -

    Instructions for replacing the seal are here: Austausch der iPhone Display Klebestreifen

    bester -

    I just found the instructions on how to install the seals AFTER I was completed and had to figure it out. Maybe, just maybe you should link this somewhere on the guild instead of buried in a comment. Just a thought.

    Charles Meitin -

    Step 1 is: Read through all the steps and comments or the method prior to starting on this Step 1. There's a lot of much needed information and experience that you can learn from which will reduce the chance of struggling, wasting time or even breaking your device.

    My favourites are:

    Use a hot water bottle.

    Label all screws you remove with their size and location on a piece of paper with double sided sticky tape.

    Test the lightning assembly at step 13

    There is a Standoff driver bit in the box, don't use a screwdriver.

    etc...

    Neil Eriksen -

    A tip for looking out for all those little screws. I used an ice block tray, for all the little screws etc. I numbered each with the step number, as in the instructions, but not all steps have bits to look out for. Where two different size screws are used I had a tray for each size and marked step a and step b. For this I coloured each tray sticker with the colour of the screw as shown in the instructions. All this worked a treat with no confusion or using the wrong part.

    Herb

    Herb Adler -

  2. XUktKLOCPaciWbL2

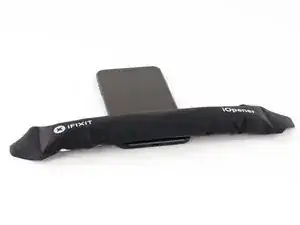

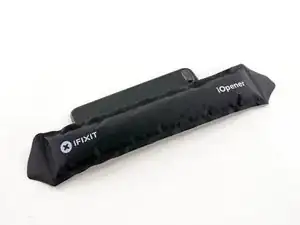

    • Durch Erwärmen der unteren Kante des iPhones wird der Displaykleber weich und lässt sich leichter ablösen.

    • Lege einen heißen iOpener eine Minute lang auf die untere Kante des iPhones oder benutze einen Haartrockner, um den Kleber darunter weich zu machen.

    How long should I use a hairdryer for?

    Warren Binder -

    I used it until it was hot to the touch but not too hot where you burn yourself.

    gczarny -

    Hey, I just took apart my first iPhone 7 plus today, and it was easier for me to use guitar picks and a magic glass tool. I did tear the home flex on the screen—now I know to be more careful of that on disassembly—-~Katrina of iPad Rehab Microsoldering

    jessabethany -

    First I tried to remove the screen with the hot iOpener, but it doesn’t worked, the day after I putted the Iphone in the sun for a while and then used the hot iOpener, then the screen was easy to remove :-)

    Marc Boon -

    Get a T-shirt add heat to a lil corner of it, with either a hair straighter or an Iron , touch the T-shirt if it’s seems hot but doesn’t burn u hold that lil hot piece of T-shirt against the edge ur trying to pry open , if it’s still not opening add a I’ll more heat,

    www.tertlegerl -

    I don’t think the iOpener was effective at softening the adhesive. Using a suction cup and the spudger is good enough.

    Mac -

    I took a hot water bottle and layed it on the display of the iPhone for a minute, because I did not have an iOpener. That worked for me perfect.

    Michael Maier -

    How can I get all this tools

    Ajibol emmanuel -

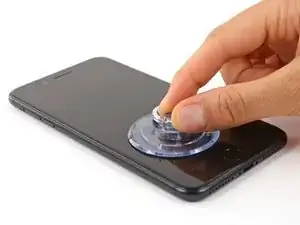

  3. QkQCsE1Zo1LMstsE
    QkQCsE1Zo1LMstsE
    bAxOw2QF2CDIYIpB

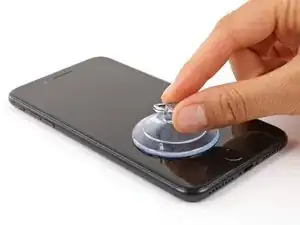

    • Setze einen Saugnapf auf die untere Hälfte des Displays, knapp über dem Home-Button.

    • Achte darauf, dass der Saugnapf nicht auf dem Home-Button aufliegt. Dies würde verhindern, dass sich ein Vakuum zwischen dem Saugnapf und dem Glas bildet.

    • Wenn die Scheibe stark zerbrochen ist, haftet der Saugheber möglicherweise nicht gut. Klebe eine Schicht durchsichtigen Klebebands darüber, dann hält er besser. Du kannst auch sehr starkes Klebeband anstatt eines Saughebers verwenden. Wenn das alles nicht klappt, dann klebe den Saugheber mit Sekundenkleber an der Scheibe fest.

    Hi! My suction cup doesn’t work. It won’t strongly suck on my screen. Does anyone have any advice?

    kaiminliu119 -

    Heat it up just a little with a hair dryer make sure it’s flat , let it coo a bit now try it??

    robertread -

    The suction cup you provide sucks. In that it doesn’t hold. Luckily I had a set of heavy duty suction cups from when I worked on my iMac.

    Charles Meitin -

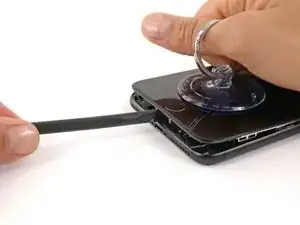

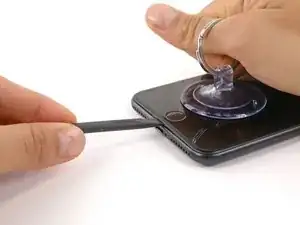

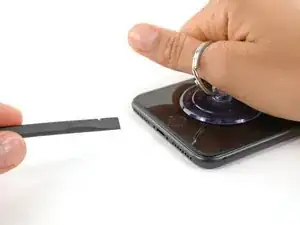

  4. B42ufcARi3bVAURY
    B42ufcARi3bVAURY
    kPSe6jXIJFcBE5rk
    qJeHEUiARuDmJKHH

    • Ziehe den Saugnapf mit festem und konstantem Druck nach oben, bis sich eine kleine Lücke zwischen der Displayeinheit und dem Rückgehäuse bildet.

    • Führe die flache Seite eines Spudgers in diese Lücke ein.

    • Der wasserdichte Klebestreifen, welcher das Display in Position hält, ist sehr stark. Es kann viel Kraft brauchen, um diese erste kleine Lücke zu schaffen. Solltest du dabei Schwierigkeiten haben, wackle das Display etwas auf und ab, um den Klebestreifen zu schwächen, damit du den Spudger leichter einführen kannst.

    • Drehe den Spudger, während du den Saugnapf weiter nach oben ziehst, um die Lücke zwischen Display und Rückgehäuse zu vergrößern.

    Be very careful not to pull up with too much force. My screen just shattered while I was pulling up with my suction cup. (There were no previous cracks or chips or anything).

    Benjamin Pounds -

    I’m stuck on this part. I’ve heated the bottom up and attached the suction cup right above the home button, but I can’t pull it apart. I feel like I’m going to break the glass display. Tips?

    whtafrcn420 -

    Someone mentioned above, using strong tape helps .

    MajorCouillon -

    You won’t be able to put the spudger into the gap unless the phone is in a vertical position (speaker side up) in your hands.

    Mac -

    read steps 4-9 before attempting. I cracked my glass because I didn’t

    David Lei -

    My first 7 Plus opening. I pulled up the screen just enough to insert a thin guitar pick at the bottom of the phone to break the adhesive. I didn’t even create a gap as such. I then ran the pick along the sides to continue to detach the adhesive, just like iFixIt show in Step 10 for the top of the phone.

    My screen already had a crack at the bottom, near the home button, so I was nervous about pulling too hard on the screen. It had a screen protector fitted so maybe that helped keep it all together.

    iFixIt’s use of a spudger at the bottom of the phone looked hazardous to me, especially with my damaged screen.

    Big Ed -

    This must be a joke. I’ve been trying for days to pull open the iphone like this. Doesn’t work. I bent the ring on the suction cup trying to pull it off, but nothing happens, no gap, not remote possibility of a pick or spudger getting in there.

    James Osborne -

    Ended up using a blowdryer and a razor blade. Bottom got scratched up, but there was no way that fat plastic spudger was going to fit. I got the razor under the corner, from there worked to middle and twisted with repeatedly adding heat. Lots of heat.

    James Osborne -

    Be aware that there is a small connector, under the home button.

    Herb Adler -

    I found that the edge of the spudger was too thick, so I sanded it down to almost a knife edge. This made it much easier to insert into the gap.

    Herb Adler -

    Use the Opener and a razor blade to cut through the adhesive. It takes about 45 seconds to heat up the Opener in a 1000 watt microwave. Be careful not to damage the thin display ribbon cables on the right side iphone. After you use the razor blade to cut the adhesive on the two sides and bottom you should be able to use the spudger to remove the display screen.

    larrywert -

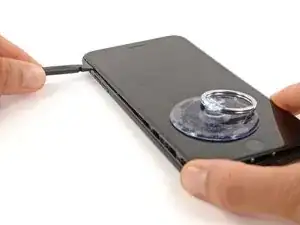

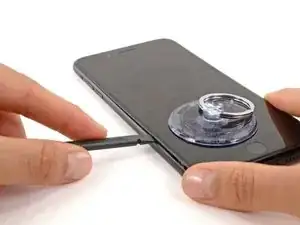

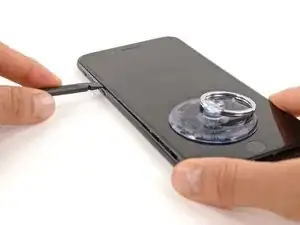

  5. kuaYdrJrBKqV2oiI
    kuaYdrJrBKqV2oiI
    DppWOQQUFWhiIQmK
    hviLJx3oefn6IJk3

    • Führe die flache Seite des Spudgers zwischen dem Front Panel und dem Rückgehäuse an die untere linke Ecke des iPhone.

    • Ziehe das Werkzeug von der unteren Ecke die linke Seite hinauf zu den Lautstärketasten und dem Stumm-Schalter und löse so den Kleber, der das Display hält.

    • Versuche nicht, die obere Seite des Displays abzuheben, denn diese wird zusätzlich mit Kunststoffclips in Position gehalten, die dann abbrechen könnten.

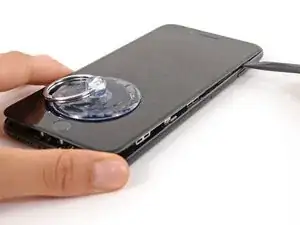

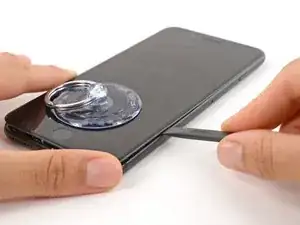

  6. ebTEdalPStEFwprn
    ebTEdalPStEFwprn
    TcvF6HREfbLQd12j

    • Entferne das Werkzeug von der linken Seite des iPhones und setze das flache Ende in die Ecke rechts unten ein.

    • Ziehe die flache Seite des Werkzeugs entlang der rechten Seite nach oben, um den Klebestreifen zu lösen, der das Display fixiert.

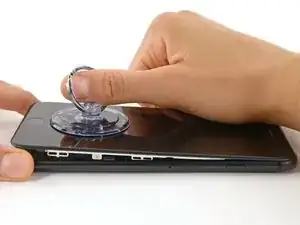

  7. KRSf5aPqMubL3siA
    KRSf5aPqMubL3siA
    rP5ESkqIt3tEq2Th

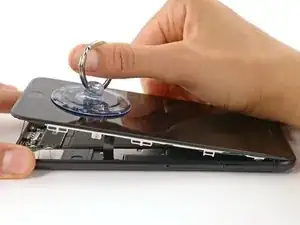

    • Ziehe am Saugnapf, um das Display anzuheben und das iPhone zu öffnen.

    • Hebe das Display nicht höher als bis zu einem 10 Grad Winkel, denn rechts sitzen Flachbandkabel, welche das Display mit dem Logic Board verbinden.

    The ribbon cable part should be said earlier instead of halfway through

    I just broke one because of it

    BrenX1 -

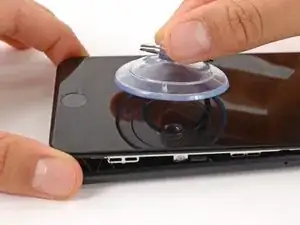

  8. UqjoOlLyth4N5RTX
    UqjoOlLyth4N5RTX
    YB3djkmK3OBKgwAR

    • Ziehe an der kleinen Nippe des Saugnapfs, um ihn vom Front Panel zu lösen.

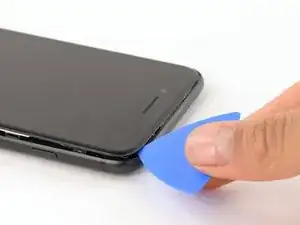

  9. gQLjVmwVCr5rcqCo
    gQLjVmwVCr5rcqCo
    KBRYMMwmcXRcyNMd

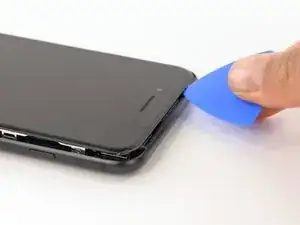

    • Fahre mit einem Opening Pick unter dem Display am oberen Rand des iPhones entlang, um den restlichen Klebstoff zu lösen.

    I couldn't find the pick in the tool set, so made my own. Then I found the original in the battery box. %#*@.

    Herb Adler -

    Same thing for me

    Jason Skelton -

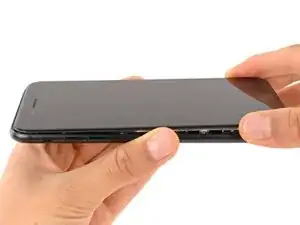

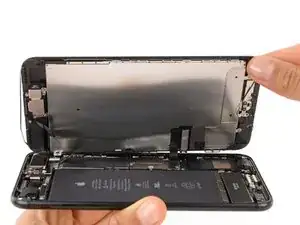

  10. c3SYZXxuPyoxPGU2
    c3SYZXxuPyoxPGU2
    A1WVvvZb1eBsEBvg
    Kb3jum1WnDlDRHJF

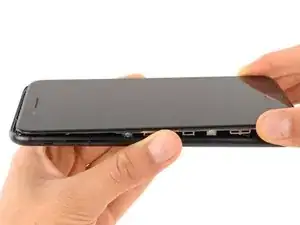

    • Ziehe die Displayeinheit etwas von der oberen Kante des Telefons weg, um die Clips zu lösen, die sie am Rückgehäuse halten.

    • Öffne das iPhone, indem du das Display von der linken Seite her aufklappst, wie die Rückseite eines Buches.

    • Versuche nicht, das Display schon komplett zu entfernen, da empfindliche Kabel das Display immer noch mit dem Logic Board verbinden.

    So if I broke the cable that connects the display to the logic board. What replacement part would I need to order now?

    Robert Danson -

    Probably the screen

    Christian Sirolli -

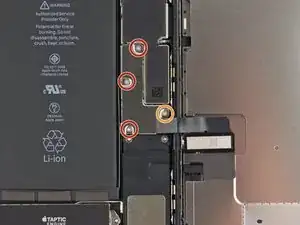

  11. UHPAQ4xaQQRZEEc2

    • Entferne die folgenden Dreipunkt Y000-Schrauben, die die Blende des unteren Displaykabels am Logic Board fixieren:

    • Drei 1,2mm Schrauben

    • Eine 2,6mm Schraube

    Is it really safe to lay the device fully open like a book? The cable leading to the LCD gets stretched across the sharp edge of the aluminum edge of the back cover.

    u204863 -

    Generally I'd say no, it's not safe. In reality I've seen a bit of variance in the cable length, and sometimes it'll be fine—but mostly I'd be prepared to prop the display up or hold it in place at a slight angle so it doesn't put too much stress on the cables. On prior iPhones it was easy to rubberband the display to a box or a can of soda, and something like that would probably work well here too. Use your own judgment.

    Jeff Suovanen -

    You could stick the suction cup back on, near the right side of the phone, with the blue hook oriented in such a way that it becomes a stand for the screen. That way it won’t open much more than 90 degrees, and leaves both your hands free.

    Mark -

    The tri wing screws are so hard to remove. What's the trick?

    shannon caldwell -

    At first I think I was being too careful and was getting no where. I got better results by pressing down on the screwdriver with more pressure while turning and those little screws came right out.

    LadyTech -

    I cannot remove one of the corner screws in this step and i have used the tweezers and the y000 tri tip and i am afraid that it is stripping it. is there a work around for this step?

    Katherine Monday -

    @katmonday1 No workaround unfortunately. Make sure the driver tip is in good condition and fits the screw correctly. Seat it in the screw, hold the driver perfectly vertical, press down hard (and maintain it), and turn. It’ll come out. If it’s really stripped you’ll have to get more aggressive—try one or more of the techniques in this guide or get some help. Good luck!

    Jeff Suovanen -

    my screwdriver will only remove the 2.6mm screw and not the others, what shall i do?

    AubreyG1 -

    A tip to remember which screw is which as the differences are pretty tiny: I used different colored sharpie fine-points and made a mark on the top of the screws before removing. I thought about having strips of tape that I stuck similar sizes to, but the coloring seemed to work more easily. I only did this for step 11 and it saved me down the road when trying to differentiate the 1.2 and the 1.3mm screws!

    Trey Smith -

    STOP! Before you remove Any screws, be sure to create several bins to hold the various sizes in… or mark them like Trey suggested. I failed to pay attention because I thought they were all the same… they are not. It is very hard to figure out the sizes if you remove them all and store them in a single location.

    John Grant -

    i had a piece of paper with the steps numbered that involved screws. I had double sided tape on the paper and the number of screws and thier position marked. This was so helpful in removing and then finding and installing the tiniest screws on earth. And i have TINY hands. I can’t imagine someone with large paws being able to accomplish any of this.

    Tina Matthews -

    there is one screw thats 1.2 mm but its bigger than the others and will fit in no hole of the entire phone. i got it out bot now i have no idea where it has to go i tried every hole. can somebody help me?

    Lars Göbel -

    what do i do if one of the screws dont want to come off

    Neylley Reynoso -

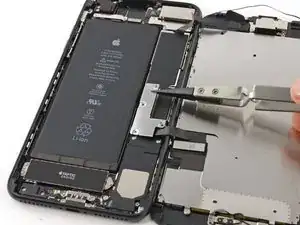

  12. k34xU4RKWbs1uk5K
    k34xU4RKWbs1uk5K
    GKWmAgKZl1p5xwIU

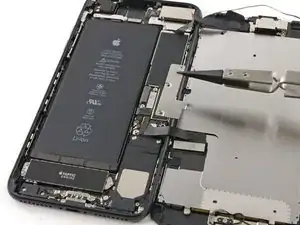

    • Entferne die Blende des unteren Displaykabels.

    I am confused, please help. LOL the bracket, the very first one being removed. I see it has three screws the same size and one a different size? I've been trying to fix my daughter's phone and ordered a 0.6 mm Tri Wing screwdriver for iPhone 7 plus /Apple watch. It seems to fit the screws and it seems to be turning them although I can't see that well but they're not coming out. However when I used it on a smaller bracket with two screws they came right out so I'm thinking I don't have the right screwdriver I am at my Wit's End!! I have been working on this phone or attempting to for a while now. I cannot find a list anywhere of the exact size screwdrivers needed to Take apart an iPhone 7 plus. Any help would be greatly appreciated.

    chris west -

    If your tri-wing screwdriver worked for other tri-point screws in the phone, then it should work for the screws you are struggling with! If it feels like the screws are spinning but not coming out, try to use tweezers to pull them out. I often struggle with tri-point screws, and need to apply some downward pressure to remove them. This can be risky though, as you do not want to strip the screw or damage components underneath the bracket. If you continue to struggle, you can give this driver and this bit a try.

    Scott Havard -

    Also be aware that the battery connector might stick to the bottom of the steel bracket. This part had me a bit puzzled at first. lol

    Just gently pry the connector off the steel bracket to release it and be sure the connector isn’t allowed to accidentally reconnect to the board.

    jeffrey griffith -

    I had to use a fingernail to dislodge the bracket. As Jeffrey said, it was apparently stuck to the connector.

    lkollar -

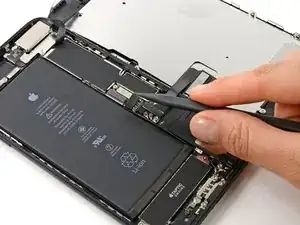

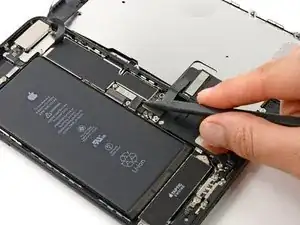

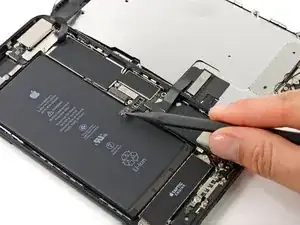

  13. VS1FiZyZHebFIuQo
    VS1FiZyZHebFIuQo
    ZZUGd2VCcGplGEZm
    uSeYoeEvmaI6TPuB

    • Mit der Spitze eines Spudgers kannst du den Batterieanschluss aus seinem Stecker auf dem Logic Board heben.

    • Biege das Anschlusskabel leicht nach unten, um zu verhindern, dass es mit der Steckdose in Berührung kommt und das Telefon mit Strom versorgt.

    You could cover the battery socket with a small piece of tape to make sure that it doesn’t accidentally re-connect. It’s not likely to, but I liked the peace of mind.

    Mark -

    on reassembly, make sure that the connector cable is back in place, along side the battery, and not up, or on top in any way.

    Sarr Sheffer -

    I slipped a small piece of paper under the flap.

    MajorCouillon -

    After this step it is worth jumping to step 36 and disconnecting the lighting connector assembly (indicated with the orange rectangle) and connecting the new cable to test it out. After attaching the new lightning connector assembly, reattach the battery, and try plugging it in to see if the new assembly works correctly. If it does, then power down the phone, disconnect the battery, and disconnect the new lightning connector assembly. Then continue. If it doesn’t work, this check will save you a couple of hours of work.

    Evan O -

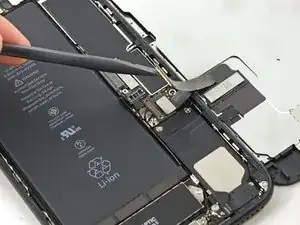

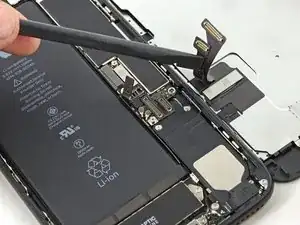

  14. EjPXnLkfPYtKriYF
    EjPXnLkfPYtKriYF
    ohPCtWpSggN3HkmE
    Fpc2oOAExSPUJGn2

    • Bevor du in diesem Schritt Kabel ablöst oder anschließt, musst du den Akku abtrennen.

    • Nutze das flache Ende eines Sprudgers oder einen Fingernagel, um die beiden unteren Displaystecker aus ihren Buchsen auf dem Logic Board zu hebeln.

    • Beim Wiedereinbau von Steckverbindungen, drücke die Kontakte erst an einem Ende nieder bis sie einrasten, anschließend das zweite Ende. Drücke nicht in die Mitte des Steckers. Wenn der Stecker auch nur minimal verschoben ist und du darauf drückst, verbiegt sich der Stecker und es kann zu einem unreparierbaren Schaden kommen.

    • Wenn du nach dem Zusammenbau kein Bild hast, das Display nur weiße Zeilen zeigt oder die Touchfunktion teilweise oder ganz ausgefallen ist, dann löse noch einmal diese beiden Kabel und verbinde sie neu. Achte darauf, dass sie gut sitzen.

    The note about the danger of pressing on the connector incorrectly is very legitimate. Though I find it more practical to use a wide (1.5 cm) case opener tool to press it down all at once. Minimizes risk of bending the connector.

    Talon -

    What can happen if the battery is not disconnected before the two lower display connectors?

    Alextay -

    Hello, by my expierence and what i have learned iphone repair videos you can ‘blow up’ capacitors which one in logic board, screen is sensetive with voltages and etc….

    Darius Varanavičius -

    what are my options if the display connector broke? can it be replaced or do I need to get a whole new screen?

    matomach -

    When I removed the lower display cable bracket in step 12, the top connector stuck to the bracket and became disconnected.

    Grant Crawford -

    My replacement screen wouldn't sit in the display connector properly, (wouldn't clip in both sides at same time) so I made sure it sat on one and it was lined up and got a thin piece of dense sponge and placed that over the connector, then proceeded to install the connector shield and screen works perfectly fine without a hitch. Very good tutorial just earnt me £25 lol

    Joshua Driscoll -

    have the same issue, sometimes it doesn’t sit on the left side, other time not on the other, the difference is iphone not starting at all or looping with apple logo reboot…

    ibisiki -

    Bent the pins on the connector out of place, worked them very carefully back with fine nose tweezers. This was by far the crux of the repair for me.

    nicO Gurney -

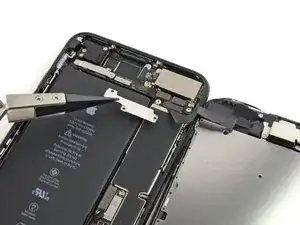

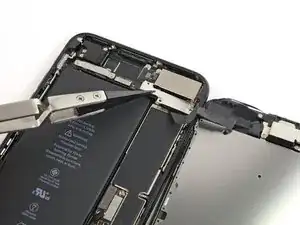

  15. eOV4A2QhwOEwbiHK
    eOV4A2QhwOEwbiHK
    PHEMGNluvvEJ1qga
    AiXmxFQOUDwwQlS2

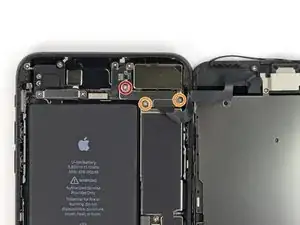

    • Entferne die drei Dreipunkt Y000 Schrauben, mit denen die Abdeckung über der Buchse für den Sensor des Front Panels befestigt ist.

    • Eine 1,3mm Schraube

    • Zwei 1,0mm Schraube

    • Entferne die Abdeckung.

    Posted a comment above on the first step. The screwdriver that I ordered Works taking out these two screens shown in the picture. However it does not work on the first bracket that needs to be removed. It seems that all screw sizes are somewhat different but I'm not finding a list showing different screwdriver sizes needed. Does this make sense? Could anybody please give me some advice on this thank you much.

    chris west -

    I know your comment was posted a long time ago but just in case someone else has the same problem, the only difference in the screws are the lengths. The ends are the same.

    mcr4u2 -

    What happens if you break “tear in half” the black tape stuff?

    assweeetasyou -

    Unfortunately if you tear the black cable you will need to replace it !!!

    Wayne Lyell -

    Chris West the screwdriver that probably came with the kit was pentalobe to get the first two screws out to open the case. you need a .6mm Y tip driver for internal. its deceptively Phillips looking but is not it only has three blades in a Y, not 4 in a +

    Jeremiah Kjensmo -

    I called the y tip a triangle tip until I read these comments. Thanks for the correction

    Kayla Tobin -

    Hello is it if I put wrong screw can damage the board?

    alicenine84 -

    Care should be taken while removing the last 1.0mm screw, on the far right in the picture. This screw is screwed into another screw (or standoff) beneath the bracket. This standoff may come unscrewed and upon removing the bracket you may find the screw and standoff are still attached to the bracket. Do not lose this part if you decide to separate them , the standoff is not a normal phillips, and may require a special driver to reinstall. I used the phillips to start it back in, and relied on the screw to tighten it upon reassembly.

    Benji -

    I know this is late bit a trick I use to put the standoffs in (had to do 2 cause someone lost the screws I was replacing) is to take the screw that goes in it srew them together loosely to give it a fake phillips head then gently screw both into the spot the standoff goes in. you can then take the phillips out (may need to put a spudger between the screw and standoff to keep the standoff down then use a tiny flathead to gently tighten the standoff down. its a few steps but makes life easier if you need to replace it quickly.

    Stephen Patterson -

    I was able to remove the first 1.0 mm three tri-point Y000 screw from the bracket but I cannot for the life of me get the other 1.0 mm screw undone or the one 1.3 mm screw undone. Any tips?

    I tried pressing down a bit harder and I even put the first screw back in to see if it helped me loosen the other two but it did not work.

    My screwdriver was doing the job up until this point, and I’m worried I’ll strip the screw if I keep trying.

    Would appreciate any advice!

    jrosegoep -

    Dear IFixit: First, I want You to know I love your repair guides. I consider You to be the absolute best repair manuals available. But, hopefully as your friend I am going to point out once the bracked is removed a 2.0 mm Standoff screw should appear. It’s 1 of 2 screws holding the Antena Flex Cable in place. Rob

    Robert Schmidt -

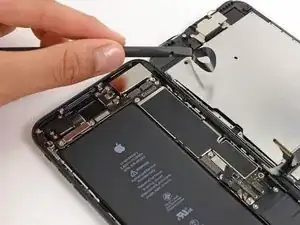

  16. HP3GYMeDTQfroDSM
    HP3GYMeDTQfroDSM
    rYVXLQtY5ZhLE5pe

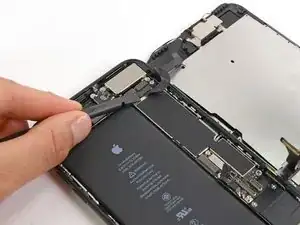

    • Ziehe den Stecker der Front Panel Sensoreinheit aus der entsprechenden Buchse auf dem Logic Board.

    • Diese Steckverbindung sollte beim Wiederanschluss auch erst an einer Seite und dann an der anderen Seite zusammengedrückt werden, um zu verhindern, dass etwas verbogen wird.

    Make sure that the orientation of the cable when you attach is correct! See the picture for the correct orientation. If it gets installed 180 degrees out(i.e., the ribbon goes up instead of down, then the earphone, front camera, and Home button will be inoperative. Ask me how I know!?! Worked great when installed correctly!

    Kevin Reilly -

    Thanks Kevin. I would be stuck if I hadn't read your comment!?! Great input.

    Lukas Watts -

    That's save my life!thanks god!

    neg -

    I also made this mistake! Thank goodness it didn’t break anything.

    That Guy -

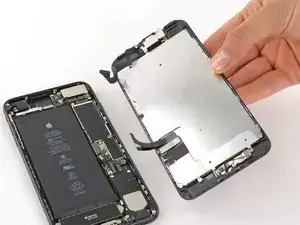

  17. 6sXLpmxMPOVXtwBd

    When removing the old adhesive from the edges, duct tape can be useful. Simply use small strips of duct tape and your spudger to press the tape’s adhesive side carefully into the edges of the phone’s display and slowly peel the duct tape away from the display. The duct tape should pick up the remaining adhesive and carry it away from the edges. use the tip of the spudger to gently scrape away any remaining dirt or film from the crease around the edge and repeat the action with a new strip of tape to pick up any dirt, adhesive or grime from the surface. This should save considerable time.

    Benji -

    Thank you for including a link to the iPhone Display Adhesive Replacement guide, this was very helpful!

    Robert O'Brien -

    is it really necessary to remove the display? the screen connectors are delicate and I fear re-assembly errors. I changed the battery and did not remove any screen connectors. no problems.

    jacobra -

    Due to the fact that THIS is the repair guide for replacing the DISPLAY it IS necessary to remove the display connectors. There is another guide for changing the battery -- you might want to follow that one.

    Hannes -

    I did not remove the display and ended up ripping one of the lower display cable ribbons when I turned the phone to remove one of the connectors. Be careful. I had to get a new display and move the Touch ID button.

    Shawn Hime -

    I think that moving the replacement of the seal lower in the chain of events would be more beneficial. I'm replacing the battery, and stretching the adhesive tabs that held the battery in at a low angle kept sticking themselves to the newly-installed adhesive seal.

    In the end, I wound up having to just remove the section of the seal along the bottom of the case :-/

    If I'd been looking at the bigger picture, I'd have wanted to put the seal on right before reattaching the screen cables.

    Rob Russell -

  18. lHOvsFvFYwiIMMSk

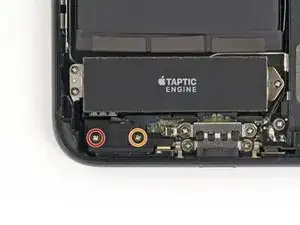

    • Entferne die folgenden beiden Kreuzschlitzschrauben, die die barometrische Entlüftung am hinteren Gehäuse sichern:

    • Eine 2,9mm Schraube

    • Eine 2,1mm Schraube

    I skipped this step and go straight to step 25. I skipped it because I couldn’t get the screws to come off. But skipping those step did not prevent me or has any detrimental effects on performing step 25.

    Jamie Liao -

    I agree, I don’t see any reason to remove the Taptic engine to remove the battery…It seems like more of a chance of screwing something else up…keep it simple…

    William Karis -

    If you’re replacing the battery, removing the Taptic Engine gives you a much better chance of removing the battery adhesive strips successfully. To keep them from snagging and breaking, you want to pull them from as low an angle as possible. With the Taptic Engine in the way, you have to pull them at almost 90 degrees, or risk snagging them on the Taptic Engine.

    Jeff Suovanen -

    i can’t get the 2.1 screw 2 come out pls help anyone

    John Bryce -

    I agree with Jamie Liao above. Skips steps 18-24 as described. Before proceeding with step 25, I heated a microwavable hot/cold compress (used to treat muscle strains). I set the iPhone back casing on the heated compress before pulling out the adhesive strips.

    Again, there is no need to do steps 18 through 24.

    Thomas Young -

    i didn’t remove this and had major issues pulling the adhesive strips out. I literally couldn’t grasp them and then when i did, they broke! UGH! I was able to complete the installation but i must have done something wrong because my phone still isnt working. It just ‘flashes’ the apple logo. Won’t do anything else. Should have just taken it in for repair. Now i have to buy a new phone anyway.

    Tina Matthews -

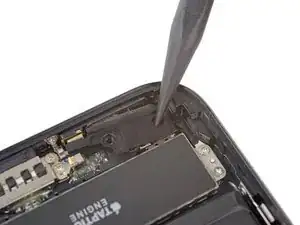

  19. EBvQf1QUlPsSZU6e
    EBvQf1QUlPsSZU6e
    oKfGa4eTuPMASdef

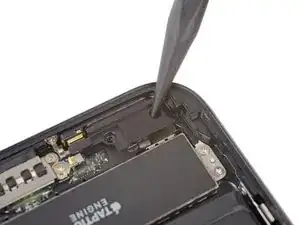

    • Schiebe vorsichtig die barometrische Entlüftung in Richtung des Taptic Engine, um den Kleber zu lösen, mit dem sie an der Unterkante des iPhone befestigt ist.

    Adhesive may require a tiny amount of tugging of the barometric vent to free it…

    Sarr Sheffer -

  20. 6CqaBIqrf6xoOkBH

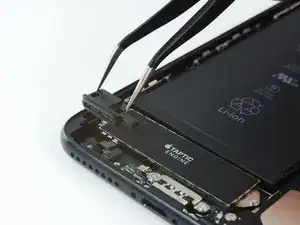

    • Entferne die Entlüftung.

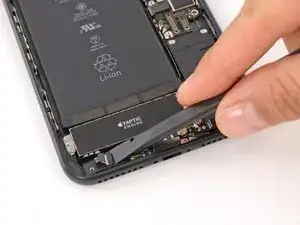

  21. Xhp4TTPbA3JhDNaA
    Xhp4TTPbA3JhDNaA
    FGXYOjOlBjoHwiKw

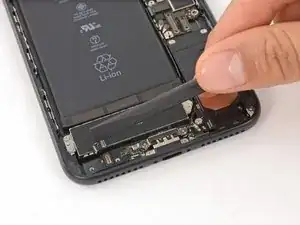

    • Verwende das flache Ende eines Spudgers, um den Stecker der Taptic Engine von seinem Sockel auf dem Logic Board zu trennen.

  22. QuVtJpInD2T3wvXK

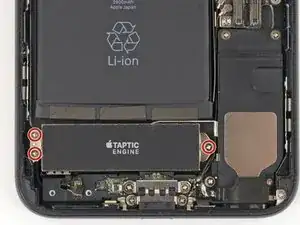

    • Entferne die drei 1,5 mm Kreuzschlitzschrauben, mit denen die Taptic Engine am hinteren Gehäuse befestigt ist.

    what do you do if the top left screw is not coming out?

    Karrington Dowe -

    There is a little guide pin for the Taptic Engine proper seating

    Landis -

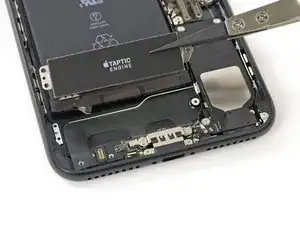

  23. uQn5Y4IG5CsxDvZA
    uQn5Y4IG5CsxDvZA
    NnfXa3NaCaypGVQ3

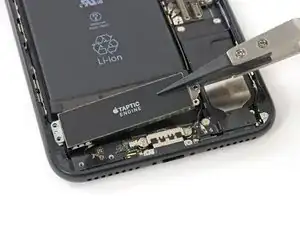

    • Entferne die Taptic Engine.

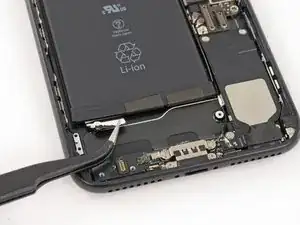

  24. xG1DiYPbUbmWQLca
    xG1DiYPbUbmWQLca
    6h1ANCE2PXUGqdVc
    xvDHOLKGuj66Pwuf

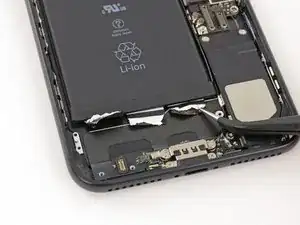

    • Ziehe die drei Klebestreifen an der Unterkante des Akkus ab.

    • Benutze, wenn möglich, deine Fingernägel oder eine stumpfe Pinzette. Achte darauf, dass du den Akku nicht mit irgendwelchen scharfen Werkzeugen anstichst.

    Use a fingernail to get one corner started, then the flat end of a spudger does a good job of getting the rest.

    lkollar -

    In your step 24 going on to step 25 you recommend peeling all three battery adhesive tabs up, and then pulling them out.

    I STRONGLY RECOMMEND peeling ONE tab up at a time, and then pulling it out immediately in one action.

    This prevents the pulled up, but as yet not pulled out, tabs contracting back, lost underneath the battery.

    I also reccomend pulling the outer tabs first leaving the centre one until last as it's easier to hold on to a battery straight, than one which is additionally trying to rotate

    Peter Kershaw -

    Followed Peter’s advice, and the battery came out no issues. Pull up one at a time (leaving the other adhesive strips in place), and pull the adhesive strip straight out, parallel to the table you’re working on. Instead of continuing to pull one long piece (like the photo in Step 25), I’d pull some, bunch in up in my fingers,then keep pulling. This allowed for more control over the phone and this step in general.

    Just as a precaution: to guide where I’d put the battery back into place (I took it out while replacing the lightning connector), I marked with a metallic sharpie the outline of where the battery was, to help me make sure I put it back exactly where the original had been.

    Christopher Villavicencio -

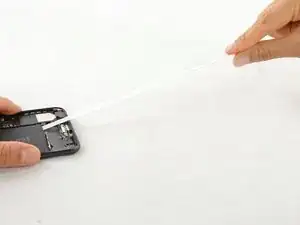

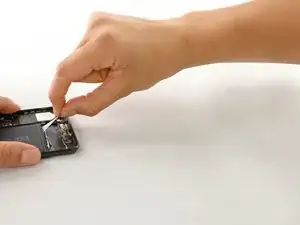

  25. yCTN6LZhhXohbl6l
    yCTN6LZhhXohbl6l
    DbBPVi4QViJGUeRi
    JJHnGyPRWFbZVRAe

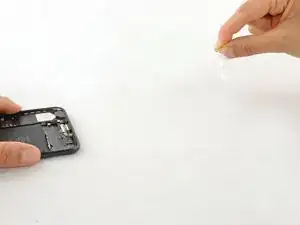

    • Versuche die Streifen während dieses Vorgangs flach und glatt zu halten, sonst werden sie zusammenkleben und reißen, anstatt sich sauber herausziehen zu lassen.

    • Ziehe langsam eine Akkuklebelasche weg vom Akku, in Richtung der Unterseite des iPhone.

    • Ziehe stetig und halte eine konstante Spannung auf dem Streifen, bis er zwischen der Batterie und dem hinteren Gehäuse herausrutscht. Das beste Ergebnis erhältst du , wenn du in einem Winkel von 60 ° oder weniger ziehst.

    • Der Streifen dehnt sich um ein vielfaches seiner ursprünglichen Länge aus. Falls nötig, kannst du beim Weiterziehen nochmal näher am Akku nachgreifen.

    the 1.5 yr old ifixit adhesive tears super easy in comparison to dozens of 3-5 yr old originals which never tore so keep alcohol ready which loosens it up like butter in a hot pan

    ibisiki -

    I broke 2 out of three of the adhesive strips doing it this way. On my third attempt I would pull a little bit of the adhesive strip out with one hand. And with the other hand use a finger to press down lightly on the adhesive strip as I was pulling it out. This pushes the strip down from the battery and frees the adhesive from it. You can feel the adhesive strip give way as you do. I did this very incrementally for what seemed like forever. I then used my tweezers to retrieve the first two adhesive strips out from under the battery ( They did not recoil too far) and repeated the same tactic as I did with the third adhesive strip. It was not too difficult to finish the job after that.

    gunnersman99 -

    One important remark : once you start pulling out one band, do not stop/pause in the middle of removing the band (to get a call or anything). Gently pull until it’s fully out.

    Faabio -

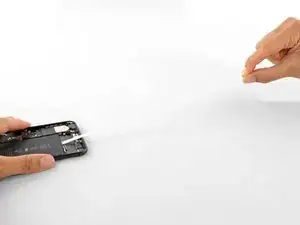

  26. Gvo2fQ6MhJOUSoB6
    Gvo2fQ6MhJOUSoB6
    RSlkP1XmKDD1QLFc

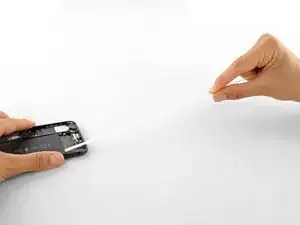

    • Wiederhole den vorherigen Schritt mit dem zweiten und dritten Streifen.

    • Halte den Akku noch fest, während du den zweiten Streifen entfernst, sonst könnte der Streifen den Akku herausschleudern, wenn er sich vom Gehäuse löst.

    • Wenn du alle Klebestreifen erfolgreich entfernt hast, kannst du den nächsten Schritt überspringen.

    • Andernfalls, wenn einer der Klebestreifen unter dem Akku gerissen ist und nicht entfernt werden konnte, fahre mit dem nächsten Schritt fort.

    Step 26 is when it’s time to remind ourselves we’re having fun! That tape material sure does stretch a lot so be mindful of your work station. I almost knocked a drink off the table. Thanks

    Jeff Padgett -

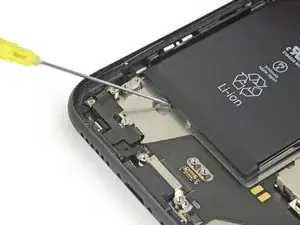

  27. usKsP51WGSuqjvFN
    usKsP51WGSuqjvFN
    wSJEZwiwRucyxjjy
    RkImXOsZ1IyjVDdC

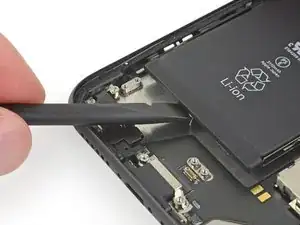

    • Wenn einer der Klebestreifen abgerissen ist und der Akku weiterhin im Gehäuse festklebt, dann gib einige Tropfen von hochkonzentriertem Isopropylalkohol (mehr als 90%ig) an der Stelle, wo der Klebestreifen gerissen ist, unter den Akkus.

    • Warte eine Minute, hebe dann den Akku vorsichtig hoch.

    • Setze die Karte nicht in den Bereich zwischen der Lautstärke leiser - Taste und der Oberkante des Akkus ein. Das Kabel für die Lautstärkeregelung liegt darunter und könnte beschädigt werden.

    • Hebele nicht gegen das Logic Board, das könnte das iPhone beschädigen.

    • Versuche nicht, den Akku mit Gewalt herauszuhebeln. Wenn es nötig ist, tröpfle noch mehr Alkohol unter den Akku, um den Kleber weiter zu schwächen. Verforme niemals den Akku und stich ihn nicht mit dem Werkzeug an.

    • Wenn der Akku immer noch festklebt, dann kannst du auch einen heißen iOpener oder einen Haartrockner benutzen, um damit die Gehäuserückseite direkt hinter dem Akku zu erwärmen. Sie sollte so heiß sein, dass du sie kaum anfassen kannst.

    • Wenn das iPhone zu heiß wird, kann der Akku in Brand geraten.

    • Als Alternative kannst du den Akku auch mit einem Stück Zahnseide vom Gehäuse trennen. Noch kräftiger als Zahnseide ist eine Gitarrensaite, etwa eine 0,009 E Saite aus einem 12 Saiten Set. Ziehe die Saite oder die Zahnseide unter den oberen Ecken des Akkus durch, bringe beide Enden zusammen, wickle sie um ein gefaltetes Tuch und ziehe gleichmäßig.

    i messed up and broke the strips. I had to carefully use a blow dryer on the back of the phone to heat the strips to the point of removal. VERY careful not to let the phone get too hot. I was nervous all the time that the battery which was a bit swollen, was going to explode.

    Tina Matthews -

    If a piece of the adhesive is left underneath the battery you can try to use some tweezers to tease it out to continue the pulling with your fingers.

    코코너즈L -

  28. eXnUuc1TkTGmVbIx

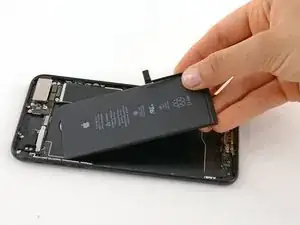

    • Entferne den Akku.

    • Wenn dein Ersatzakku in einer Plastikhülle geliefert wurde, dann entferne zuerst die Plastikhülle weg vom Flachbandkabel abziehst, und setze erst dann den Akku ein.

    • Stecke vor dem Festkleben des neuen Akkus den Akkustecker vorläufig in den Anschluss auf dem Logic Board ein. Dadurch nimmt der Akku die richtige Position in seiner Vertiefung ein.

    • Klebe den Akku fest, löse den Stecker wieder ab und fahre mit dem Zusammenbau fort.

    • Wenn an deinem neuen Akku noch keine Klebestreifen dran sind, dann folge dieser Anleitung, um die Klebestreifen korrekt anzubringen.

    • Führe nach dem Austausch einen erzwungenen Neustart durch. Dies verhindert einige Probleme und vereinfacht die Fehlersuche.

    When it came time to adhere the new battery in place, I realized there was a little space on all sides of the battery. I wasn’t sure how to position it, so I just centered it. But when I went to reattach the connector back to the logic board, it wasn’t aligned. I had to remove part of the strips and was able to salvage enough adhesive to reposition it. It was frustrating and I think giving people a heads up in future would be helpful. Maybe this is noted somewhere, but if it is, I missed it.

    I’m super pleased with the process otherwise. And with a new battery, it’s like I have a new phone!

    Philip Kendall -

    If you bought the glue strip for the display, you have to place it before you reconnect the display to assemble the iPhone to the back shell. Be careful while removing the plastic protection, the glue will stick at the protection foil.

    Michael Maier -

    These glue strips gave me issues. I ended up putting them on backwards and therefore the little edges that needed to be tucked under on the bottom were opposite and i had to tear them off on both the top and bottom because they ‘hung-over’. I have a bad hangover from hanging over this iphone for 3 hours trying to find tiny screws and not break my back or have an old bulging battery explode in my face. Not worth it.

    Tina Matthews -

    And the phone still doesn’t work

    Tina Matthews -

    I ran through this, and on reassembly the home button didn’t function properly. I found a link that said if you used alcohol to clean the edges in preparation for the new seal, that the alcohol will affect the home button. Drying it out gently with a light blast of compressed or warm air should resolve this. For me it didn’t. Next link I found warned that if the home button screw was too tight try backing it out and retightening it just to the point of resistance. Doing that restored the home button functionality.

    One other tip: reinstall the haptic generator before installing the battery to ensure the correct battery placement.

    Great instructions! Thanks iFixIt!

    sjzack31 -

Abschluss

Vergleiche dein neues Ersatzteil genau mit dem Originalteil. Möglicherweise musst du fehlende Bauteile übertragen oder Schutzfolien abziehen, bevor du es einbauen kannst.

Um dein Gerät wieder zusammenzusetzen, folge den Schritten in umgekehrter Reihenfolge.

Entsorge deinen Elektromüll fachgerecht.

Die Reparatur verlief nicht wie geplant? Probiere zunächst einige grundsätzliche Lösungsmöglichkeiten. Auf unserem Antwortenforum findest du Hilfe bei der Fehlerbehebung.

Tinte & Feder

Scott Havard

Mitglied seit: 28/06/16

48536 Reputation

47 Kommentare

can the battery from iPhone 7plus fit in the 6s plus? looks to me like is the same type of connector and same dimensions so it would be an easy way to gain 150 extra mah by using the iphone 7 plus battery

Alex

alexandrupaulpopa -

No, because the size are diferents

JOSE RAMON -

Of course you can! WHY NOT?

Manuel Tugentman -

How can I attach the screen back to the body after replacing the old battery,do i need any adhesive to attach the screen to the body?

Kaustubh Iyer -

Not necessarily.

Anan Venasakulchai -

Do I need any adhesive to attach the screen back to the body after replacing the old battery with a new one?

Kaustubh Iyer -

The display is held in with screws and clips, so everything will work fine if you reassemble the phone without replacing the adhesive. That said, your phone won't be as waterproof as it used to be. We do have replacement adhesive available for you, but we're still working on putting together a clear guide on how to install it properly. (Stay tuned!)

Jeff Suovanen -

no, you can use the same, unless you dont use the hairdryer/iOpener, then you will have to use a special adhesive

Vitor Hugo Tramontini -

Yesterday I'm buyed new iPhone 7plus

I have kept 100%charging

I have not used the phone

The charging will decreasing automatically

Wt is the reason I want

Hanuman -

Will this break it’s water resistance?

AdamTGG -

Yep. It’s not worth the risk. Just take the device to an Apple Store and pay the $80. That way you not only have a water resistant device, you also have a 90 day warranty on the battery AND the work performed on it. So if the phone’s water resistance fails because of the adhesive, Apple will replace the device without any additional cost.

rifster2001 -

the glue around the body must be put before reassembling the connectors of the display unit or after ?

Giulio Montanaro -

Sooo…in Step 24, DO NOT use the metal-tipped tweezers to “jam” under the Battery and try to pry up on it. You WILL risk puncturing the battery and catching the iPhone on fire.

richhowell -

I’ve replaced the battery. But it won’t turn back on? I can’t force restart it because my fingerprint button doesn’t work? Can you help?

jordiehowes -

Mine did the same thing, what do I do?

Riley Clark -

I did it and now my Iphone shows No service and the cellular option in Settings is completly blank. Anyone knows what can I do?

eduardgr5 -

Excelente guia he completado el trabajo, muy util para no aprender hechando a perder los equipos, los soguientes seran pan comido, saludos muchas gracias

Sergio Villanueva -

Is the battery Apple genuine

Jordan Mohammed -

when you open up the phone you might think that you don’t need to remove the Taptic Engine for the battery change. But when the adhesive breaks and you will need more space to pull the remaining adhesive out.

Don’t skip the steps.

Francis Zhao -

on ios 13.4 after replacing the battery the phone is indicating recharging but the % never goes up try with and older apple original same thing reinstalled my battery that i wanted to replaced and it recharge % goes up

Michel Jauvin -

Procedure rating is difficult. Very capable person here. I used to replace cracked screens on the 3 and 3S all the time when I was a lower end SE at my old software dev employer. (I had replaced everything on the 3s, home button, camera, battery, screen, etc.) Granted it's a different phone today, but I'm cautious, careful, and patient. Off the bat I cracked the screen because the instructions said to "twist the spudger to widen the opening". Tuck me. Crack spread out from the home button to ear piece. I used a Dyson hair dryer for 45 seconds to heat up phone base. After the crack I taped the screen w box packing tape to keep glass from going all over. Removal was fine after that. Didnt need additional heat, but it doesn't matter. Separated the phone and didn't bother replacing the battery now that I need a $75 screen. Using work phone as only phone for now.

Michael Healey -

After almost 3 and 1/2 years my wife’s and my batteries were at 77% capacity. Fresh batteries installed in both.

Michael -

so i replaced the battery, speaker and front camera/proximity sensor and now my phone is acting crazy. It randomly shuts down, no vibration, no sound, no wifi, and cant hear anyone when i call. What did i do? I work at a computer repair shop so this is kind of embarrassing….

Anthony Fieno -

So….my experience: Completed installation, Home button didn’t work. <Reason: Installed the connector in Step 16 upside-down>. Now ok, but….Fingerprint ID doesn’t work. Any thoughts?

trajan68 -

Great guide I felt so accomplished after replacing my battery

germaine andrew -

I used 2 iFixit kits to replace batteries in an iPhone 7 Plus and an iPhone X this week. Both jobs went smoothly, thanks to these online guides. The batteries showed 100% capacity with 0 cycles in coconutBattery Plus readouts. The batteries even were recognized by iOS as “Apple” batteries in the Settings/Battery app. This is a huge change as previous iFixit batteries I have installed were not recognized by iOS. Both iFixit kits contained all the exact tools needed, plus perimeter gaskets to reseal the screen to the body. The iPhone X kit even contained a new speaker gasket. Wow! iFixit is the best resource for Apple do-it-yourselfers. Thank you!

jescott3 -

hi guys i just wanted to ask whether u need 2 have the battery below 25% or can i start before?

John Bryce -

I replaced my battery but after I could hear any incoming calls on the ear speaker, can anyone help?

Feria -

Replaced the battery and the rear camera module in 30 minutes, great guide and replacement parts. Thank you iFixit

Georgi Ivanov -

Replacement successful. Didn’t attach adhesive yet. But i replaced the battery. Tip. Removing screws is easy but putting back in is a pain. If the screw is not fitting on the end of your screwdriver. Your using the wrong screwdriver. Realizing this makes it way easier

athomas101 -

Guide is really clear, took a little bit of time to clean the gunk from the adhesive from the phone to get the phone back together, but the ifixit battery fell in place perfectly and I’m happy overall with how the phone got back together.

Sven Sanchez -

Thank you! Like a glove! Correction: STEP 15 - Need Phillips screw driver

Victor Sea -

Shouldn't we use the adhesive on the battery while reassembling?

ديفاسيا جون ديفاسيا -

I replaced my battery and now my phone is stuck in Reboot loop. What’s the issue?

alexander koburov -

Worked Perfectly!!! Thank you guys so much, $30 for a new battery AND tools, cannot beat that!

Dustin Steward -

I need some help, please. The battery on my iPhone 7 plus swelled (not original ) so I bought a replacement and I changed it, at first it wasn’t charging even though it was showing as it was, the percentage still the same, then it started to do some funny things like draining the battery, going from 83 to 20 in a minute, and then it was impossible to use as it was restarting all the time. I thought something wasn’t connected properly or maybe I damaged something when I replaced it, I tried many times but it was doing the same. I put back the old swelled battery and it was fine, so I realised the battery was faulty, so Ive got a new replacement and its doing the same…. the only difference that I can see between the new replacements and swelled one is the APN number being 616-00249 and the old one 616-00250 but i’m not sure if that has anything to do with this problem…

Sol Portanova -

We are the Best Interior Designer in Noida specializing in exclusive, cost-effective and luxurious interior design, detailing and space planning in Noida.

The GoodWood -

I broke the glass at Step 9. Used the spudger instead of the opening pick. Glass broke when I preyed on the top right hand corner. Fortunately the glass had a screen protector on. So, no shards. Be careful! Maybe a WARNING should be added to Step 9.

Roland Carstaedt -

Hmm after replacement of the battery the phone powers up nicely; but now the home button doesn’t work. For the rest the phone is fully functioning again. (calling, silent/ring/vibrate all works, but the homebutton does not ‘tick’ nor activates anything. Any suggestions?

rondijkstra -

Thanks for making me look Soooooo smart !!!

matt hatfield -

Hello.

After installing the new battery, I noticed that the phone is warmer on the right side. The battery temperature is 35.8 degrees celsius. The phone seems much warmer on the right side looking at the screen. Is this normal?

tom -

These are instructions for removal, not replacement. It would be helpful to include instructions on when to install replacement adhesive.

Dylan -

In your step 24 going on to step25 you recommend peeling all three battery adhesive tabs up, and then pulling them out

I STRONGLY RECOMMEND peeling ONE tab up at a time, and then pulling it out immediately in one action

This prevents the pulled up, but as yet not pulled out, tabs contracting back, lost underneath the battery.

I also reccomend pulling the outer tabs first leaving the centre one until last as it's easier to hold on to a battery straight, than one which is additionally trying to rotate

Peter Kershaw -

I was sent a case with the battery but not for the phone I fixed. Insight case iPhone 7, repaired iPhone 7+.

SamJam -

I did every thing you explained on removing the iphone battery. However, I never found any strips to remove the battery and also it looks like its literally glued to the phone. I didnt want to remove it because I dont want to damage the phone but please can you tell me where to go from here with out me damaging the phone

Jay nice -

Hi @jaynycee, it sounds like the battery may have already been replaced if the tabs are missing. Use the instructions on step 27 to remove the battery without the pull tabs to loosen the adhesive.

Amber Taus -

Thank you very much!!!!!!!

Jay nice -
