Werkzeuge

Es werden einige allgemeine Werkzeuge verwendet, um an diesem Gerät zu arbeiten. Du wirst nicht jedes Werkzeug für jeden Vorgang benötigen.

Troubleshooting

Oh, no! If a problem has arisen with your device, diagnose it on the ASUS PadFone Troubleshooting Page

Background and Identification

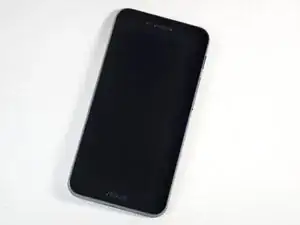

The ASUS PadFone X is a revolutionary AT&T LTE Android smartphone announced during CES 2014. Key features include Android 4.4 (Kit Kat), a 5-inch Full-HD touchscreen, and a 13MP camera for clear day photos and light sensitivity up to 400% for vivid night photos. A powerful processor, the Qualcomm Snapdragon 800 2.3GHz quad-core processor is incorporated into the phone to handle even the most demanding applications.

Unlike any other smartphone, however, the Padfone X can be transformed into a 9-inch tablet by simply sliding the phone into the back of the corresponding tablet. A separate tablet is no longer needed as the phones acts as the tablet’s processing hardware. As a result, only one data plan is necessary. The battery in the tablet can also be used to charge the smartphone when docked for 2x more battery life.

Technical Information

Dimensions

  • Size (inches): Phone : 5.67 x 2.85 x 0.39; Station: 9.86 x 6.78 x 0.46;
  • Weight (ounces): Phone: 5.29;Station: 18.13;

Battery

Capacity

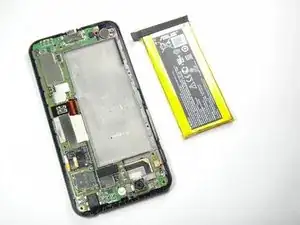

  • Phone: 2300 mAh Lithium Ion;
  • Station: 4990 mAh Lithium Ion

Talk time

  • Phone: up to 20 hours; Phone + station: up to 54 hours

Standby time

  • Phone: up to 19 days; Phone + station: up to 52 days

Memory

  • Internal memory storage up to 16GB
  • Expandable memory storage up to 64GB
  • Memory format: microSD™
  • RAM: 2GB

Wireless Technology

  • 4G-LTE Bands 1, 2, 3, 4, 5, 7 and 17
  • 4G HSPA+ with enhanced backhaul
  • 3G - UMTS: 850/900/1900/2100MHz
  • GSM/GPRS/EDGE: 850/900/1800/1900MHz
  • Wi-Fi® connectivity: 802.11 a/b/g/n/ac
  • 5GHz Wi-Fi-capable
  • Near Field Communication (NFC)
  • Open, secure, ISIS-ready
  • Bluetooth® technology v4.0
  • Mobile hotspots up to 5 devices
  • FOTA capable – upgrade Firmware OverThe Air

Operating System

  • Android™ v4.4 (KitKat)

Display

  • Size: 5inches
  • Resolution (pixels): 1920x1080 Full-HD IPS

Keyboard

  • Touchscreen
  • QWERTY
  • Virtual
  • Predictive text for fast typing
  • Backlit keys

Camera

  • Rear-facing camera: 13MP with LED Flash
  • Zoom magnification: 4x
  • Live video capture and playback: 1080p HD
  • Front-facing camera: Phone: 2MP; Station: 1MP

Additional Information
