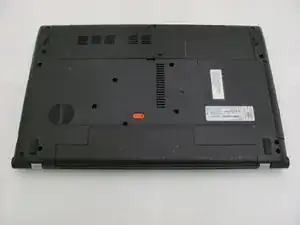

Back Panel
Werkzeuge
Es werden einige allgemeine Werkzeuge verwendet, um an diesem Gerät zu arbeiten. Du wirst nicht jedes Werkzeug für jeden Vorgang benötigen.
Troubleshooting
If you need some help fixing your laptop, head over to the Acer V3-551-8887 Troubleshooting Page.
Identification and Background
The V3-551-8887 is part of Acer's V3 series released in 2012. It is a 15.6 inch laptop weighing in at 15.6 pounds. It comes in a glossy black color-way and is 15 x 10 x 1.3 inches.
This laptop is extremely easy to fix. Once the back panel is removed, components practically replace themselves.
Technical Specifications
General
- System Type: Notebook
- Operating System: Microsoft Windows 7 Home Premium 64-bit Edition
- Manufacturer Warranty: 1 year warranty
Processor / Chipset
- CPU: AMD A8-4500M 1.9 GHz
- Max Turbo Speed: 2.8 GHz
- Number of Cores: Quad-Core
- Chipset: AMD A70M
Memory
- RAM: 4 GB
- Technology: DDR3 SDRAM
- Form Factor: SO DIMM 204-pin
Storage
- Hard Drive: 500 GB HDD / 5400 rpm
- Optical Drive: DVD±RW (±R DL) / DVD-RAM / BD-ROM - fixed
Display
- Type: 15.6"
- LCD Backlight Technology: LED backlight
- Resolution: 1366 x 768 ( HD )
- Image Aspect Ratio: 16:9
Audio & Video
- Graphics Processor: AMD Mobility Radeon HD 7640G
- Camera: Integrated webcam
- Sound: Microphone
Input
- Type: Keyboard, touchpad
- Features: Multi-gesture touch pad
Communications
- Wireless: 802.11n, Bluetooth 4.0
- Network Interface: Gigabit Ethernet
Battery
- Technology: 6-cell lithium ion
- Capacity: 4400 mAh
- Run Time: Up to 5 hours
AC Adapter
- Input: AC 120/230 V ( 50/60 Hz )
Connections & Expansion
- Interfaces: HDMI ¦ LAN ¦ USB 3.0 ¦ 2 x USB 2.0 ¦ VGA
- Memory Card Reader: Yes ( Memory Stick PRO )
Software
- Software Included: Windows Live Essentials, Bing Toolbar, Microsoft Office 2010 Starter
- Microsoft Office Preloaded: Includes a pre-loaded image of select Microsoft Office 2010 suites. Purchase an Office 2010 Product Key Card or disc to activate preloaded software on this PC.
