Acer Spin 5 SP513-51-57TP Repair

For information regarding common troubleshooting issues, check out the troubleshooting page.

The Acer Spin 5 is a 360° pivoting laptop with 4 modes for different tasks. This model of the Acer Spin 5, N16W1, was released on July 12, 2017. This device can be identified by its black metal exterior and grey Acer logo on the right side on the top of the laptop. This laptop has a touchscreen and folding hinges allowing it to be a tablet. The model number is found on the bottom of the laptop to the left on the center bar with information of the laptop.

The Acer Spin 5 smaller, sleek laptop with at 13.3” touchscreen display. Compared to the Acer Spin 3, the Spin 5 has a larger display, is lighter in weight, better speaker quality, improved battery life, and an upgraded processor. The Acer Spin 5 does have complaints from users like: low quality speakers, and poor display. The Acer Spin 5 has now been replaced by the Spin 7 made by Acer. The Spin 7 has a better processor, bigger display, and is the thinnest convertible laptop in the world.

The Acer Spin 5’s 4 Modes are:

• Laptop: For improved productivity, use of functional keyboard.
• Display: Great for slide shows or movies, and using touchscreen abilities.
• Tent: Best used when there is limited space available.
• Tablet: Perfect for browsing the internet, or casual use.

Model:

• Brand: Acer
• Series: Spin 5
• Model: N16W1
• Part Number: NX.GK4AA.021

Quick Info:

• Color: Obsidian Black
• Operating System: Windows 10 Home 64-Bit
• CPU: Intel Core i5-7200U 2.50 GHz
• Screen: 13.3" Touchscreen
• Memory: 8 GB DDR4
• Storage: 256 GB SSD
• Graphics Card: Intel HD Graphics 620
• Video Memory: Shared memory
• Communication: Gigabit LAN and WLAN
• Other Features: Accelerometer (G sensor)
• Style: Convertible
• Type: Mainstream
• Usage: Consumer
• Dimensions (W x D x H): 12.94" x 9.00" x 0.78"
• Weight: 3.53 lbs

CPU:

• CPU Type: Intel Core i5 7th Gen
• CPU Speed: 7200U (2.50 GHz)
• Turbo Frequency: Up to 3.10 GHz
• Number of Cores: Dual-core Processor
• Core Name: Kaby Lake
• CPU L3 Cache: 3 MB

Display:

• Screen Size: 13.3"
• Touchscreen: Yes
• Wide Screen Support: Yes
• Display Type: Full HD
• Resolution: 1920 x 1080
• LCD Features: In-plane Switching (IPS) Technology

Operating Systems:

• Operating System: Windows 10 Home 64-Bit

Graphics:

• GPU/VPU: Intel HD Graphics 620
• Video Memory: Shared system memory
• Graphic Type: Integrated Card

Storage:

• SSD: 256 GB

Memory:

• Memory: 8 GB
• Memory Spec: 8 GB x 1
• Memory Slot (Total): 1
• Memory Slot (Available): 0
• Max Memory Supported: 16 GB

Optical Drive:

• Optical Drive Type: No

Communications:

• LAN: 10/100/1000Mbps
• WLAN: 802.11ac Wi-Fi featuring MU-MIMO technology (Dual-Band 2.4 GHz and 5 GHz)
• Bluetooth: Bluetooth 4.1

Ports:

• USB: 1 x USB 3.0, 2 x USB 2.0
• HDMI: 1 x HDMI
• Audio Ports: 1 x Headphone/Microphone Combo Jack

Audio:

• Audio: Acer TrueHarmony High-Performance Sound System, Built-in Digital Microphone
• Speaker: Two Built-in Stereo Speakers

Input Device:

• Touchpad: Precision Touchpad (supporting Windows Modern Touchpad gestures)
• Card Reader: Secure Digital (SD) card reader
• Webcam: HD webcam (1280 x 720)

Power:

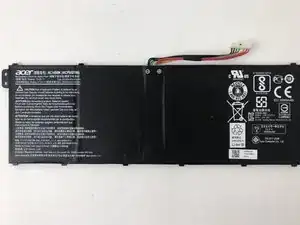

• Battery: 4-cell Li-Ion (3220 mAh) Battery
• Battery Life: Up to 10 hour(s) of battery life

Dimensions & Weight:

• Dimensions (W x D x H): 12.94" x 9.00" x 0.78"
• Weight: 3.53 lbs

Source: newegg.com Acer Spin 5 N16W1 Specifications
