Battery
Werkzeuge
Es werden einige allgemeine Werkzeuge verwendet, um an diesem Gerät zu arbeiten. Du wirst nicht jedes Werkzeug für jeden Vorgang benötigen.
Troubleshooting
If you are experiencing difficulties or defects with the laptop please proceed to the troubleshooting page.
Background and Identification
The Asus X553MA-BPD07051 laptop was released in 2015, with a Windows 8 system installed on it. It is black with black trim, medium-sized, entry-level laptop. The Asus X553MA-BPD07051 is around the same weight and size as other 15.6” laptops. It comes with an Intel HD Integrated Graphics card and an Intel Pentium N3540 quad-core processor, both of which are on the higher end of the type of chip that is usually found on laptops in this price range. It can be noted for having dual storage options with a mechanical hard drive and an SD driver. The device comes standard with 4 GB of RAM, a satisfactory amount for the average persons multi-tasking uses. The choice of upgrading to 8 GB of RAM is also an option, for those who run more complicated programs on their laptop. This laptop does not come enabled with Bluetooth and only has 2 USB ports, both of which are a potential negative for users. The easiest way to identify this device is by finding the model number. In order to find the exact model number for the laptop, look at the bottom of the device. Under the barcode, the model number should say X553MA-BPD07051 if this is your laptop. Any other number indicates that these are different laptops.
Specifications
- Dimensions: 28 x 25.2 x 2.53 cm (WxDxH)
- Weight: 2.2 kg

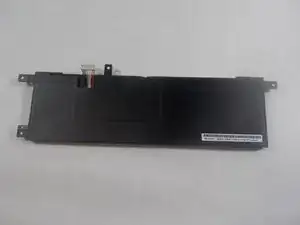

- Battery: 2 Cells 30 Whrs (Watt-hours)
- Audio: ASUS Sonic Studio
- Display: 15.6” Auto HD (1366x768 pixels)
- Interface:
- 1 x Combo Audio Jack
- 1 x Line-in Jack
- 1 x VGA port/ Mini D-sub 15-pin for external monitor
- 1 x USB 3.0 port
- 1 x USB 2.0 port
- 1 x RJ45 LAN Jack for LAN insert
- 1 x HDMI
- 1 x SD Card Reader
- 1 x AC Adapter Plug
- Camera: VGA Web Camera
- Card Reader: Card reader (SD SDHC)

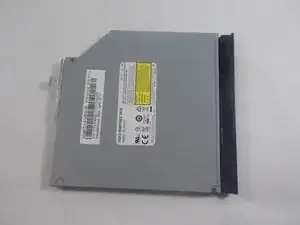

- Optical Drive / Disk Drive: Super-Multi DVD

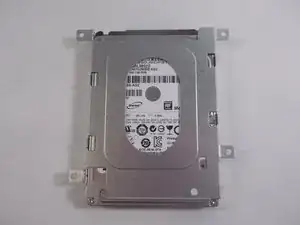

- Storage: 750 G hard drive, spinning at 5400 rpm

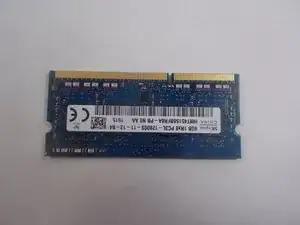

- Memory: DDR3L 1333 MHz SDRAM, up to 8G (Standard comes with 4 G of Ram)
- Security: Kensington Lock
- Operating System: Windows 8.1 Pro or Windows 8.1 (Can be upgraded to Windows 10
- Processor: Intel Bay Trail-M Quad Core Pentium N3540 Processor
- Certificates: UL, CE Marketing Compliance, BSMI, CCC, CB, EPEAT, EU Flower, Energy Star, CECP, WEEE
- Power Adapter:
- Plug type: 4mm
- Output: 19 V DC, 1.75 A, 33 W
- Input: 100 - 240 V AC, 50/60 Hz universal
