Troubleshooting

If you are experiencing difficulties with your DJI Mavic Mini, see the troubleshooting page to diagnose and resolve common problems.

Background

The DJI Mavic is a series of quadcopter drones for commercial and personal aerial videography and photography use. Mavic drones are produced by DJI, a Chinese technology company. The Mavic Mini was introduced in October 2019 as a replacement for the discontinued DJI Spark and marketed as a beginner camera drone.

The Mini’s camera is on a three-axis gimbal and features a 12-megapixel sensor capable of recording 2.7K video at 30fps. The Mavic Mini shares some design characteristics with the Mavic Pro and Mavic 2 series drones, though the Mini is especially small and portable. The Mini weighs only 249 grams (8.8 ounces), so it bypasses registration regulations in the United States, Canada, and the United Kingdom. In Japan, an even lighter model was released with a battery weighing 50 grams (1.8 ounces) less than the original Mini model to bypass Japan’s 200-gram registration regulations. The Mini has a range of approximately 4 kilometers, though most countries (including the United States) require line-of-sight to any unmanned aerial vehicle, regardless of the drone’s range.

A review of the Mavic Mini by WIRED appreciated the drone’s small size, three-axis stabilization, and nearly 30-minute flying time. The drone does not need to be registered with the FAA because of its weight but is so small that it can be hard to track in the sky. FAA regulations state that drone pilots must always be able to visually track UAVs, regardless of whether or not the drone is registered.

Identification

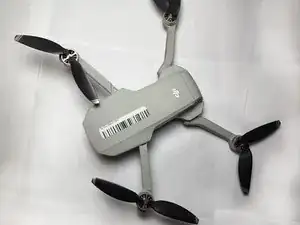

The Mavic Mini can be distinguished by other DJI drones by its small size and weight (unfolded with propeller dimensions of 245×290×55 mm (L×W×H)). It also includes the name “Mavic Mini” printed in capital letters on the side of the device.

Technical Specifications

Aircraft:

  • Takeoff Weight: 249 g
  • Dimensions:
    • Folded: 140×82×57 mm (L×W×H)
    • Unfolded: 160×202×55 mm (L×W×H)
    • Unfolded (with propellers): 245×290×55 mm (L×W×H)
  • Diagonal Distance: 213 mm
  • Max Ascent Speed:
    • 4 m/s (S Mode)
    • 2 m/s (P Mode)
    • 1.5 m/s (C Mode)
  • Max Descent Speed:
    • 3 m/s (S Mode)
    • 1.8 m/s (P Mode)
    • 1 m/s (C Mode)
  • Max Speed (near sea level, no wind):
    • 13 m/s (S Mode)
    • 8 m/s (P Mode)
    • 4 m/s (C Mode)
  • Maximum Takeoff Altitude: 3000 m
  • Max Flight Time: 30 minutes (measured while flying at 14 kph in windless conditions)
  • Max Wind Speed Resistance: 8 m/s (Scale 4)
  • Max Tilt Angle:
    • 30° (S Mode)
    • 20° (P Mode)
    • 20° (C Mode)
  • Max Angular Velocity:
    • 150°/s (S Mode)
    • 130°/s (P Mode)
    • 30°/s (C Mode)
  • Operating Temperature Range: 0° to 40°C (32° to 104°F)
  • Operating Frequency:
    • Model MT1SS5: 5.725-5.850 GHz
    • Model MT1SD25: 2.400-2.4835 GHz, 5.725-5.850 GHz
  • Transmission Power:
    • Model MT1SS5: 5.8 GHz: <30 dBm (FCC); <28 dBm (SRRC)
    • Model MT1SD25
      • 2.4 GHz: <19 dBm (MIC/CE)
      • 5.8 GHz: <14 dBm (CE)
  • GNSS: GPS+GLONASS
  • Hovering Accuracy Range:
    • Vertical: ±0.1 m (with Vision Positioning), ±0.5 m (with GPS Positioning)
    • Horizontal: ±0.3 m (with Vision Positioning), ±1.5 m (with GPS Positioning)

Gimbal:

  • Mechanical Range:
    • Tilt: -110° to 35°
    • Roll: -35° to 35°
    • Pan: -20° to 20°
  • Controllable Range: Tilt: -90° to 0° (default setting) -90° to +20° (extended)
  • Stabilization: 3-axis (tilt, roll, pan)
  • Max Control Speed (tilt): 120°/s
  • Angular Vibration Range: ±0.01°

Sensing System:

  • Downward: Operating Range: 0.5-10 m
  • Operating Environment:
    • Non-reflective, discernable surfaces
    • Diffuse reflectivity (>20%)
    • Adequate lighting (lux>15)

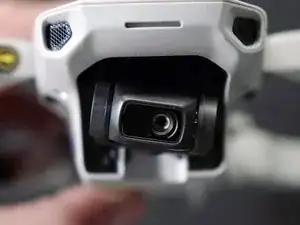

Camera:

  • Sensor:
    • 1/2.3” CMOS
    • Effective Pixels: 12 MP
  • Lens:
    • FOV: 83°
    • 35 mm Format Equivalent: 24 mm
    • Aperture: f/2.8
    • Shooting Range: 1 m to ∞
  • ISO Range:
    • Video:
      • 100-3200 (Auto)
      • 100-3200 (Manual) Photo:
      • 100-1600 (Auto)
      • 100-3200 (Manual)
  • Shutter Speed:
    • Electronic Shutter: 4-1/8000s
  • Still Image Size:
    • 4:3: 4000×3000
      16:9: 4000×2250
  • Still Photography Modes:
    • Single shot
    • Interval: 2/3/5/7/10/15/20/30/60 s
  • Video Resolution:
    • 2.7 K: 2720×1530 25/30 p
    • FHD: 1920×1080 25/30/50/60 p
  • Max Video Bitrate: 40 Mbps
  • Supported File System:
    • FAT32（≤32 GB）
    • exFAT（>32 GB）
  • Photo Format: JPEG
  • Video Format: MP4 (H.264/MPEG-4 AVC）

Remote Controller and Video Transmission:

  • Operating Frequency:
    • Model MR1SS5: 5.725-5.850 GHz
    • Model MR1SD25: 2.400-2.4835 GHz, 5.725-5.850 GHz
  • Max Transmission Distance:
    • Model MR1SS5
      • 5.8 GHz: 4000 m (FCC); 2500 m (SRRC)
    • Model MR1SD25
      • 2.4 GHz: 2000 m (MIC/CE)
      • 5.8 GHz: 500 m (CE)
  • Operating Temperature Range: 0° to 40°C (32° to 104°F)
  • Transmission Power (EIRP):
    • Model MR1SS5
      • 5.8 GHz: <30 dBm (FCC); <28 dBm (SRRC)
    • Model MR1SD25
      • 2.4 GHz: <19 dBm (MIC/CE)
      • 5.8 GHz: <14 dBm (CE)
  • Battery Capacity: 2600 mAh
  • Operating Current/Voltage:
    • 1200 mA 3.6 V (Android)
    • 450 mA 3.6 V (iOS)
  • Supported Mobile Device Size

** Max length: 160 mm

  • Max thickness: 6.5-8.5 mm
  • Supported USB Port Types: Lightning, Micro USB (Type-B), USB Type-C
  • Video Transmission System: Enhanced Wi-Fi
  • Live View Quality: 720p/30fps
  • Max. Bitrate: 4 Mbps
  • Latency (depending on environmental conditions and mobile device):170-240 ms

Charger:

  • Input: 100-240 V, 50/60 Hz, 0.5A
  • Output: 12V 1.5 A / 9V 2A / 5V 3A
  • Rated Power:18 W

Intelligent Flight Battery:

  • Capacity: 2400 mAh
  • Voltage: 7.2 V
  • Max Charging Voltage: 8.4 V
  • Battery Type: Li-ion 2S
  • Energy: 17.28 Wh
  • Net Weight: 100 g
  • Charging Temperature Range: 5° to 40°C (41° to 104°F)
  • Max Charging Power: 24 W

Intelligent Flight Battery (1100 mAh):

  • Capacity: 1100 mAh
  • Voltage: 7.6 V
  • Max Charging Voltage: 8.7 V
  • Battery Type: LiPo 2S
  • Energy: 8.36 Wh
  • Net Weight: 50 g
  • Charging Temperature Range: 5° to 40°C (41° to 104°F)
  • Max Charging Power: 18 W

App:

  • Name: DJI Fly
  • Required Operating System: iOS v10.0 or later Android v6.0 or later
