Reparaturanleitungen

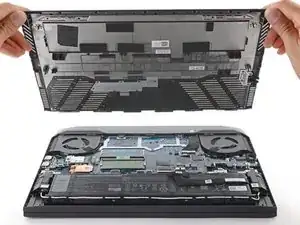

Back Cover

Back Cover

 en

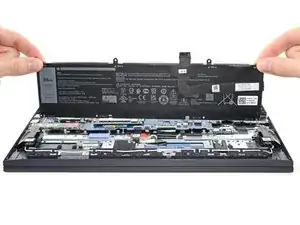

Battery

Battery

 en

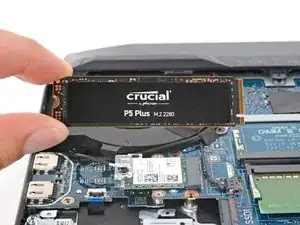

SSD

SSD

 en

Werkzeuge

Es werden einige allgemeine Werkzeuge verwendet, um an diesem Gerät zu arbeiten. Du wirst nicht jedes Werkzeug für jeden Vorgang benötigen.

Background

The Dell G15 series was created to bring an affordable gaming laptop to the appeal of consumers. Many themes were borrowed from the Alienware lineup, without making the design or price point too extreme. The keyboard and trackpad of the 5510 is friendly for an entry level gamer, while the great performance for this tier of laptop stacks up to its competitors. It offers upgradeable RAM and storage, a good set of ports, and a sleek exterior design.

Technical Specifications

General

Manufacturer: Dell Inc.

Released: 2021

Dimensions: 14 inches wide, 10.7 inches long, 0.84 inches (front ) / 0.92 inch (rear) thick

Processor

  • 10th Gen Intel Core
    • i5-10200H 4-core
    • i7-10870H 8-core

Graphics

  • Integrated
    • Intel UHD Integrated Graphics
  • Discrete
    • NVIDIA GeForce GTX 1650 - 4 GB
    • NVIDIA GeForce RTX 3050 - 4 GB
    • NVIDIA GeForce RTX 3050 Ti - 4 GB
    • NVIDIA GeForce RTX 3060 - 6GB

Storage

  • Two M.2 2230 / 2280 SSD PCIe Gen3 x4 NVMe up to 2 TB

RAM

  • Two SoDIMM slots
  • Dual-channel DDR4
  • 2933 MHz
  • 4 GB / 8 GB / 16 GB per slot

Battery

  • 56 Wh, 3-cell
  • 86 Wh, 6-cell

Display

  • FHD 1080p, 141 PPI, anti-glare, non-touch
    • 120 Hz, 600:1 contrast, 250 nits, 45% NTSC, lowest power consumption
    • 165 Hz, 800:1 contrast, 300 nits, 100% sRGB, lowest response time
    • 144 Hz, 800:1 contrast, 300 nits, 72% NTSC, wider view angle
