Dell Inspiron 15 3568

Reparaturanleitungen

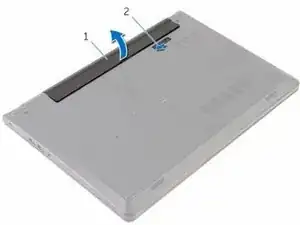

Battery

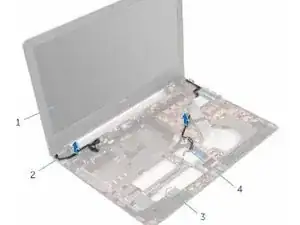

Display Assembly

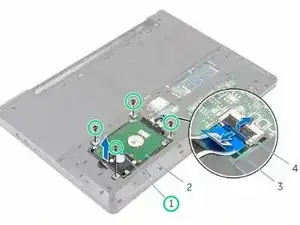

Hard Drive

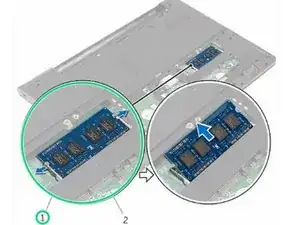

Memory Modules

Werkzeuge

Es werden einige allgemeine Werkzeuge verwendet, um an diesem Gerät zu arbeiten. Du wirst nicht jedes Werkzeug für jeden Vorgang benötigen.

Kreuzschlitzschraubendreher #0

The Inspiron 15 3568 is a mid-range laptop released by Dell around the years 2016 to 2018. It has a 15-inch screen with a low resolution of 1366x768. The 3568 is part of Dell’s Inspiron 15 3000 series, with other models in the line featuring different specifications. You can identify this specific laptop by looking on the bottom of the device for a sticker containing the model number “3568.” As shown in this Dell support article, the informational sticker can also be located inside the battery compartment. If the sticker contains the laptop’s service tag or service code (basically the serial number) you can enter it on the Dell support website for complete information about your device.

Under the case, the 3568 has a 7th-generation Intel processor paired with a discrete AMD graphics card on some models. Basically every component in this laptop can be accessed and upgraded or replaced if it breaks. The battery can be removed from the back of the laptop by releasing a single latch on the bottom case. The other commonly-upgraded components—the memory, hard drive, and wireless card—are all available under a hatch on the bottom of the device. If you can’t find a guide here on iFixit, the Inspiron 15 3000 service manual has excellent instructions on how to remove and replace all pieces of the laptop.

Processor
