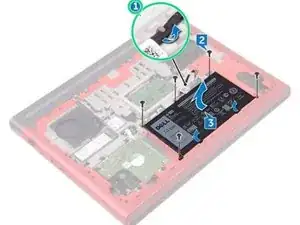

Battery
Werkzeuge
Es werden einige allgemeine Werkzeuge verwendet, um an diesem Gerät zu arbeiten. Du wirst nicht jedes Werkzeug für jeden Vorgang benötigen.
Background and Identification

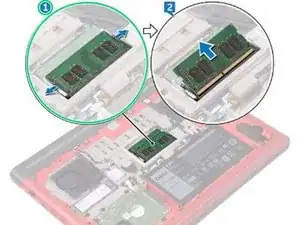

The Inspiron 15 Gaming 7567 is a gaming-oriented laptop released by Dell in 2017. The laptop is simple to open, requiring you to remove only one screw to pop off the back panel. Cool! Inside, the machine has a M.2 slot for an SSD and a second bay for an optional 2.5-inch SATA hard drive or SSD. Both drives are upgradeable. Out of the factory, only one of the user-upgradebale memory slots is populated—with either 8 GB or 16 GB—so it’s fairly simple to increase the RAM to a maximum of 32 GB if you need. If you can’t find guides here on iFixit, Dell has an excellent service manual for this model which describes the procedure to replace many components in the machine.
According to reviews, the laptop features long battery life, and the battery is replaceable if it goes bad. Depending on the model and price, the display can be a 1080p TN panel, a 1080p IPS panel, or a 4K IPS panel. Internally, the laptop uses an Intel Core i5 or Core i7 processor and a Nvidia GeForce GTX 1050 (Ti on some models) graphics card.
The Inspiron 15 Gaming 7567 comes in a case made from black or red plastic. Both versions have red accents behind the triangular grills at the back of the laptop. To find your exact model, locate the service tag or express service code on a sticker on the bottom of the laptop. Put one of these numbers into Dell’s support website to get more information.
Technical Specifications
Processor
- Quad-core Intel Core i5 7300 HQ
- or Quad-core Intel Core i7 7700 HQ
Memory
- Two slots for 260-pin SODIMMs
- DDR4 2400 MHz
- Maximum 2x16 GB
Graphics
- Nvidia GeForce GTX 1050
- or Nvidia GeForce GTX 1050 Ti
Display
- 1920x1080 TN or IPS panel
- or 3840x2160 IPS panel
Storage
- M.2 slot for SATA SSD
- Bay for 2.5-inch SATA hard drive or SSD
Ports
- Three USB-A 3.0 ports
- HDMI port
- 3.5 mm headphone and microphone jack
- Ethernet port
- SD/MMC reader
Wireless
- 802.11ac Wi-Fi
- Bluetooth 4.2
Power
- 74 WHr battery
- 130 W AC power adapter (19.5 V, 6.7 A)
