Dell Latitude D600 Repair

The thin-and-light Latitude D600 series, based on the new Pentium M processor, marks the start of an ambitious new corporate look for Dell. Not only has the company redesigned all of its popular Latitude laptops, it has also reworked its docking stations, port replicators, and media modules. The notebooks carry the very latest components, including Pentium M processors and Intel's new 855 chipset. The D600 series isn't always a true-blue Centrino, but it can be. The company offers either the Centrino-completing Intel Pro wireless mini-PCI card, known as Calexico, or Dell Computer's own TrueMobile Wi-Fi mini-PCI cards, supporting 802.11a/b/g. If your corporate budget includes money for a new laptop line, the Latitude D series is a wise way to spend it.

• D600 Spec Sheet

• System Type: Notebook

• Wireless capabilities: IEEE 802.11b

• Notebook type: Thin-and-light (4-6 lbs.)

• Manufacturer: Dell, Inc.

PROCESSOR / CHIPSET

• CPU Intel Pentium M 725 / 1.6 GHz

• Cache L2 - 2 MB

• Front Side Bus 400 MHz

• Chipset Intel 855PM

MEMORY

• Max RAM Supported 2 GB

• Technology DDR SDRAM

• Speed 266 MHz / PC2100

• Form Factor SO DIMM 200-pin

• Slots Qty 2

• Empty Slots 1

STORAGE

• Optical Drive CD-ROM - removable

• Read Speed 24x

• Optical Drive (2nd) none

DISPLAY

• Resolution 1024 x 768 ( XGA )

• Widescreen No

• Color Support 24-bit (16.7 million colors)

AUDIO & VIDEO

• Graphics Processor AGP 4x - ATI Mobility Radeon 9000 - 32 MB DDR SDRAM

• Sound Stereo speakers

• Compliant Standards AC '97

INPUT

• Type DualPoint

COMMUNICATIONS

• Wireless 802.11b

• Wireless Controller Intel PRO/Wireless 2100

• Network Interface Gigabit Ethernet

• Compliant Standards IrDA 1.0

MODEM

• Protocols & Specifications ITU V.92

• Max Transfer Rate 56 Kbps

BATTERY

• Installed Qty 1

• Max Supported Qty 2

• Capacity 32 Wh

AC ADAPTER

• Input AC 120/230 V ( 50/60 Hz )

CONNECTIONS & EXPANSION

• Expansion Bays 1 x front accessible

• Slots 2 x memory ( 1 free )

• 1 x Smart Card ( 1 free )

• 1 x PC Card ( 1 free )

• Interfaces 1 x serial - RS-232 - 9 pin D-Sub (DB-9)

• 1 x parallel - IEEE 1284 (EPP/ECP) - 25 pin D-Sub (DB-25)

• 1 x display / video - VGA - 15 pin HD D-Sub (HD-15)

• 1 x display / video - S-video output

• 1 x infrared - IrDA

• 1 x microphone - input - mini-phone 3.5 mm

• 1 x audio - line-out/headphones - mini-phone stereo 3.5 mm

• 2 x Hi-Speed USB - 4 pin USB Type A

• 1 x docking / port replicator - 280 pin docking

• 1 x modem - phone line - RJ-11

• 1 x network - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45

SOFTWARE

• Software Included Drivers & Utilities

DIMENSIONS & WEIGHT

• Width 12.4 in

• Depth 10.1 in

• Height 1.2 in

• Weight 4.6 lbs

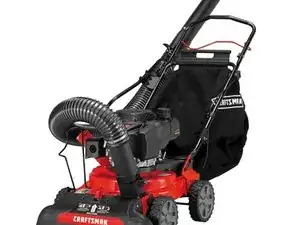

Craftsman Schredder and Vacuum 247.79689 (2017)
