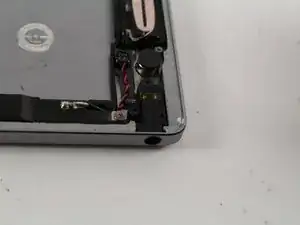

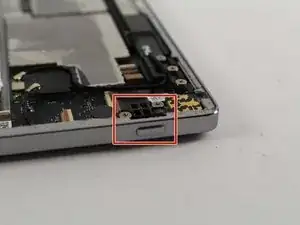

Headphone Jack
Werkzeuge
Es werden einige allgemeine Werkzeuge verwendet, um an diesem Gerät zu arbeiten. Du wirst nicht jedes Werkzeug für jeden Vorgang benötigen.
Troubleshooting
Identify and fix common issues with the device using our Google Pixel C Troubleshooting page.
Background and Identification
The Pixel C was launched in September 2015 as Google's first laptop/tablet hybrid. It is powered by an Nvidia Tegra X1 processor with 3 GB of RAM. The screen is 10.2-inch with a 2560-by-1800 IPS display. The Pixel C ships with Android 6.0 Marshmallow, which Google claims will receive updates every six weeks. The device supports a battery-powered accessory keyboard that connects to the tablet via Bluetooth and receives power through inductive charging from the tablet, when attached to the front or back. The Pixel C can be identified by the color LED bar on the back, and the model number, C1502W, that is located on the lower edge of the device.
Technical Specifications
Operating System
Android 7.1.1 Nougat
LED Display
10.2" LTPS LCD
2560 x 1800 pixels
308 PPI
Oleophobic Coating
Camera
Rear: 8MP
Front: 2MP
Audio & Port
Stereo Speakers
Quad Microphones
3.5 mm Audio Out
Processor
NVIDIA Tegra® X1 with Maxwell GPU
Memory & Storage
3 GB LPDDR4 RAM
64GB internal storage
Dimensions & Weight
242 x 179 x 7 mm
517 g
Material & Color
Anodized Aluminum
Silver
Battery & Charger
34.2 Whr
15W USB Type-C Charger
Wireless
802.11 a/b/g/n/ac, 2x2 (MIMO)
dual-band (2.4 GHz, 5.0 GHz)
Bluetooth® 4.1 + HS
Sensors
Gyroscope
Accelerometer
Ambient Light Sensor
Proximity Sensor
Compass
Hall Effect Sensor
Keyboard
Size
242 x 179 x 5.5 mm
Weight
399g
Battery
Capacity: 0.5 WHr
Inductive charging from Pixel C
Features
1.4mm (full) travel
Adjustable screen angle: 100 to 135-degrees
Pitch: 18.85 mm (99%)
