Back Panel
Werkzeuge
Es werden einige allgemeine Werkzeuge verwendet, um an diesem Gerät zu arbeiten. Du wirst nicht jedes Werkzeug für jeden Vorgang benötigen.
Troubleshooting
If you are having any difficulties with the HP Envy x360 m6 - aq003dx, try referring to the HP Envy x360 m6-aq003dx Troubleshooting

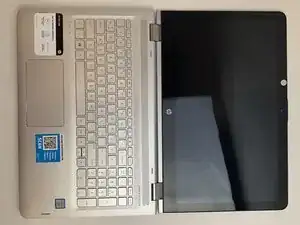

Background and Identification
The best way to identify this device is by the model number, m6-aq003dx, printed on the bottom of the device. It is a specific model from HP's Envy x360 line. It is a 15.6" touch screen laptop with 1920 x 1080 (Full HD) resolution which was released by HP in 2009 that can be converted into a tablet. These are the features associated with the HP Envy x360 m6 - aq003dx
- Intel Smart Cache
- Intel Turbo Boost Technology 2.0
- Intel Core i5 (6th Gen)
- Capacity: 1TB
- Integrate Webcam
The HP Envy x360 m6-aq003dx has not had any recalls, but spare batteries compatible with the HP Envy x360 m6-aq003dx that were sold between March 2013 and October 2016 have been recalled.
Specifications
Processor:
- CPU: Intel Core i5 (6th Gen) 6200U / 2.3 GHz
- Max Turbo Speed: 2.8 GHz
- Number of Cores: Dual-Core
- Cache: 3 MB
- 64-bit Computing: Yes
- Features: Enhanced SpeedStep technology, Hyper-Threading Technology, Intel Smart Cache, Intel Turbo Boost Technology 2.0
Cache Memory:
* Installed Size: 3MB
Storage:
- Interface: Serial ATA-600
Memory:
- Max Supported Size: 16 GB
- Technology: DDR4 SDRAM
- Speed:2133 MHz / PC4-17000
- Form Factor: SO-DIMM 260-pin
- Slots Qty: 2
- Empty Slots: 0
Ram:
- Memory Speed: 2133 MHz
- Memory Specification Compliance: PC4-170000
- Configuration Features: 1 x 8 GB + 1 x 4 GB
- Technology: DDR4 SDRAM
- Installed Size: 12 GB
- Rated Memory Speed: 2133 MHz
Display:
- LCD Backlight Technology: WLED backlight
- Resolution: 1920 x 1080 (Full HD)
- Widescreen Display: Yes
- Image Aspect Ratio: 16:9
- Monitor Features: Full HD ultra wide-viewing angle (UWVA), Mercury free, arsenic-free glass, edge-to-edge glass
- Type: LED
- Touchscreen: yes (multi-touch)
- TFT Technology: IPS
- Diagonal Size (metric): 39.6 cm
- Display Resolution Abbreviation: Full HD
Audio and Video:
- Graphics Processor: Intel HD Graphics 520
- Total Available Graphics Memory: 6216 MB
- Integrated Webcam: Yes
- Sound: Stereo speakers, two microphones
- Features: Bang & Olufsen Audio
Hard Drive:
- Spindle Speed: 5400 rpm
- Type: HDD
- Capacity: 1 TB
Battery:
- Capacity: 55.67 Wh
- Cells: 4-cell
- Technology: lithium ion
- Run Time (Up To): 9.75 hour(s)
Connections and Expansion:
- Interfaces: USB-C; HDMI; Headphone/microphone combo jack; 2 x USB 3.0
- Memory Card Reader: Yes
System:
- Notebook Type: 2-in-1
- Mechanical Design: 360° flip design
- Platform: Windows
- Hard Drive Capacity: 1 TB
Dimensions and Weight:
- Width: 15 in
- Depth: 9.8 in
- Height: 0.7 in
- Weight: 5 lbs
Source: cnet.com HP Envy x360 m6-aq003dx
