Back Panel
Werkzeuge
Es werden einige allgemeine Werkzeuge verwendet, um an diesem Gerät zu arbeiten. Du wirst nicht jedes Werkzeug für jeden Vorgang benötigen.
Troubleshooting
Find help with common issues with the HP Pavilion dm4-1265dx here.
Background & Identification
The HP Pavilion dm4-1265dx is a mobile computer device which was released November 25, 2010 and sold by Best Buy as a Hewlett-Packard variant. The Pavilion has not been discontinued by the manufacturer at the time of publication. The device runs on Intel i5 Core Processing and a Windows 7 Home Premium operating system. A 14" display is encased by a protective aluminum finish.
The total number of devices produced by Hewlett-Packard was never publicized, but reasonable estimates suggest more that one thousand total units were sold. This device was exclusive to Best Buy, and therefore only accessible to those in countries/areas in which Best Buy provides service.
This model has been known and confirmed to overheat by Hewlett-Packard. The battery has been known to need a replacement after 1-3 years of use.
Consumers tend to be satisfied with this product; several consumer review sites grade this product as a 8/10.
Common complaints cite the tendency of this product to overheat.
This model is part of the Pavilion family, which is now on the HP Pavilion Laptop - 15t-eg000 variant, produced in 2021. The dm4-1265dx replaced the dm3 line. The previous model lacked abundant memory, which the dm4 carried.

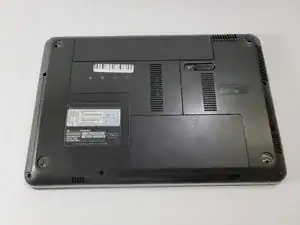

The dm4 is 4.33 lbs and a metallic aluminum color. It has dimensions of 13.30" (L) x 8.85" (W) x 0.96" (min H)/1.27" (max H). The device's name "pavilion dm4" is in the bottom right of screen border. The serial number sticker is on the underside of the screen. These features are distinguishable on all dm4 models and notably point out the device name and serial number. Aluminum was the only color produced for this dm4 Best Buy variant.
Technical Specifications
The HP Pavilion dm4-1265dx has the following features:
Microprocessor
2.40 GHz 2nd generation Intel Core i5-2430M Processor with Turbo Boost Technology up to 3.00 GHz
Memory

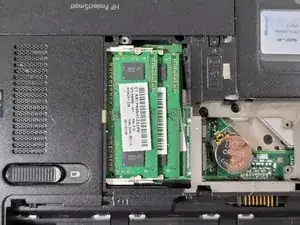

8GB DDR3 SDRAM (2 DIMM)
Memory Max
Maximum supported = 16GB
Video Graphics
Intel HD Graphics 3000
Video Memory
Up to 1696MB total graphics memory
Hard Drive

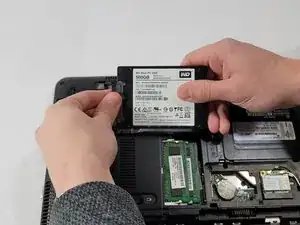

640GB 5400RPM hard drive with HP ProtectSmart Hard Drive Protection
Multimedia Drive
SuperMulti DVD burner
Display
14.0-inch diagonal HD BrightView LED-backlit display (1366 x 768)
Network Card
10/100/1000 Gigabit Ethernet LAN (RJ-45 connector)
Wireless Connectivity
802.11b/g/n WLAN (10b)
WiMAX combo card
Bluetooth with WiDi
Sound
Beats Audio with 2 speakers and a subwoofer
Keyboard
Full-size island-style keyboard
Pointing Device
HP Imagepad with on/off button and precision multi-touch gesture support.
PC Card Slots
- Digital media card reader for Secure Digital and Multimedia cards
External Ports
- 2 SuperSpeed USB 3.0
- 1 Universal Serial Bus (USB) 2.0
- 1 HDMI
- 1 VGA (15-pin)
- 1 RJ-45 (LAN)
- 1 Headphone-out/Microphone-in combo
Dimensions
13.30" (L) x 8.85" (W) x 0.96" (min H)/1.27" (max H)
Weight
4.33 lbs
Security
- Kensington MicroSaver lock slot
- Power-on password
- Accepts 3rd party security lock devices
Power
- 65W AC adapter

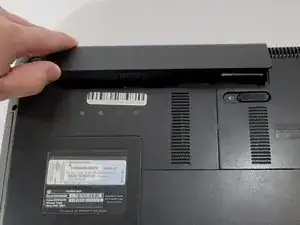

- 6-cell 55WHr lithium-ion battery
ID Mech Description
HP TrueVision HD Webcam (Skype HD capable) with integrated digital microphone
HP SimplePass with integrated fingerprint reader
(HP Customer Support)
Software
Operating System:
Genuine Windows 7 Home Premium (64-bit)
Additional Information
HP Pavilion dm4-1265dx Manufacturer
