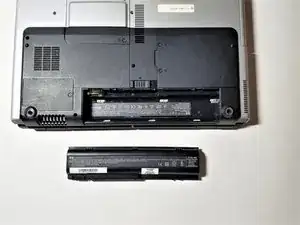

Battery
Werkzeuge
Es werden einige allgemeine Werkzeuge verwendet, um an diesem Gerät zu arbeiten. Du wirst nicht jedes Werkzeug für jeden Vorgang benötigen.
Troubleshooting
For help diagnosing an issue, check out our troubleshooting page here.
Background and Identification
The HP Pavilion dv4000 laptop (model number: EC681AV) was released in March 2005. It runs on the Windows XP operating system. This laptop is highly customizable, allowing access to each component to upgrade yourself. The dv4000 comes with a 6 cell battery but can be upgraded to a 12 cell battery, adding a little more weight. From the factory, this laptop is 6.5 pounds, with the 12 cell battery bringing it closer to 7 pounds. The screen is a vibrant and glossy, but can have a lot of glare in a bright room and even reflect like a mirror. The CD/DVD drive is equipped to burn discs, and is whisper quiet when readings DVDs.
Specifications
Processor
This laptop utilizes the Intel Pentium M 725 at 1.6GHz.
Memory
The laptop comes with 512 MB (2x256 MB) of DDR SDRAM. There are two memory slots, supporting up to 2 GB of DDR SDRAM at 333MHz.
Storage
This laptop comes with a 60 GB hard drive (4200 rpm).
This laptop has no limitations on upgrading the hard drive, as long as it is a 2.5" drive (3.5" desktop hard drives are too large).
Features
This laptop comes preinstalled with Windows XP and a CD/DVD drive. There is NO floppy disk drive in this laptop.
There is also NO built-in webcam on this laptop.
Built in wireless connection
1 x modem phone line connection (for a wired connection)
1 x Ethernet connection (for a wired connection)
1 x headphones output - 3.5 mm jack
1 x microphone input - 3.5 mm jack
4 x USB 2.0
Display
15.4" (diagonal) display monitor
The onboard graphics processor is the Intel GMA 900 with 128 MB of VRAM. The maximum screen resolution is 1280x800.
1 x S-video output
1 x VGA output
