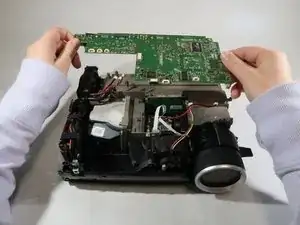

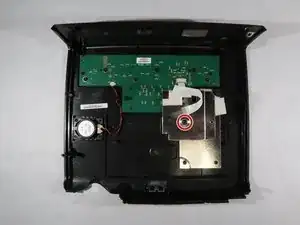

Daughterboard
Werkzeuge
Es werden einige allgemeine Werkzeuge verwendet, um an diesem Gerät zu arbeiten. Du wirst nicht jedes Werkzeug für jeden Vorgang benötigen.
Troubleshooting
For additional help with repairing the Infocus IN35W, check out the device’s troubleshooting page
Background and Identification
The IN35W was first released to the public in November 2009 by InFocus and was featured as a WXGA Portable Projector. This lamp-based projector is capable of displaying 2,500 Lumens in the brightest setting, having a native resolution of 1280x800.
The IN35W allows input from both a DVD player and HDTV receiver. The IN35W transforms a living room into a theater, weighing only 5.0 lbs and being compact in size (7cm x 22cm x 26cm). The IN35W comes with remote control with a range of 15 feet (4.5m).
Although the product has been discontinued by InFocus, customers have been pleased with the many features the device has to offer. The latest version of the Infocus Projector is the IN112AA, having 3800 lumens of brightness. The model number “IN35W” is located on the bottom of the projector in the top right corner of the device casing under the “InFocus” logo. It is important to locate where the model number is on the device so that the correct guides are being followed.
Technical Specifications
Model
Brand: InFocus
Model: IN35W
Color: Black
Size: 7cm x 22cm x 26cm (HxWxD)
Weight: 2.3 kg
Internal Speakers: 3.0 Watts
Power: 272 Watts 100V-240V
Connection Panel: RS232: DB-9pin
Display
Brightness: 2,500 ANSI Lumens
Resolution: 1280x800
Aspect Ratio: 16:10
Video Modes: 480i, 480p, 576i, 576p, 720p, 1080i
Data Modes: MAX 1600x1200
Lamp
Type: 220W SHP Bulb
Duration: 2,500-3,500 Hours
Model: SP-Lamp-026
Lens
Type: 1.2x manual zoom, manual focus
Image Size: 78-620cm
