Werkzeuge

Es werden einige allgemeine Werkzeuge verwendet, um an diesem Gerät zu arbeiten. Du wirst nicht jedes Werkzeug für jeden Vorgang benötigen.

Troubleshooting

If you are having trouble with your Lenovo IdeaPad 300-17ISK, head over to the troubleshooting page for additional assistance.

Background and Identification

The IdeaPad 300-17ISK is the only laptop in the IdeaPad 300 series with a 17” screen. The IdeaPad 300-17ISK was released in October 2016, weighs 6.61 lbs, and is 16.45" x 11.51" x 0.99".

For additional identification information, utilize the model description on the identification tag, located on the bottom of your laptop.

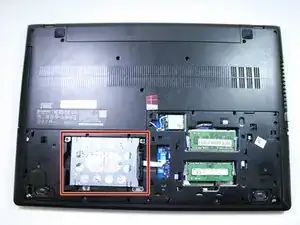

Thanks to smart hatch design, the memory and hard drive are easy to upgrade. The memory can be expanded up to 16 GB, and the 1TB hard drive provides plenty of storage space. On a single charge, the battery can last up to four hours. The laptop is also equipped with a webcam and a full-size keyboard.

Except for the battery, the laptop's major components are not difficult to replace. You can purchase the majority of the parts from an electronics store.

Technical Specifications

CPU

This laptop comes with one of the following CPUs, depending on the model purchased

  • Intel® Core™ i3-6100U (2.30GHz, 3MB Cache)
  • Intel® Core™ i5-6200U (2.30GHz, 3MB Cache)
  • Intel® Core™ i7-6500U (2.50GHz, 3MB Cache)
  • Intel® Core™ Pentium 4405U (2.10GHz, 2MB Cache)

Operating System

  • Windows® 10 Home Premium 64-bit

Memory

  • Up to 16GB (DDR3L-1600)

Graphics

The graphics Chip depends on the processor choice.

  • Intel® HD Graphics 510 (integrated)
  • Intel® HD Graphics 520 (integrated)

Dimensions

  • 418mm x 292.6mm x 25.1mm (16.45" x 11.51" x 0.99")

Optical Drive

The optical drive on this model is optional.

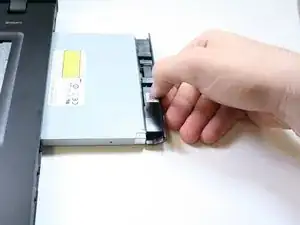

  • Tray-in 9.0mm-high DVDRW.

Camera

  • 0.3MP, fixed focus

Display

  • 17.3" (439mm) HD+ (1600x900), LED backlight, 200 nits, 16:9 aspect ratio, 300:1 contrast ratio

Weight

  • 3.0 kg (6.61 lb)

I/O Ports

  • 1 USB 3.0 port
  • 2 USB 2.0 ports
  • 4-in-1 reader (MMC, SD, SDHC, SDXC)
  • Audio Combo Jack
  • VGA port
  • HDMI port
  • RJ-45

Storage

  • 1TB (5,400 rpm)

Wireless Connectivity

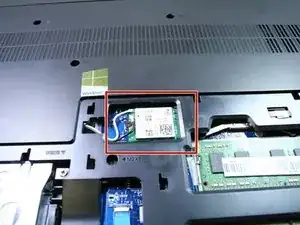

  • Intel Dual Band Wireless-AC 3165

Keyboard

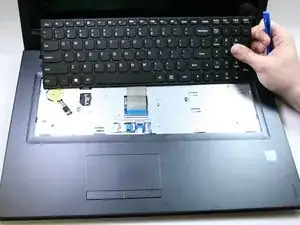

  • Full-size 6-row keyboard with multimedia keys and a numeric pad.

Battery Life

  • Up to 4 hours (4-cell)

Additional Information

Laptop Review: Lenovo IdeaPad 300-17ISK

Wikipedia: IdeaPad Laptops

Amazon

Hardware Maintenance Manual
