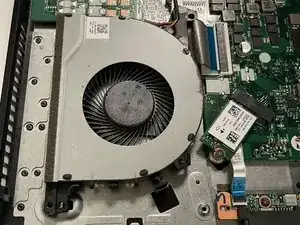

Fan Assembly
Werkzeuge
Es werden einige allgemeine Werkzeuge verwendet, um an diesem Gerät zu arbeiten. Du wirst nicht jedes Werkzeug für jeden Vorgang benötigen.
Troubleshooting
If you are experiencing technical difficulties with the Lenovo Ideapad 330-15ARR, see the Troubleshooting guide here.
Background
The Lenovo Ideapad 330-15ARR was released in 2018 as a part of Lenovo's Ideapad line, produced along with other 330 models. This line of pcs and home computers all ran on a Windows OS, with this model containing an AMD Ryzen 3 CPU.
The Lenovo Ideapad 330-15ARR is a portable laptop, weighing approximately 2.2 kg or 4.85 lbs. This specific model sports a 15.6-inch LCD display/screen, USB 3.0 and USB-C ports, a single HDMI connection port and a 4-in-1 memory card slot, as well as a front facing camera with an integrated microphone. The 330 series of laptops include other very similarly specified laptops such as the 330-14IGM, 330-15IGM and 330-17 subspecs, with the main difference being display size (14", 15" and 17" respectively.)
This model includes a free RAM slot below a metal sheet located on the underside of the device, allowing you to expand your device's memory beyond the principal memory slots. It also contains an integrated Wi-Fi adapter that, compared to other devices from similar manufacturers, performs below average. The Lenovo Ideapad 330-15ARR is considered an "affordable notebook" compared to other similar devices, falling in the range of $400-$1000 of all Ideapad 330 models in the same model year.
Identification
The Lenovo Ideapad 330-15ARR can be identified by its 15" LCD Display, surrounding dark grey frame and the identification sticker located on the underside of the laptop which contains the device's model name.
Specifications
Processor
AMD Ryzen 3 2200U 2 x 2.5 - 3.4 GHz, Zen
Graphics adapter
AMD Radeon RX Vega 3
Memory
4 GB, DDR4, Single-Channel
Display
15.60 inch 16:9, 1920 x 1080 pixel 141 PPI, BOE07A3, IPS
Mainboard
AMD CZ FCH
Storage
Seagate Mobile HDD 1TB ST1000LM035, 1024 GB, 860 GB Free Space
Soundcard
AMD Raven - Audio Processor - HD Audio Controller
Connections
3 USB 3.0 / 3.1 Gen1, 1 Kensington Lock, Combined Audio Jack, 4 in 1 card reader (SD/SDHC/SDXC/MMC)
Networking
Realtek RTL8168/8111 Gigabit-LAN (10/100/1000MBit/s), RealTek Semiconductor, Device ID: C821 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5), Bluetooth 4.1
Optical drive
PLDS DVD-RW DA8A6SH
Size
Height x Width x Depth (in inches) (0.91 x 14.88 x 10.24)
Battery
35 Wh, 4610 mAh Lithium-Ion, Battery runtime (according to manufacturer): 6 h
Operating System
Microsoft Windows 10 Home 64 Bit
Camera
Webcam: 0.3 MP
Additional features
Speakers: Stereo, Keyboard: Chiclet, No Keyboard Light, 24 Month Warranty
Weight
2.2 kg or 4.85 lbs, Power Supply: 214 g or .47 lbs.
