Lenovo ThinkPad T15 Gen 2 Repair

The Lenovo ThinkPad T15 Gen 2 is an all around laptop that is aimed at business professionals or entertainment. It is equipped with 11th generation Intel processors and the newer Intel Iris Xe graphics (with the optional NVIDIA GeForce graphics).

The Lenovo ThinkPad T15 Gen 2 has the classic ThinkPad look: matte-black finish with red accents. This model has a sleek design and is a compact laptop.

Display

• 15.6-inch FHD anti-glare; 1920 x 1080 pixels; 300 nits; optional multi-touch
• 15.6-inch UHD anti-glare; 3840 x 2160 pixels; 600 nits

Processor

• Intel Core i5/i7 11th generation

Graphics

• Intel Iris Xe graphics
• NVIDIA GeForce MX450

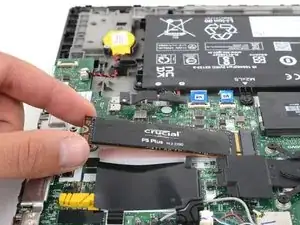

Storage

• Up to 256 GB M.2 2242 or up to 2 TB M.2 2280

Memory

• One slot soldered to the motherboard and one DDR4-3200 slot
  • Up to 40 GB (8 GB soldered and 32 GB DDR4) or up to 48 GB (16 GB soldered and 32 GB DDR4)

Wireless

• Intel AX201/AX210 and Bluetooth 5.1

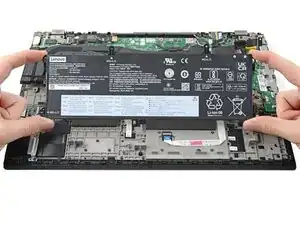

Battery

• 57-watt-hour Li-Polymer battery (rapid charge support)

Dimensions

• Width: 14.4 inches (365.8 mm)
• Depth: 9.76 inches (248 mm)
• Height: 0.75 inches (19.1 mm)
• Weight (model dependent): 3.86 - 4.07 pounds (1.75 - 1.84 kg)

Ports

• 2 Thunderbolt 4 ports
• Side docking connector (select models)
• 2 USB 3.2 Gen 1 ports
• HDMI 2.0
• 3.5 mm headphone/microphone combo jack
• microSD-card reader
• Smart card reader (select models)
• Ethernet (RJ45)
• Kensington security slot
