Lenovo ThinkPad T495 Repair

Reparaturanleitungen

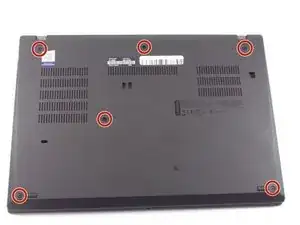

Baseplate

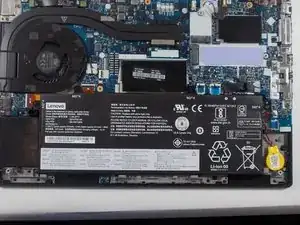

Battery

CPU Fan

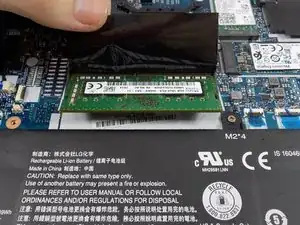

RAM

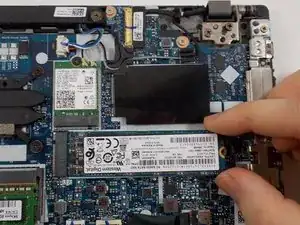

Solid State Drive

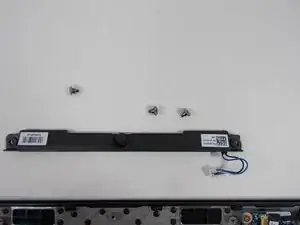

Speaker

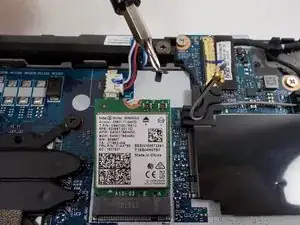

Wi-Fi Card

Werkzeuge

Es werden einige allgemeine Werkzeuge verwendet, um an diesem Gerät zu arbeiten. Du wirst nicht jedes Werkzeug für jeden Vorgang benötigen.

Find help for common issues with the Lenovo ThinkPad T495 here.

The Lenovo ThinkPad T495 (Type Number: 20NK-S3CV0K) is a laptop that was released in May 2019, alongside the ThinkPad T495s. This laptop features an AMD Ryzen 7 Pro 3700U Processor with a 14'' display, and Windows 10 as its operating system. The laptop weighs 3.4 lbs (1.54 kg), and has a black plastic exterior and interior. It also features 4 USB ports, a MicroSD card reader, and a headphone/microphone combo port.

Dimensions: 13.03" x 8.94" x 0.7" / 331 x 227 x 17.9 (mm)
Weight: Starting at 3.4 lbs (1.54 kg)
Display: 14.0" FHD (1920 x 1080) IPS, anti-glare, 250 nits
Processor: AMD Ryzen™ 7 Pro 3700U Processor (2.30 GHz, up to 4.00 GHz Max Boost, 4 Cores, 8 Threads, 4 MB Cache)
Operating System: Windows 10 Pro
Memory: 8 GB DDR4 2400MHz
Battery:
- Up to 14.9 hours; 50Wh
- Rapid-charging technology available with 65W AC
Storage: 256 GB PCIe SSD
Graphics: Integrated AMD Radeon^™ Vega 10 Graphics
Camera: 720p HD camera with microphone
Security:
- dTPM 2.0
- ThinkShutter
- Match-on-Chip touch fingerprint reader (Optional)
- IR camera for Windows Hello (Optional)
Connectivity:
- WWAN: Fibocom L850-GL 4G LTE CAT9 (optional)
- WLAN: Intel^® 9260 802.11 AC (2 x 2)
- Bluetooth^® 5.1
Ports / Slots:
- USB 3.1 (Gen 1)
- USB 3.1 (Gen 2)**
- 2 x USB-C 3.1 Gen 2 (Power Delivery, DisplayPort, Data transfer)
- MicroSD card reader
- HDMI 2.0
- RJ45
- Smart card reader (Optional)
- Headphone / mic combo
