Battery
Werkzeuge
Es werden einige allgemeine Werkzeuge verwendet, um an diesem Gerät zu arbeiten. Du wirst nicht jedes Werkzeug für jeden Vorgang benötigen.
Troubleshooting
If you need help identifying issues with the Lenovo YOGA 730-15IKB, check out the troubleshooting page.
Background
The YOGA 730-15IKB is a 2-in-1 laptop released by Lenovo in 2018. This model can be identified by the name Lenovo YOGA 730-15IKB printed on the bottom of the laptop near the Lenovo logo. The laptop comes in a shiny platinum color and a dark gray version.
The YOGA 730-15IKB replaces its predecessor, the YOGA 720-15IKB, and sports a more efficient 8th generation Intel Core i7 processor. With a dedicated GTX 1050 graphics card, the computer can handle light gaming and other graphics-intensive tasks. The laptop also supports the Lenovo Active Pen 2, which you can use to take notes or draw on the 360 degree foldable touchscreen.
Lenovo offers multiple configurations for this laptop, so your processor, memory, and storage might vary. You can find part numbers for replacements on this Lenovo Support page. You can find some parts on the iFixit store page or from Lenovo’s supplier.
Specifications
Processor
- Intel Core i5-8250U at 1.6 GHz (3.4 GHz boost)
- Intel Core i7-8550U at 1.8 GHz (4.0 GHz boost)
- Both models have 4 cores, 8 threads
Memory
- Up to 16 GB total
- 8 GB soldered to the motherboard
- One SO-DIMM slot for up to 8 GB extra
- Uses DDR4 memory at 2400 MHz
Storage
- Removable internal SSD
- M.2 form factor
- PCIe 3.0 x4 interface
Graphics
- Intel UHD Graphics 620
- Nvidia GeForce GTX 1050
Display
- 15.6 inches (39.6 cm) on the diagonal
- 1920x1080 pixels IPS panel
- or 3840x2160 pixels IPS panel
- Anti-glare
- 300 nits of brightness
- 10-point multitouch touchscreen
Connections
- USB-C 3.0 port (with Thunderbolt 3)
- Two USB-A 3.0 ports
- HDMI port
- 3.5 mm headphone/microphone combo jack
Wireless
- 2x2 802.11ac Wi-Fi
- Bluetooth 4.1
- Removable wireless card
Power
- 51.5 Wh lithium-ion battery (11.4 V)
- Charges with a 65 W or 90 W AC adapter
Additional features
- 720p webcam (1.0 MegaPixel)

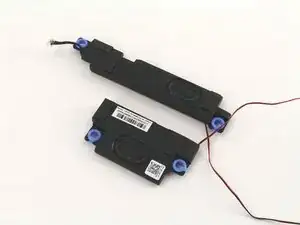

- Stereo speakers
- Fingerprint reader
