Identification and Background

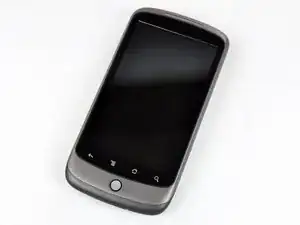

The Nexus One was released on January 5, 2010.

Technical Specs

Power and battery

  • Removable 1400 mAh battery
  • Charges at 480 mA from USB, at 980 mA from supplied charger

Processor

  • Qualcomm QSD 8250 1 GHz

Operating system

  • Android Mobile Technology Platform 2.1 (Eclair)

Capacity

  • 512 MB Flash
  • 512 MB RAM
  • 4 GB Micro SD Card (Expandable to 32 GB)

Location

  • Assisted global positioning system (AGPS) receiver
  • Cell tower and Wi-Fi positioning
  • Digital compass
  • Accelerometer

Size and weight

* Height 119 mm

* Width 59.8 mm

* Depth 11.5 mm

Display

  • 3.7 inch (diagonal) widescreen WVGA AMOLED touchscreen
  • 800 x 480 pixels

Camera & Flash

  • 5 megapixels
  • Autofocus from 6 cm to infinity
  • 2X digital zoom
  • LED flash
  • User can include location of photos from phone's AGPS receiver
  • Video captured at 720x480 pixels at 20 frames per second or higher, depending on lighting conditions

Cellular & Wireless

  • 3 UMTS bands (either 900/AWS/2100 MHz or 850/1900/2100 MHz)
  • HSDPA 7.2 Mbps
  • HSUPA 2 Mbps
  • GSM/EDGE (850, 900, 1800, 1900 MHz)
  • Wi-Fi (802.11b/g)
  • Bluetooth 2.1 + EDR
  • A2DP stereo Bluetooth

Graphics, video and audio

  • Audio decoders : AAC LC/LTP, HE-AACv1 (AAC+), HE-AACv2 (enhanced AAC+) Mono/Stereo standard bit rates up to 160 kbps and sampling rates from 8 to 48 kHz, AMR-NB 4.75 to 12.2 kbps sampled @ 8 kHz, AMR-WB 9 rates from 6.60 kbps to 23.85 kbps sampled @ 16 kHz, MP3 Mono/Stereo 8-320 kbps constant (CBR) or variable bit-rate (VBR), MIDI SMF (Type 0 and 1), DLS Version 1 and 2, XMF/Mobile XMF, RTTTL/RTX, OTA, iMelody, Ogg Vorbis, WAVE (8-bit and 16- bit PCM)
  • Image : JPEG (encode and decode), GIF, PNG, BMP
  • Video : H.263 (encode and decode) MPEG-4 SP (encode and decode) H.264 AVC (decode)
  • Audio encoders : AMR-NB 4.75 to 12.2 kbps sampled @ 8 kHz
