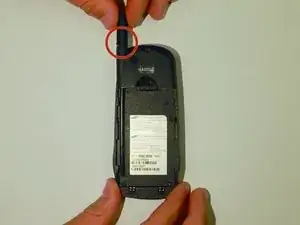

Antenna
Werkzeuge
Es werden einige allgemeine Werkzeuge verwendet, um an diesem Gerät zu arbeiten. Du wirst nicht jedes Werkzeug für jeden Vorgang benötigen.
Troubleshooting
For more information regarding common troubleshooting issues, click here: Samsung Portable Dualband Tri-Mode Troubleshooting
Identification and Background
Device Name: Samsung Portable Dualband Tri-Mode Phone
Model Number: SCH-N150
Release Date: May 18, 2001
Distinguishing Features: Front flip cover that protects keypad
Major Facts: The SCH-N150 is an entry-level CDMA phone that features capabilities such as two-way text messaging and Internet access.
Specifications and Features
Features - Availability
- Weight: 4.2 oz.
- Dimensions: 4.57" x 1.97" x .84"
- Cellular Technology CDMA
- Analog Support (Older Cellular System): yes
- Included Games: yes
- Phone Book Entries: 100
- Stand-by Time: 140 hours
- WAP: yes
- Alarm Clock: yes
- Call Transfer: yes
- Call Waiting: yes
- Caller ID: yes
- E-mail: yes
- Fax: yes
- Voice Dialing Numbers: yes
Samsung phone/battery specifications
Dual Band: CDMA 1.9GHz / CDMA 800 MHz/AMPS 800 MHz
Display Screen: Graphical LCD up to 6 lines w/1 dedicated Icons Line)
Battery Type: Standard: Lithium-Ion
PCS Antenna: Retractable, user-replaceable
Samsung phone with standard battery
Dimensions (H x W x D:) 4.5 x 2.0 x 0.8 inches or 116 x 52 x 21 mm
Weight: 4.2 oz. (120 g)
Volume: 107 cc
Talk Time Digital: Up to 2.8 hours
Standby Time Digital: Up to 140 hours
Analog: 15 hours
Sony Corp. TYPE BST0369DE, Rated 3.7V 900mAH LI-ion

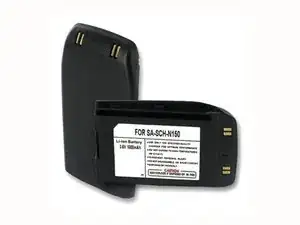

Samsung phone with extended battery
Dimensions (H x W x D:) 4.5 x 2.0 x 1.0 inches or 116 x 52 x 24.5 mm
Weight: 4.4 oz. (125 g)
Volume: 112 cc
Talk Time Digital: Up to 3.9 hours
Analog: Up to 1.6 hours
Standby Time Digital: Up to 200 hours
Analog: 23 hours
Sony Corp. TYPE BEX036DDE, Rated 3.7V 1300mAH LI-ion
