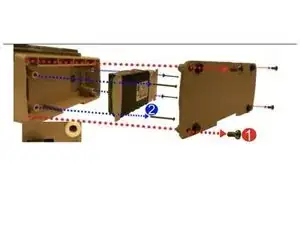

Battery Compartment Kit
Troubleshooting
For additional help on the Zoll Impact Uni-Vent 731, check out the device's troubleshooting.
Background and Identification
Designed to meet military and civilian transport standards, the versatile Impact Uni-Vent® 731 EMV+ portable critical care ventilator is ideal for air medical and ambulance transport of infants (≥5 kg), pediatric patients, and adults. The EMV+ is lightweight yet rugged and features an energy-efficient integrated, high-flow compressor and oxygen system.
Source: https://www.mmemed.com/zoll-ventilators/...
Specifications
General
- Size: 8.0” wide x 12.5” high x 4.5” deep (20.3 cm wide x 31.8 cm high x 11.4 cm deep)
- Weight: 9.7 lbs (4.4 kg)
Clinical Specifications
- Operating Modes: AC, SIMV, CPAP, BL
- Breath Target: Volume and pressure
- Special Functions: Plateau Pressure, Manual Breath, Apnea Backup, Oxygen in Use, Inverse Ratio
- Flow Rate: 0 to 100 LPM @ 40 cm H2 O
- Breath Rate: 1 to 80 BPM
- Tidal Volume: 50 to 2000 ml ATPD ± 10% of setting
- Inspiratory Time: 0.3 to 5.0 seconds
- I:E Ratio: 1:99 to 4.0:1.0
- FiO2 : 21 to 100% ± 3% of full scale ± 10% of setting
- PEEP: 0 to 30 cm H2 O
- Pressure Support: 0 to 60 cm H2 O
- Peak Inspiratory Pressure (PIP): 10 to 80 cm H2 O
- Trigger Sensitivity: -0.5 to -6.0 cm H2 O
- Oxygen Input Pressure: 55 psig (-25%; + 20%) (380 kPa)
Safety Specifications
- Airway Pressure High Limit: 20 to 100 cm H2 O values
- Airway Pressure Low Limit: Off, 3 to 35 cm H2 O
- BPM High Alarm Limit: Off, 2 to 99
- BPM Low Alarm Limit: 2 to 40
- LED Status/Alarm Indicator: Red, yellow, and green LCD/LED adjustable
Environmental
- Operating Voltages: 100 to 240 VAC (50/60 Hz) or 12.5 to 28.0 VDC
- Operating Time: Internal battery 10 hours
- Temperature Ranges:
- Operating: -25° to 49°C (-13° to 120°F) with battery charging, battery discharge and AC power operation
- Battery Charging: 0° to 45°C (32° to 113°F)
- Long-Term Storage: -15° to 21°C (5° to 71°F) Optimal storage conditions
Source: Zoll Impact 731 Series Specs
