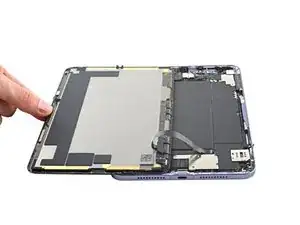

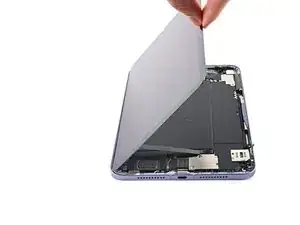

Screen Removal

en

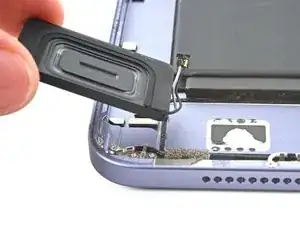

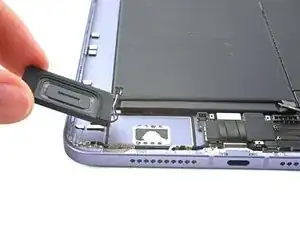

Bottom Speaker

Bottom Speaker

 en

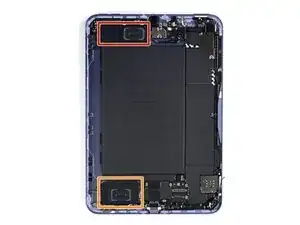

Speaker Legend

Speaker Legend

 en

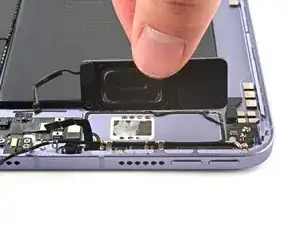

Top Speaker

Top Speaker

 en

Werkzeuge

Es werden einige allgemeine Werkzeuge verwendet, um an diesem Gerät zu arbeiten. Du wirst nicht jedes Werkzeug für jeden Vorgang benötigen.

Background and Identification

In its first major design refresh since its inception in late 2012, Apple’s 6th generation iPad mini launched on September 24th, 2021 alongside the iPhone 13 lineup. It adopts the boxy all-screen design of the iPad Pro and iPad Air 4, with Touch ID integrated into the top button. The iPad mini 6 drops the lightning port for USB-C, includes second-generation Apple Pencil support, supports 5G, and sports a slightly down-clocked version of the iPhone 13 Pro’s 5-GPU core A15 Bionic.

The mini 6 comes in Space Gray, Starlight, Pink, or Purple, and can be configured with either 64 or 256 GB of internal storage. There are two variants of the iPad mini 6: a Wi-Fi only model and a 5G-enabled version.

The iPad mini 6 starts at $499 and can be identified by model numbers A2567, A2568, A2569, A2645, and A2643 depending on region.

Technical Specifications

Announce date: September 14th, 2021

Operating System: iPadOS 15

Display:

  • 8.3-inch “Liquid Retina” IPS
  • Multi‑touch
  • 2266 × 1488 pixel resolution (326 ppi)
  • True Tone
  • P3 wide color gamut
  • 500 nits max brightness
  • Fingerprint-resistant oleophobic coating
  • Apple Pencil support (2nd generation)

Primary camera:

  • Quad-LED True Tone flash
  • 4K video recording up to 60 fps
  • Rear-facing wide-angle module
    • 12 MP
    • ƒ/1.8 aperture
    • Autofocus with Focus Pixels
    • Five-element lens

FaceTime HD camera:

  • Front-facing ultra-wide (122˚ field of view)
    • 12 MP
    • ƒ/2.4 aperture
    • 1080p video recording, up to 60 fps
    • Retina Flash

Processor: A15 Bionic with 16-core Neural Engine

  • 5 nm process
  • 6-core CPU
  • 5-core GPU

RAM: 4 GB

Storage: 64 or 256 GB

Battery: 5034 mAh, 19.19 Wh

Sensors:

  • Touch ID
  • Barometer
  • Three-axis gyro
  • Accelerometer
  • Ambient light sensor

Wireless Connectivity:

  • 802.11ax Wi‑Fi 6 dual band, HT80 with MIMO
  • Bluetooth 5.0
  • Cellular models: 5G NR, FDD-LTE, TD-LTE

Ports:

  • USB 3.1 Gen 1 Type-C with support for charging, DisplayPort

Dimensions: 7.69 × 5.3 × 0.25 in (195.4 × 134.8 × 6.3 mm)

Weight:

  • Wi-Fi models: 293 g (10.4 oz)
  • Wi-Fi + Cellular models: 297 g (10.56 oz)

Colors: Space Gray, Starlight, Pink, and Purple
