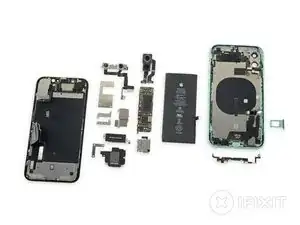

Teardown

Check out our iPhone 11 teardown blog post for more in-depth teardown analysis!

Background and Identification

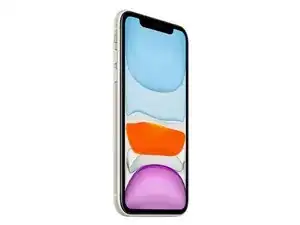

Not to be confused with the more expensive iPhone 11 Pro and Pro Max, the standard iPhone 11 is Apple’s mainstream smartphone starting at $699 USD. It is most easily distinguished from its predecessor, the iPhone XR, by its large square-shaped rear camera bump, with a new dual-lens camera system; it also has a more centrally-located Apple logo and lacks the word “iPhone” on the back. It’s available in six colors (black, white, red, purple, yellow, and green).

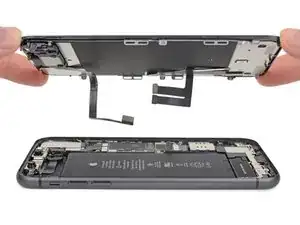

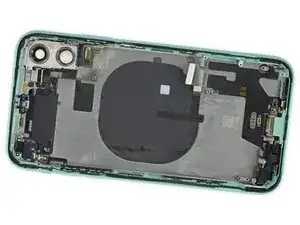

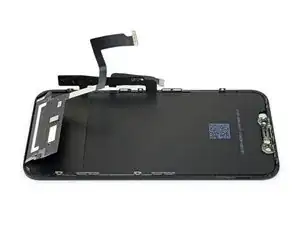

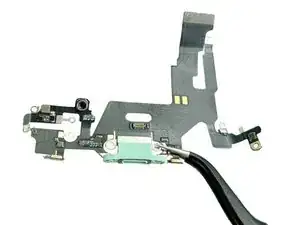

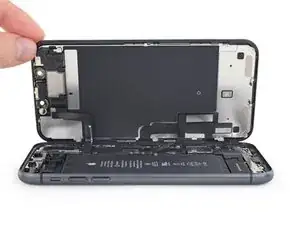

The most often replaced iPhone 11 parts include the battery, screen, antennas and lightning connector assembly.

Specifications

Announce date: September 10, 2019

Operating System: iOS 13

Display:

  • 6.1-inch “Liquid Retina” LCD
  • Multi‑touch display with IPS technology
  • 1792‑by‑828‑pixel resolution at 326 ppi
  • 1400:1 contrast ratio (typical)
  • True Tone
  • P3 wide color gamut
  • 625 nits max brightness (typical)
  • Fingerprint-resistant oleophobic coating

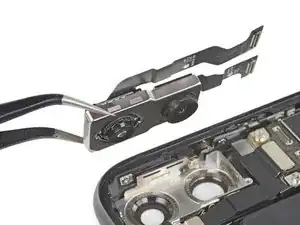

Dual primary camera:

  • True Tone flash
  • 4K video recording, up to 60 fps
  • Wide-angle module
    • 12 MP
    • ƒ/1.8 aperture
    • Optical image stabilization (OIS)
    • Autofocus with 100% Focus Pixels
    • Six-element lens
  • Ultra-wide module (120° field of view)
    • 12 MP
    • ƒ/2.4 aperture
    • Five-element lens

TrueDepth selfie camera with Face ID:

  • 12 MP
  • ƒ/2.2 aperture
  • 4K video recording, up to 60 fps
  • Retina Flash

Processor: A13 Bionic with 3rd-generation Neural Engine

  • 7 nm process
  • 6 cores

RAM: 4 GB

Storage: 64, 128, or 256 GB

Sensors:

  • Face ID
  • Barometer
  • Three-axis gyro
  • Accelerometer
  • Proximity sensor
  • Ambient light sensor

Wireless Connectivity:

  • 802.11ax Wi‑Fi 6 with 2x2 MIMO
  • Gigabit-class LTE with 2x2 MIMO and LAA
  • Bluetooth 5.0 wireless technology
  • Apple-designed U1 Ultra Wideband chip for spatial awareness
  • NFC

Dimensions: 5.94 × 2.98 × 0.33 in (150.9 × 75.7 × 8.3 mm)

Weight: 194 g (6.84 oz)

Colors: Black, Green, Yellow, Purple, (PRODUCT) RED, White
