iPhone "L-Shaped" Battery Adhesive Strips Replacement

Written By: Jeff Suovanen
  • Comments: 0
iPhone "L-Shaped" Battery Adhesive Strips Replacement

Difficulty

Moderate

Steps

9

Time Required

5 - 10 minutes

Introduction

Use this guide to correctly apply replacement battery adhesive strips for "L-shaped" iPhone batteries, including the dual-cell batteries in the iPhone X and XS Max, and the single-cell battery in the iPhone XS. Use the list below to check if your phone is compatible.

If your replacement battery doesn't come with adhesive strips pre-installed, or you're reusing your existing battery, these strips must be replaced. The strips are easily damaged if not applied correctly, so you may want to have a spare set of strips on hand when following this guide for the first time.

These adhesive strips are different from those in prior-generation iPhones due to the presence of the wireless charging coil. The coil lies directly underneath the battery, which is secured with four adhesive strips that are contoured around the coil to avoid damaging it.

Before you begin, you should have removed the battery by following a guide like the ones linked below:

To replace the battery adhesive strips in a different model iPhone, use one of the following guides:

  1. taEYBABt6CPcBwGM
    taEYBABt6CPcBwGM
    JsRLZKRqjsMw4Txh

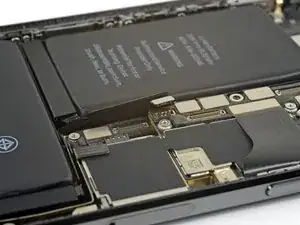

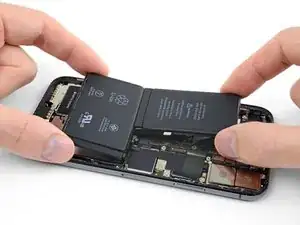

    • Before you begin, it's a good idea to test-fit your new battery in the iPhone.

    • This works best after reinstalling the speaker and Taptic Engine. Refer to the guide you used to remove your old battery.

    • Make sure the battery connector lines up correctly with its socket on the logic board.

    • Be careful not to touch the Face ID camera and sensor hardware along the top edge of the iPhone (the "notch" area).

  2. 3ODMiTpFQEdnWH6H
    3ODMiTpFQEdnWH6H
    QZvISUhI1AZol4Wm

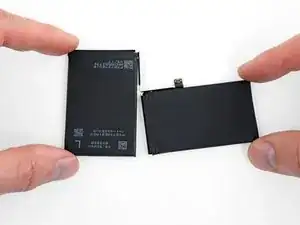

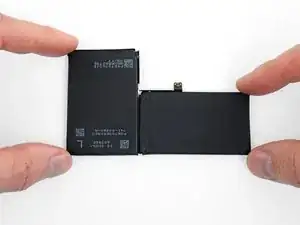

    • If your test-fit looks good, take the battery back out and place it face-down on your work surface (with the connector contacts facing up).

    • If your battery came with new adhesive strips already installed, skip to Step 7.

    • If you have a two-cell battery, make sure the cells are aligned as they would be when installed in the iPhone.

  3. RTrUt2PXyJN2MFi3
    RTrUt2PXyJN2MFi3
    4eQtACZInZ5FIP4C
    fC2YN2bkbr1a4OQQ

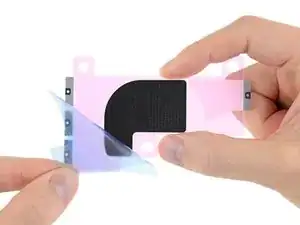

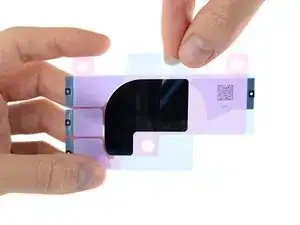

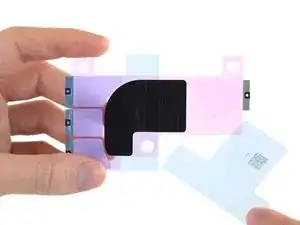

    • Peel off the blue plastic liner from your new set of adhesive strips, and discard it.

    • Some strips have a single large blue liner, while others have a two-piece liner. Either way, peel it all off.

    • Once the adhesive is exposed, be careful not to touch it.

  4. ePE3Yn3U2ZIixsHH
    ePE3Yn3U2ZIixsHH
    AVX6xtfRWHM33Zx3

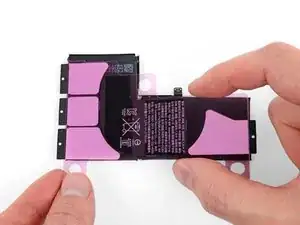

    • Once the adhesive sticks to the battery, you can't peel it off or reposition it—if you make a mistake, you'll have to start over with fresh adhesive strips.

    • Double-check the orientation of the adhesive strips, and make sure your battery is still lying face-down (with the connector contacts facing up).

    • Carefully position the adhesive strips over the battery, and stick them in place as shown.

    • Place the strips slightly off-center, very close to the long edge of the battery.

    • The black pull tabs at each end should protrude equally far over the top and bottom edges of the battery.

  5. WhDITGwvMA23CTPQ
    WhDITGwvMA23CTPQ
    SATWjv6gOmjVcVRi
    TFsXVSOLQNT2pFAv

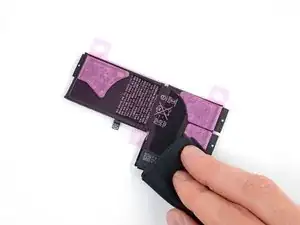

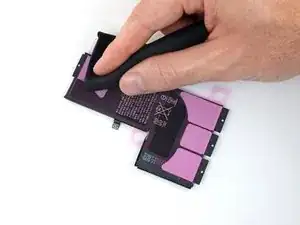

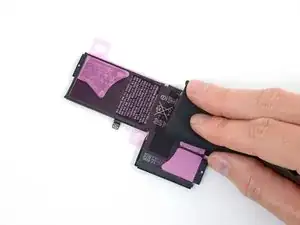

    • Use your fingers or a cloth to press the strips firmly into place on the battery.

    • Press in the center to adhere the black regulatory label to the battery as well.

  6. TbKbXNPjACTCL6PP
    TbKbXNPjACTCL6PP
    rfNrasXRCe4yMYEN
    c4IN5ghMAyQkLIXA

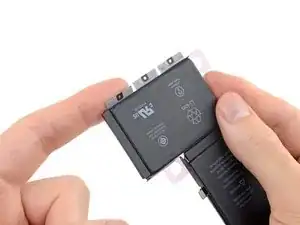

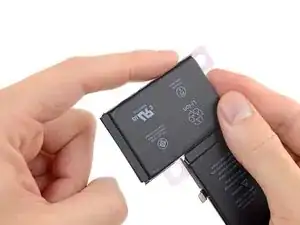

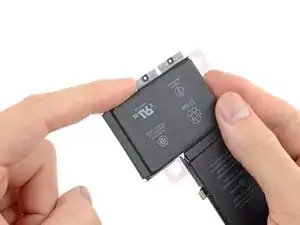

    • Roll your fingertip along the edges of the battery to stick down the black pull tab at the end of each adhesive strip.

    • Be sure to get all four tabs—three on the bottom edge, and one on the top.

  7. VeEysShiaZfBQgqe
    VeEysShiaZfBQgqe
    MehJVYb3kDMZPGeT
    dQJOEb6pmSKT1gar

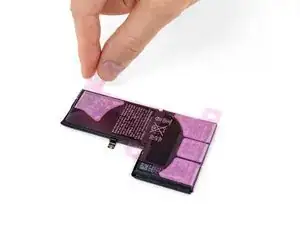

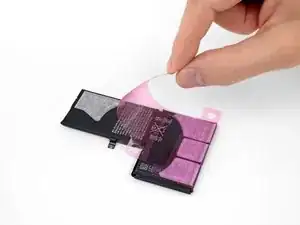

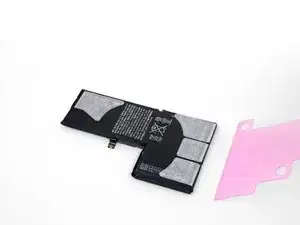

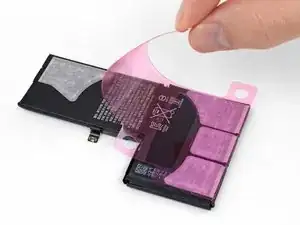

    • Peel off and discard the pink liner, fully exposing the adhesive strips.

  8. KMA1UaIfKd4nEJxF
    KMA1UaIfKd4nEJxF
    Ys1saPMYPoEpmWuU
    HTmVmrRSSa254FKL

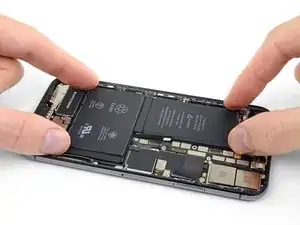

    • When installing the battery, be careful not to touch the Face ID camera and sensor hardware along the top edge of the iPhone (the "notch" area).

    • Carefully position the battery and set it into the iPhone.

    • Make sure the battery connector lines up with its socket on the logic board.

    • It's okay to temporarily connect the battery to make sure it lines up correctly, but make certain it's disconnected before reassembling your iPhone.

  9. 3g5FHDjPFIRxYhVF
    3g5FHDjPFIRxYhVF
    X5GBnVmNUIAo16lc

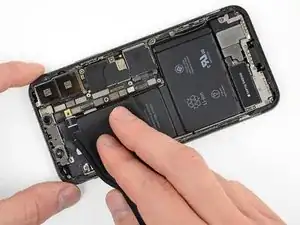

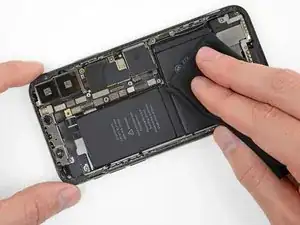

    • Press the battery firmly onto the adhesive strips to secure it in place.

    • If your battery came with an additional plastic liner on the top, peel it off and discard it before closing up your phone.
