Reparaturanleitungen

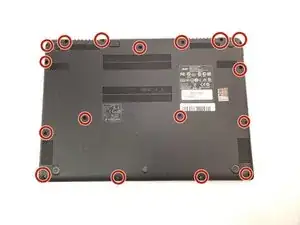

Back Panel

Back Panel

 en

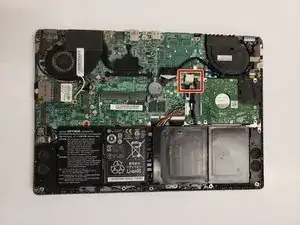

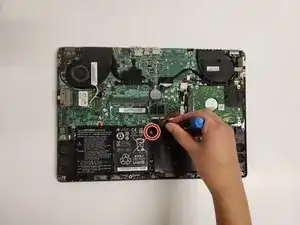

Battery

Battery

 en

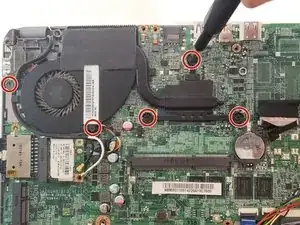

Fan

Fan

 en
Hard Drive

Hard Drive

 en

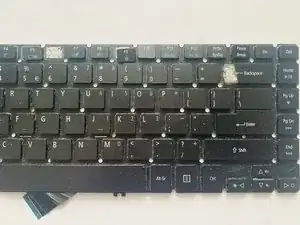

Keyboard

Keyboard

 en

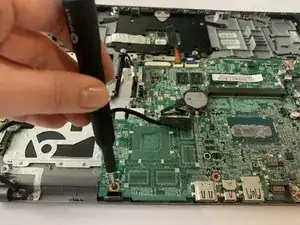

Motherboard

Motherboard

 en
Screen

Screen

 en
Secondary Cooling Fan

Secondary Cooling Fan

 en

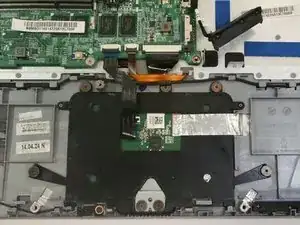

Touchpad

Touchpad

 en

Werkzeuge

Es werden einige allgemeine Werkzeuge verwendet, um an diesem Gerät zu arbeiten. Du wirst nicht jedes Werkzeug für jeden Vorgang benötigen.

Troubleshooting

If you are having difficulties with the Acer Aspire V5-473P-5602, please visit the troubleshooting page.

Background and Identification

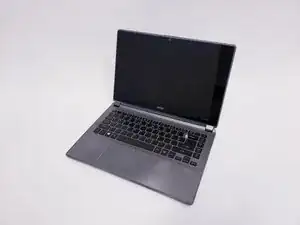

The Acer Aspire V5-473P-5602 has a thin , sleek looking design that comes with three different colours and a built-in 8.1 Window version. The notebook is featured in this page has a brush metal-looking top with “acer” logo etched on top.

When opened, the lower lid features the chiclet or island-style keyboard with a 3.5 x 2-inch buttonless touchpad.

The 1920 x 1080 touchscreen has Active Matrix TFT Color LCD display, which allows users to watch movie with great clarity and display.

The original sale price was at $645.37USD.

The laptop is good for general purposes such as browsing, office or school tasks and comes at a fairly reasonable price.

Specifications

Operating System

  • Linpus™ Linux®

Processor

  • Processor Manufacturer: Intel®
  • Processor Type: Core™ i3
  • Processor Model: i3-4010U
  • Processor Speed: 1.70 GHz
  • Processor Core: Dual-core (2 Core™)

Display and Graphics

  • Graphics Controller Manufacturer: Intel®
  • Graphics Controller Model: HD 4400
  • Graphics Memory Technology: DDR3L SDRAM
  • Graphics Memory Accessibility: Shared
  • Screen Size: 35.6 cm (14")
  • Display Screen Type: LCD
  • Screen Mode: HD
  • Backlight Technology: LED
  • Screen Resolution: 1920 x 1080

Interfaces and Ports

  • HDMI: Yes
  • Number of USB 2.0 Ports: 2
  • Number of USB 3.0 Ports: 1
  • Total Number of USB Ports: 3
  • Network (RJ-45): Yes
  • Acer Converter Port: Yes

Memory and Storage

  • Standard Memory: 4 GB
  • Memory Technology: DDR3L SDRAM
  • Number of Total Memory Slots: 1
  • Memory Card Reader: Yes
  • Memory Card Supported: SD
  • Total Hard Drive Capacity: 500 GB
  • Hard Drive Interface: Serial ATA

Network

  • Wireless LAN Standard: IEEE 802.11a/b/g/n
  • Ethernet: Gigabit Ethernet
  • Bluetooth Standard: Bluetooth 4.0 + HS

Built-in Devices

  • Microphone: Yes
  • TouchPad: Yes

Battery

  • Number of Cells: 4-cell
  • Battery Chemistry: Lithium Polymer (Li-Polymer)
  • Battery Capacity: 3560 mAh
  • Maximum Battery Run Time: 8 Hours
  • Maximum Power Supply Wattage: 65 W

Source: Aspire V5-473 Specifications
